Inspection Procedure

Check voltage between terminals Ts and E ₁ of DLC1.
CHECK:
1. Turn the ignition switch ON.
2. Measure the voltage between terminals Ts and E₁ of DLC1.

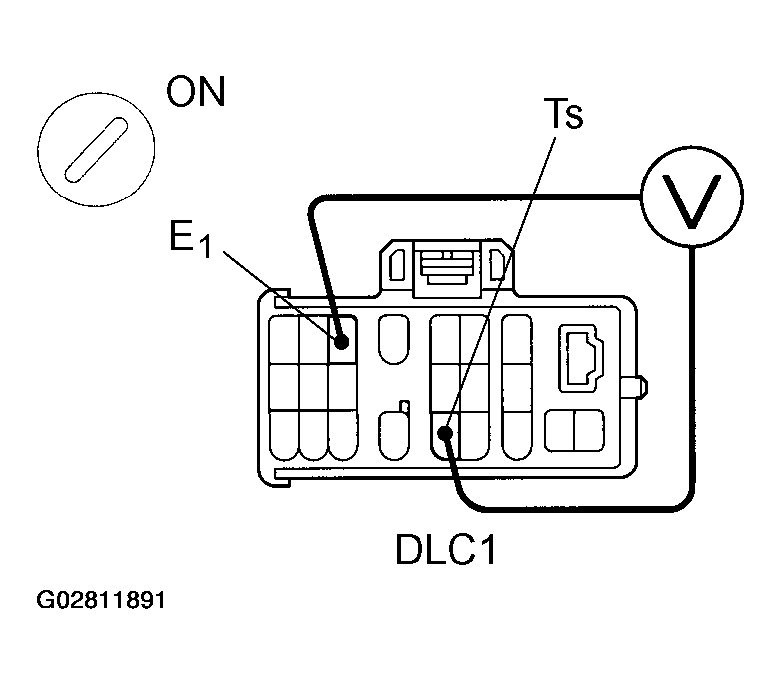

  Fig 1: Checking Voltage Between Terminals Ts And E₁ Of DLC1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OK: Voltage: 10 - 14 V

OK: If ABS warning light does not blink even after Ts and E ₁ are connected, ECU may be defective.

NG: Go To Next Step
Check for open and short circuit in harness and connector between ABS & TRAC ECU and DLC1, DLC1 and body ground. See HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE .
NG: Repair or replace harness or connector.

OK: Check and replace ABS & TRAC ECU.
