Body & Frame: Windows: Windshield: Removal

1. Using a screwdriver, remove the front door scuff plate.
   NOTE: Tape the screwdriver tip before use.
   Fig 1: Identifying Front Door Scuff Plate

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Employ the same manner described above to the other side.

Using a screwdriver, remove the front door opening covers.

1. Using a screwdriver, remove the front pillar garnishes.
   NOTE: Tape the screwdriver tip before use.
   Fig 2: Identifying Front Pillar Garnish Clip

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Employ the same manner described above to the other side.

1. Using a screwdriver, remove the lens.
   NOTE: Tape the screwdriver tip before use.
2. Open the box cover.
3. Remove the 3 screws and map light assembly, then disconnect the connectors.

Fig 3: Removing Screws & Map Light Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 screws and sun visor, then disconnect the connector.
2. Employ the same manner described above to the other side.

Remove the 2 screws and 2 sun visor holders.

1. w/Electrochromatic mirror system: Disconnect the connectors.
2. Remove the Torx screw and inner rear view mirror.
Fig 4: Removing Inner Rear View Mirror
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 2 nuts and 2 wiper arms.

1. Remove the hood to cowl top seal.
2. Remove the 2 clips and cowl louvers.

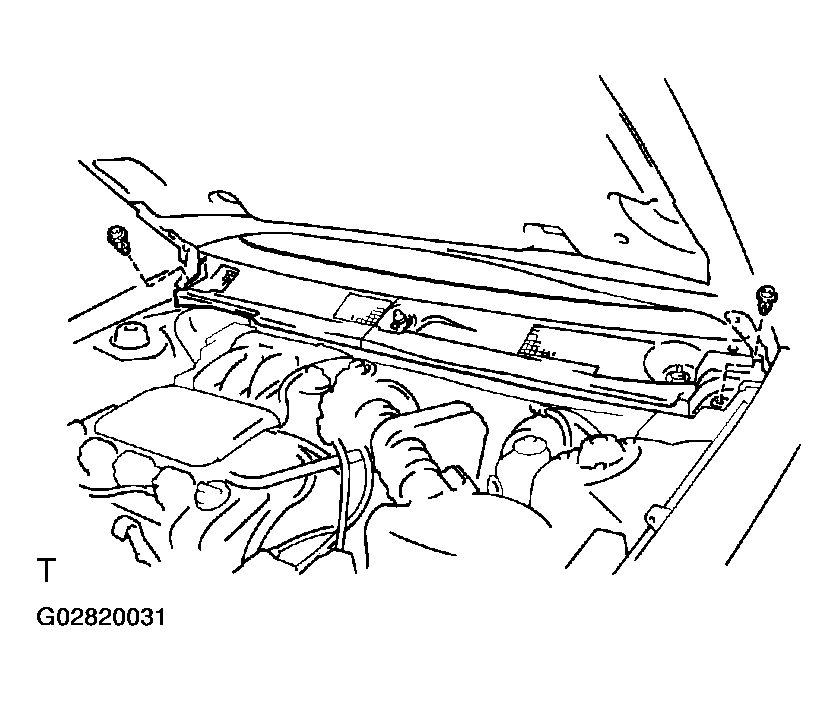

Fig 5: Removing Clips & Cowl Louvers
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a knife, cut off the molding as shown in Fig 6.
   Fig 6: Cutting Off Molding Using Knife

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE: Do not damage the body with the knife.
2. Remove the remaining molding.

1. Push piano wire through between the body and glass from the interior.
2. Tie both wire ends to wooden blocks or similar objects.
   Fig 7: Installing Piano Wire To Remove Windshield Glass

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE: Apply protective tape to the outer surface to keep the surface from being scratched.
   NOTE: When separating the glass, take care not to damage the paint, and exterior ornaments. To prevent scratching the safety pad when removing the windshield, place a plastic sheet between the piano wire and safety pad.
3. Cut the adhesive by pulling the piano wire around it.
Fig 8: Cutting Adhesive Using Piano Wire
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the glass.
