Quarter Window Glass: Removal

Using a screwdriver, remove the front door scuff plate.

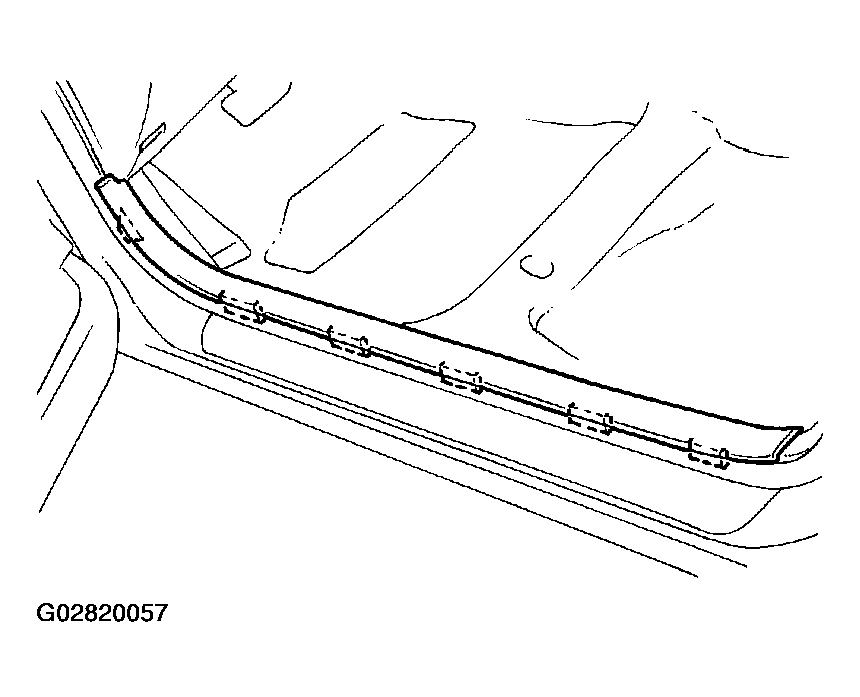

Fig 1: Removing Front Door Scuff Plate

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a screwdriver, remove the front door opening cover.

Using a screwdriver, remove the front pillar garnish.

Fig 2: Removing Front Pillar Garnish

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

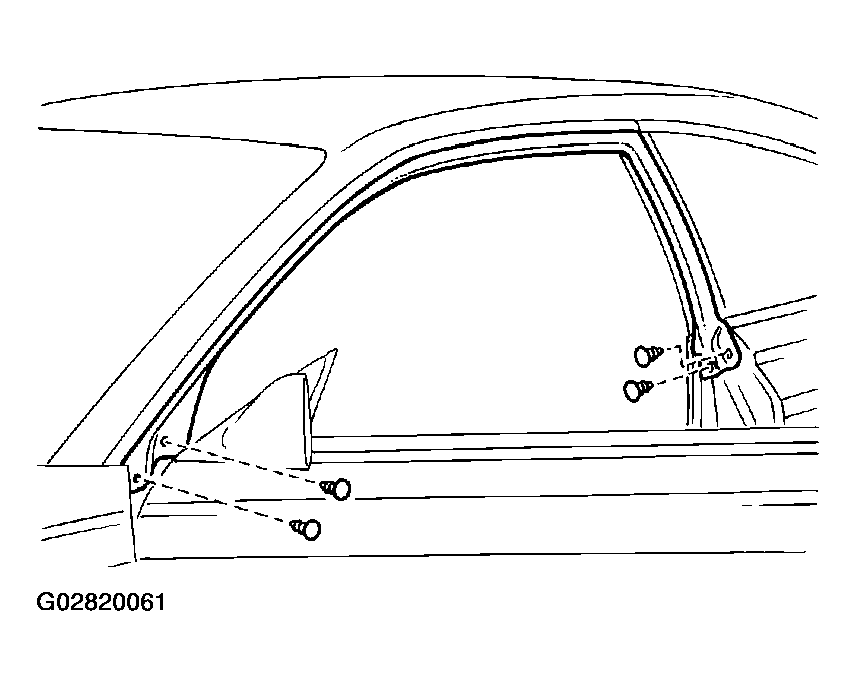

Remove the bolt and hinge.

1. Using a screwdriver, remove and open the 2 screw covers of the rear assist grip.
   Fig 3: Removing Rear Assist Grip

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE: Tape the screwdriver tip before use.
2. Remove the 2 screws and rear assist grip.

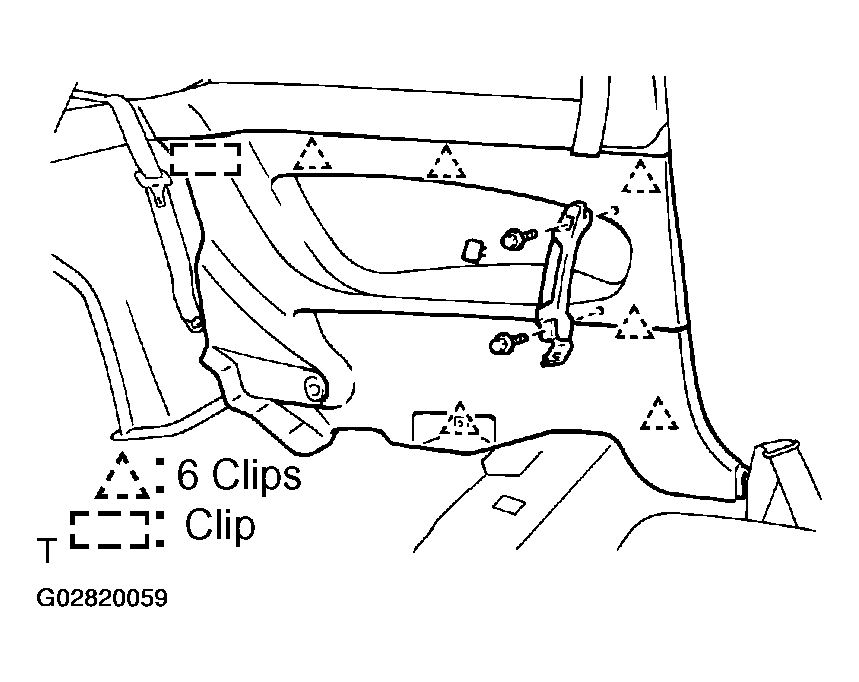

3. Using a screwdriver, remove the quarter trim panel.

1. Remove the bolt and front seat outer belt shoulder anchor.
Fig 4: Removing Seat Outer Belt Shoulder Anchor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove a screw and coat hook.
3. Remove a clip.

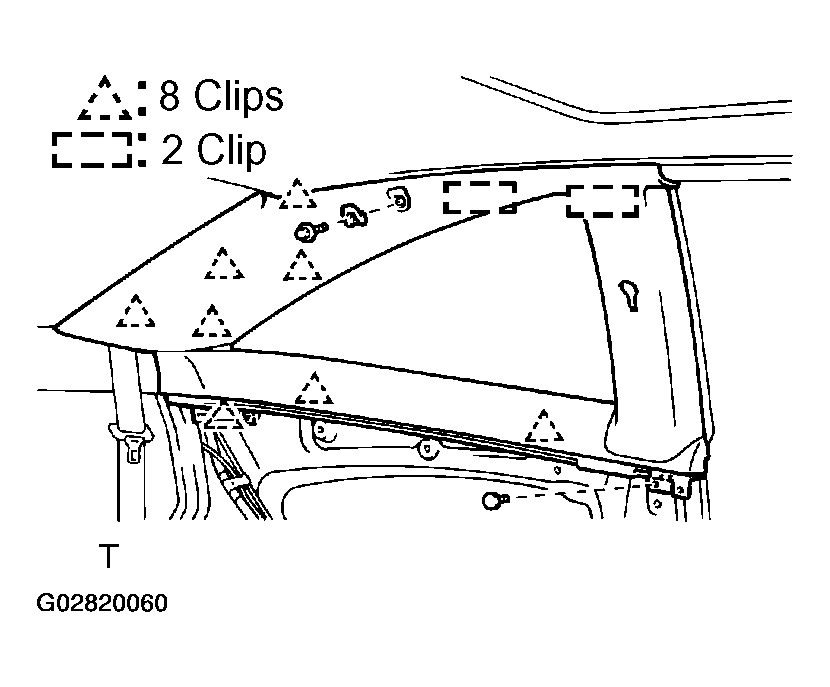

4. Using a screwdriver, remove the roof side inner garnish.

1. Remove the 4 clips.

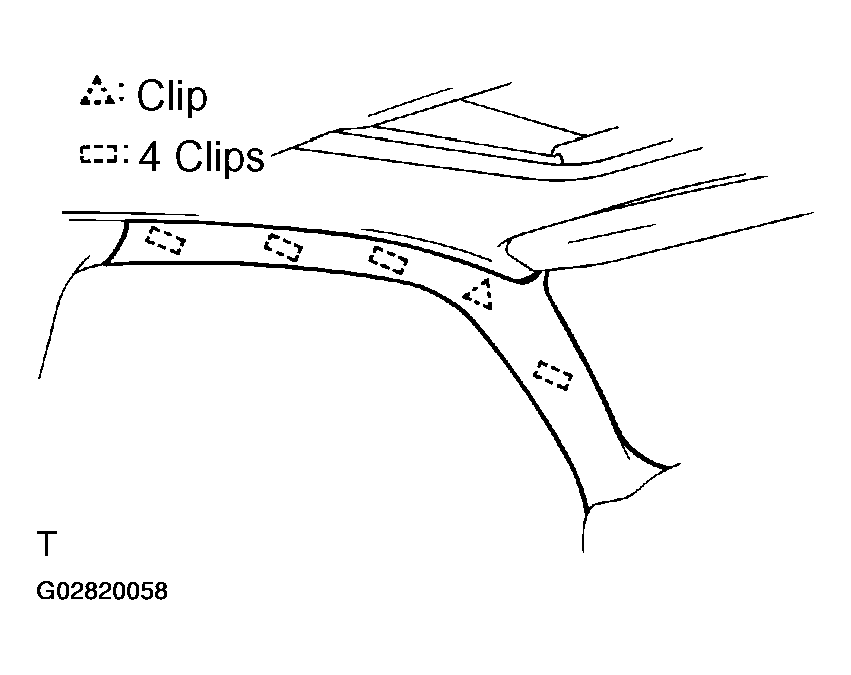

   Fig 5: Removing Roof Side Rail Weatherstrip

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a knife, cut the caulking sponge and remove the roof side rail weatherstrip.

1. Using a knife, cut off the molding as shown in Fig 6.
   NOTE: Do not damage the body with knife.
2. Remove the remaining molding.
3. Disconnect the connector.

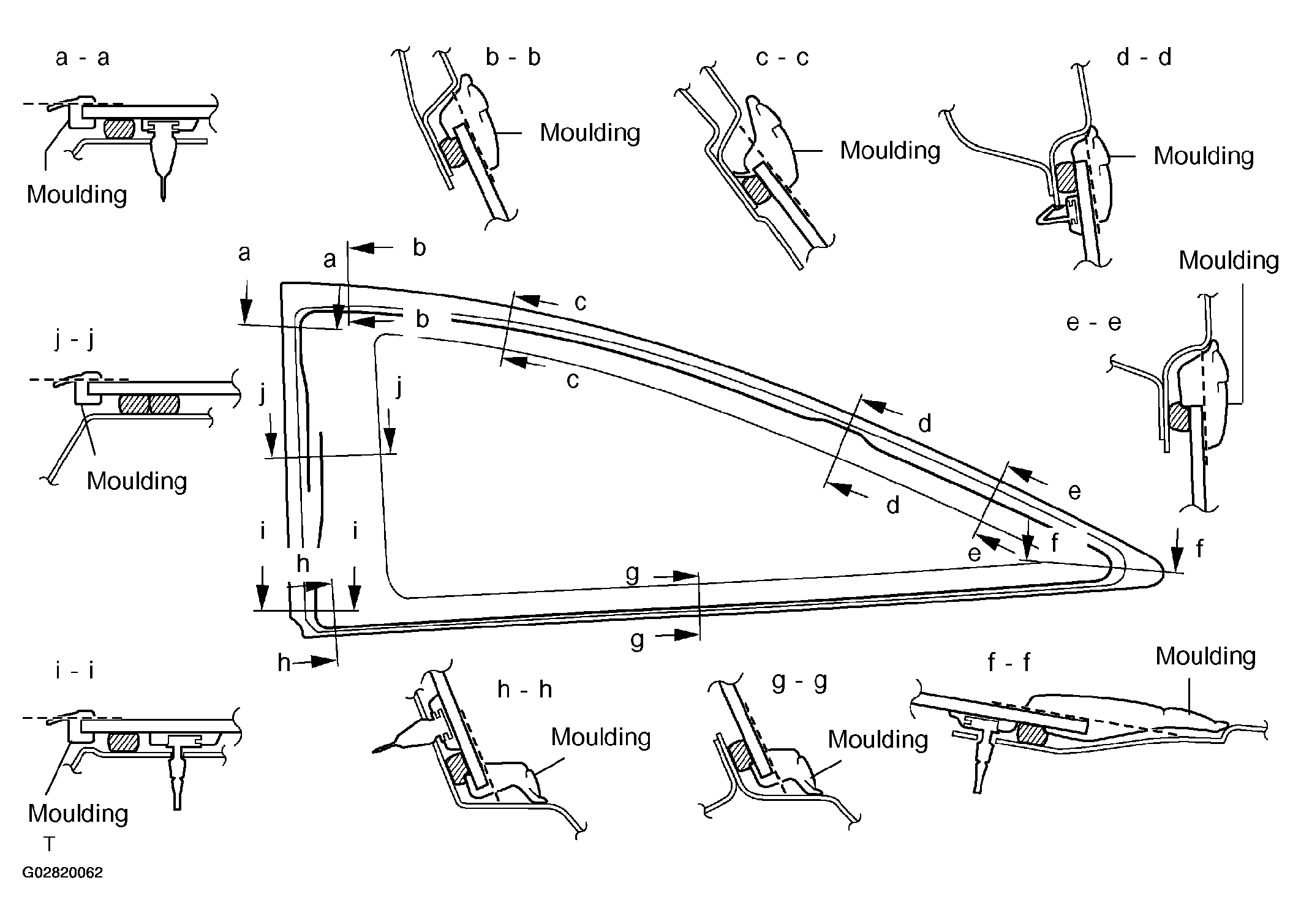

   Fig 6: Identifying Cutting Sections Of Molding

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Push a piano wire through from the interior.

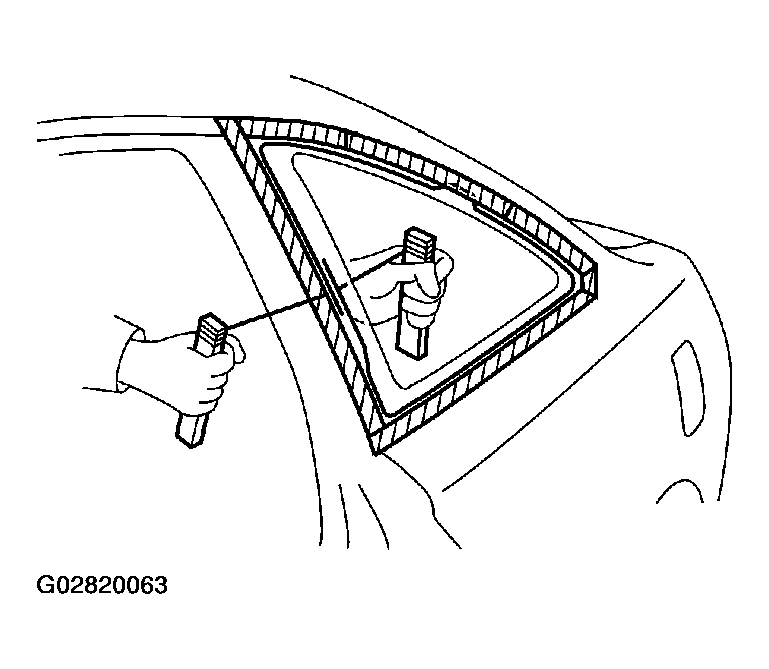

Fig 7: Separating Quarter Window
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Tie both wire ends to wooden blocks or similar objects.
   NOTE: Apply protective tape to the outer surface to keep the surface from being scratched.
   NOTE: When separating the glass, take care not to damage the paint and exterior.
6. Cut the adhesive by pulling the piano wire around it.
   NOTE: Cut the adhesive areas as shown in Fig 8, leaving the adhesive where the clips are.

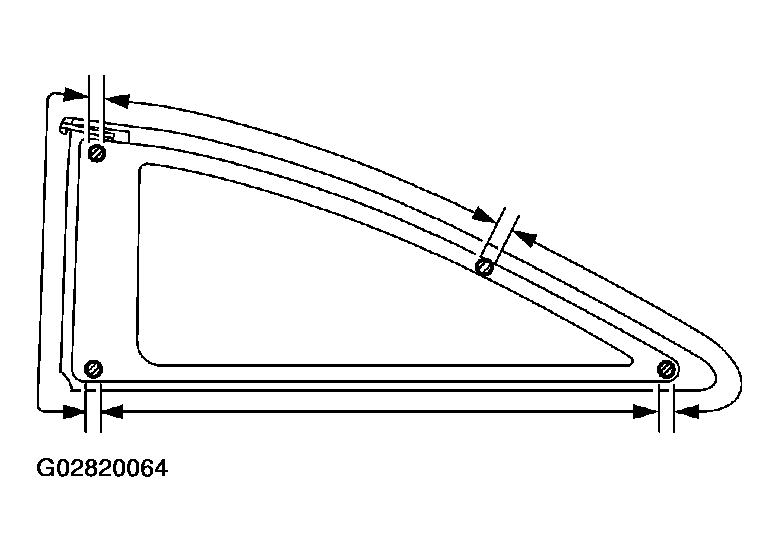

   Fig 8: Identifying Areas To Cut Adhesive

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Push the piano wire through as shown in Fig 9, cut off the adhered parts to the clips.

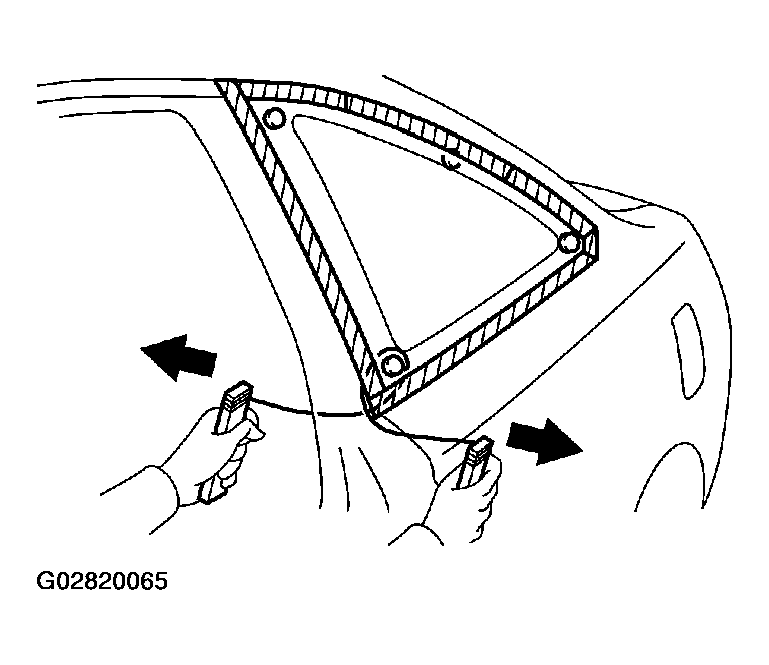

Fig 9: Cutting Off Adhered Area Of Glass Between Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Remove the glass.
