Quarter Window Glass: Installation

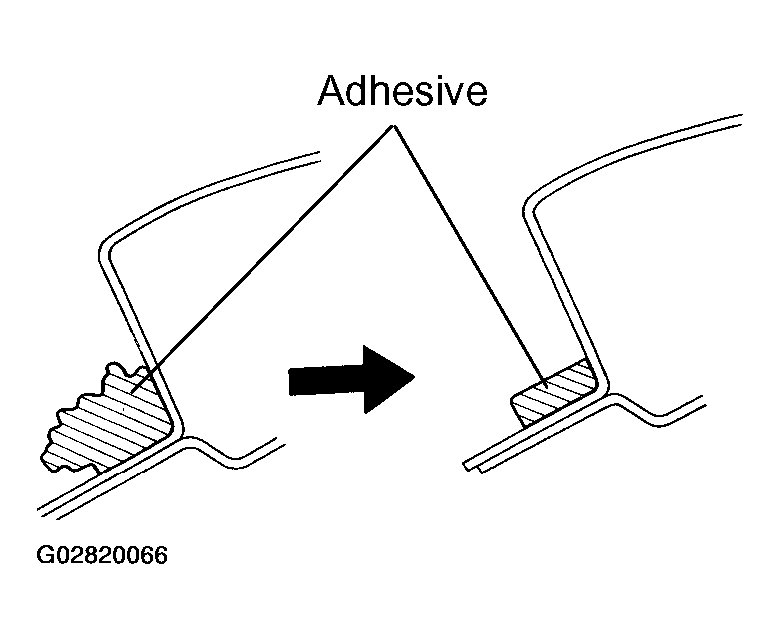

1. Using a knife, cut away any rough areas on the body.
   NOTE: Leave as much of the adhesive on the body as possible.
2. Clean the cutting surface of the adhesive with a piece of shop rag saturated in cleaner.

Fig 1: Shaping Contact Surface Of Adhesive On Body

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

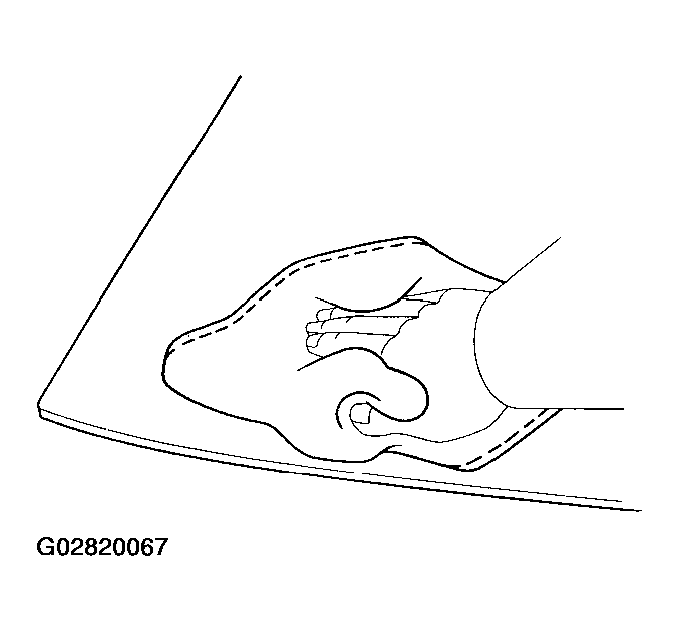

Using a cleaner, clean the contact surface which is black-colored area around the entire glass rim.

Fig 2: Cleaning Contact Surface Around Entire Glass Rim

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

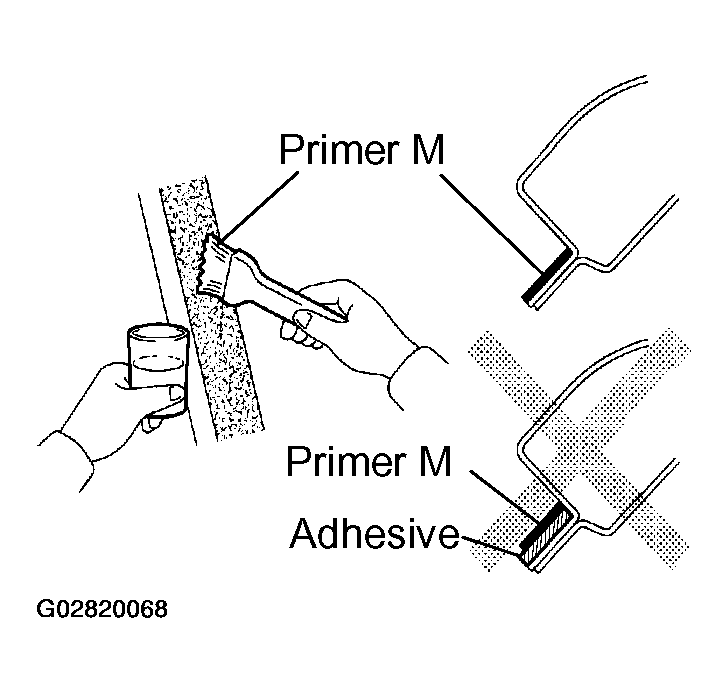

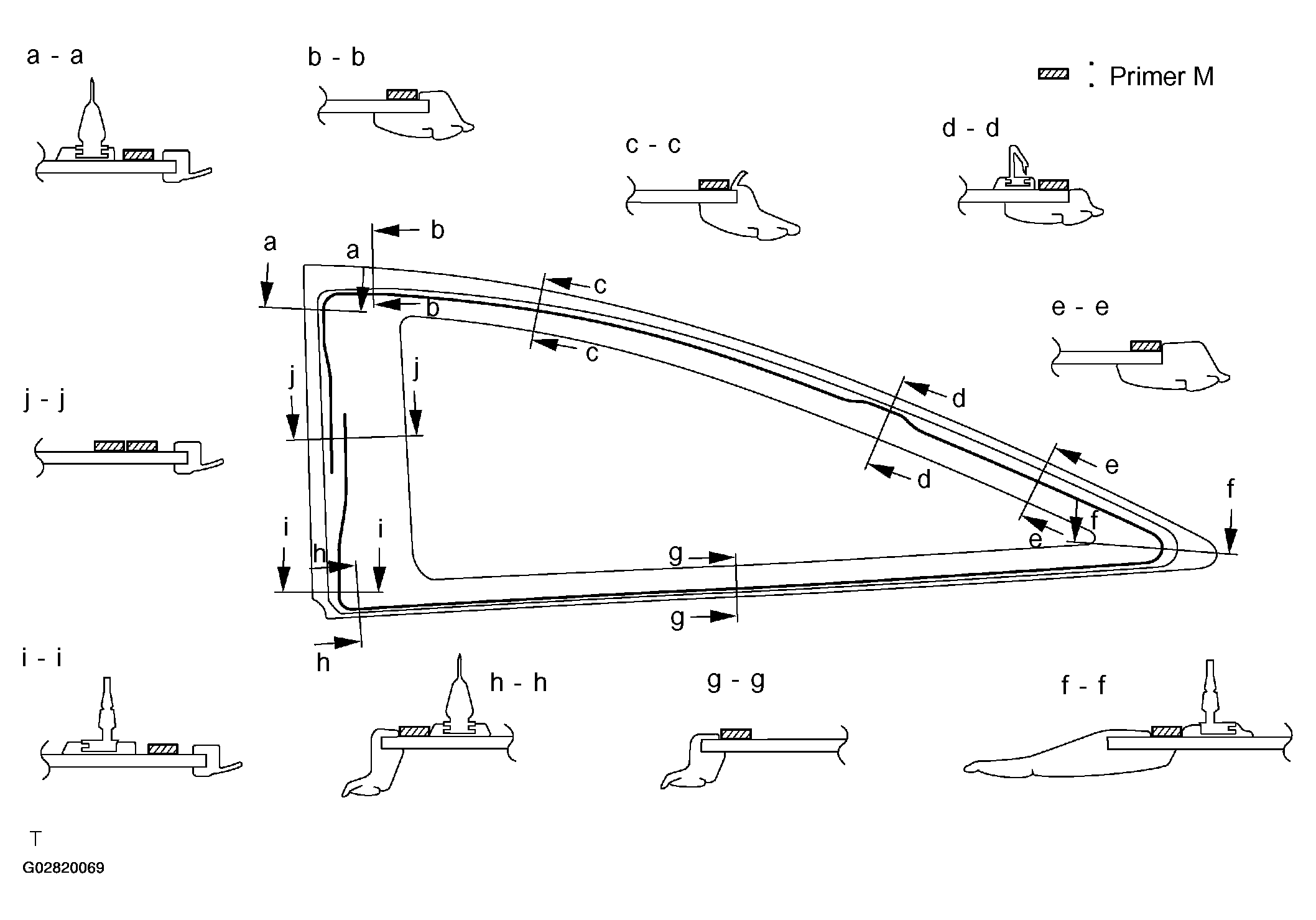

Using a brush, coat Primer "M" to the exposed part of body on the vehicle side.

Fig 3: Coating Primer "M" To Exposed Part Of Body

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a brush or sponge, coat the edge of the glass and the contact surface with Primer "G" as shown in Fig 4.
   Fig 4: Applying Primer "G" On Contact Surface

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. When the primer is coated wrongly to the area other than the specified, wipe it off with a clean shop rag before the primer dries.

1. Cut off the tip of the cartridge nozzle.

   Part No. 08850-00801 or equivalent.

   NOTE: After cutting off the tip, use all adhesive within the time described in ADHESIVE USAGE TIME  table.
   ADHESIVE USAGE TIME



   Temperature	Tackfree Time
   35°C (95°F)	15 Minutes
   20°C (68°F)	100 Minutes
   5°C (41°F)	8 Hours

2. Load the cartridge into the sealer gun.

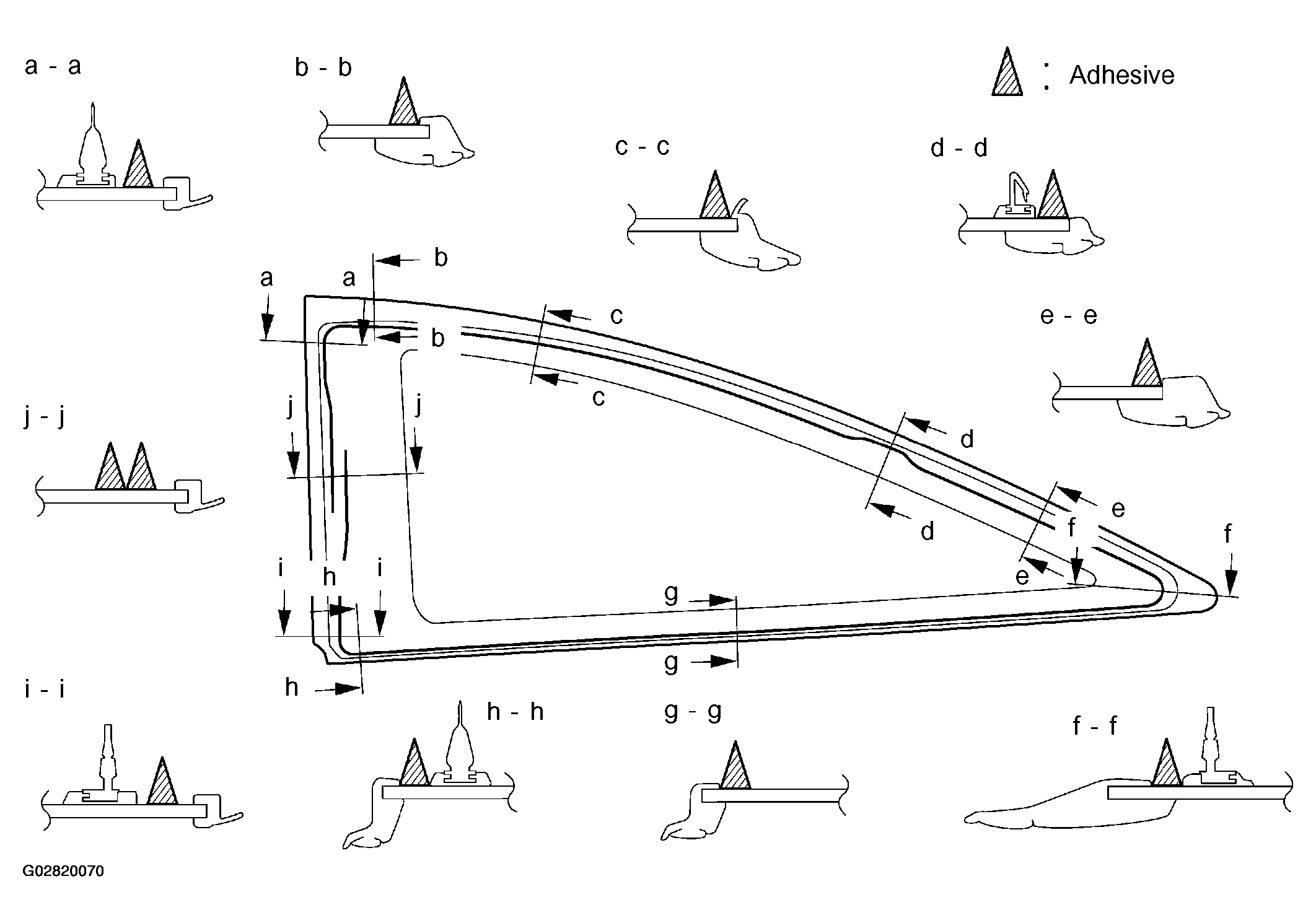

3. Coat the new glass with adhesive as shown in Fig 5.

   Adhesive height: 12.0 mm (0.472 in.)

   Adhesive width: 8.0 mm (0.315 in.)

Fig 5: Identifying Adhesive Coating Locations

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install new glass to the body.
2. Hold the glass in place securely with a protective tape or equivalent until the adhesive hardens.

1. Conduct a leak test after the hardening time has elapsed.
2. Seal any leak with sealant.

   Part No. 08833-00030 or equivalent.

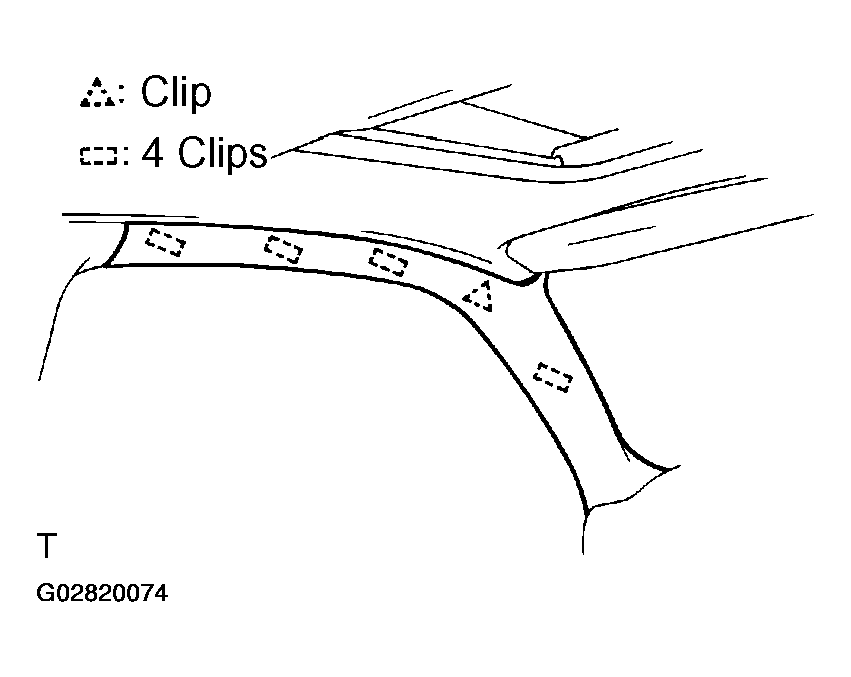

1. Apply the caulking sponge to the roof side rail weatherstrip.
2. Install the roof side rail weatherstrip with the 4 clips.
Fig 6: Installing Roof Side Rail Weatherstrip
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

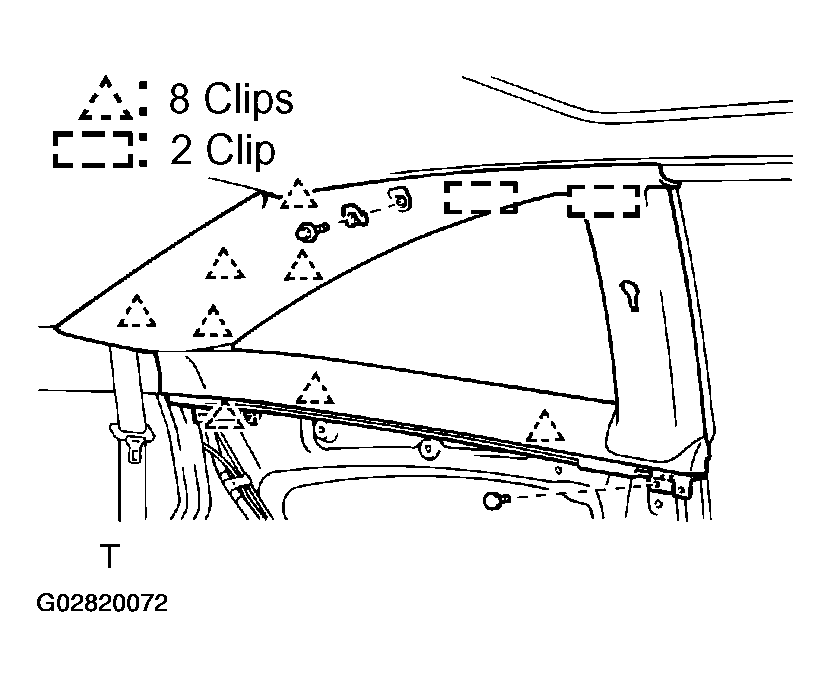

1. Install the roof side inner garnish and clip.
2. Install the coat hook with the screw.

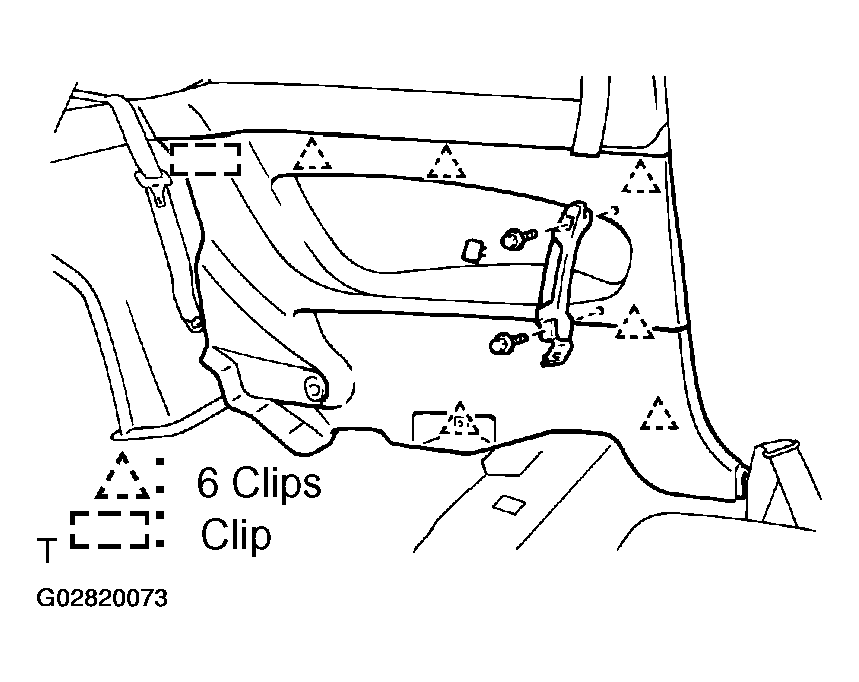

   Fig 7: Installing Roof Side Inner Garnish & Coat Hook

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the front seat outer belt shoulder anchor with the bolt.

   Torque: 42 N.m (430 kgf.cm, 31 ft.lbf)

1. Install the quarter trim panel.
2. Install and close the 2 screw covers of the rear assist grip.
Fig 8: Installing Rear Assist Grip
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the rear assist grip with the 2 screws.

Install the hinge with the bolt.

Torque: 19 N.m (194 kgf.cm, 14 ft.lbf)

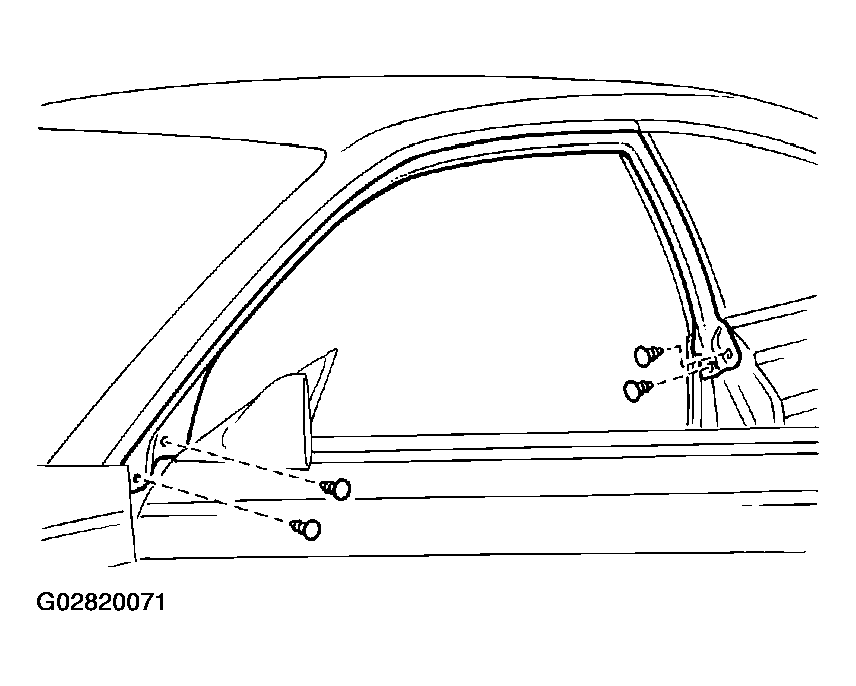

Install the front pillar garnish to the body.

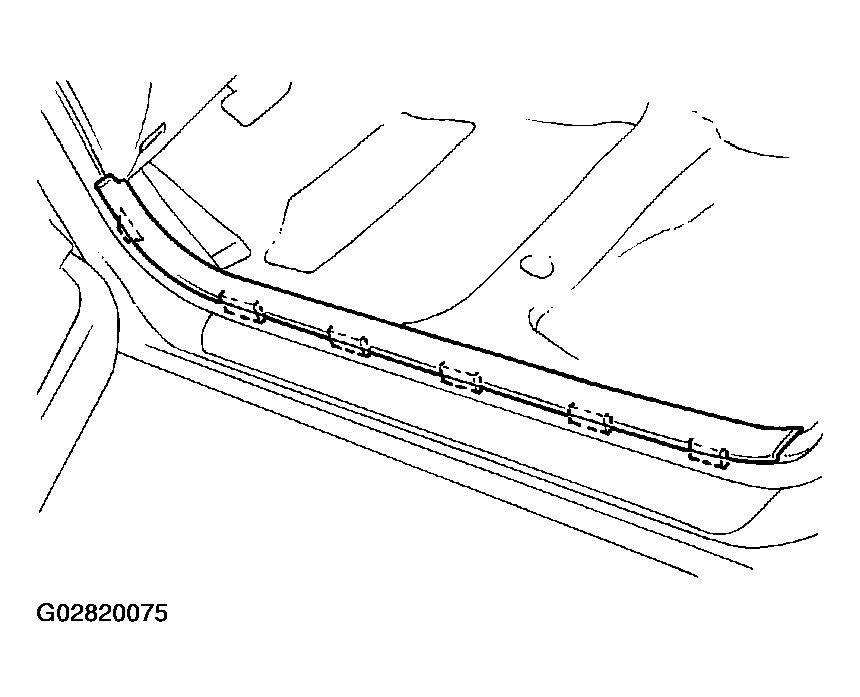

Install the front door scuff plate to the body.

Fig 10: Identifying Front Door Scuff Plate

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
