Back Window Glass: Removal

Remove the 2 bolts and 2 hinges.

1. Using a screwdriver, remove the front door scuff plate.

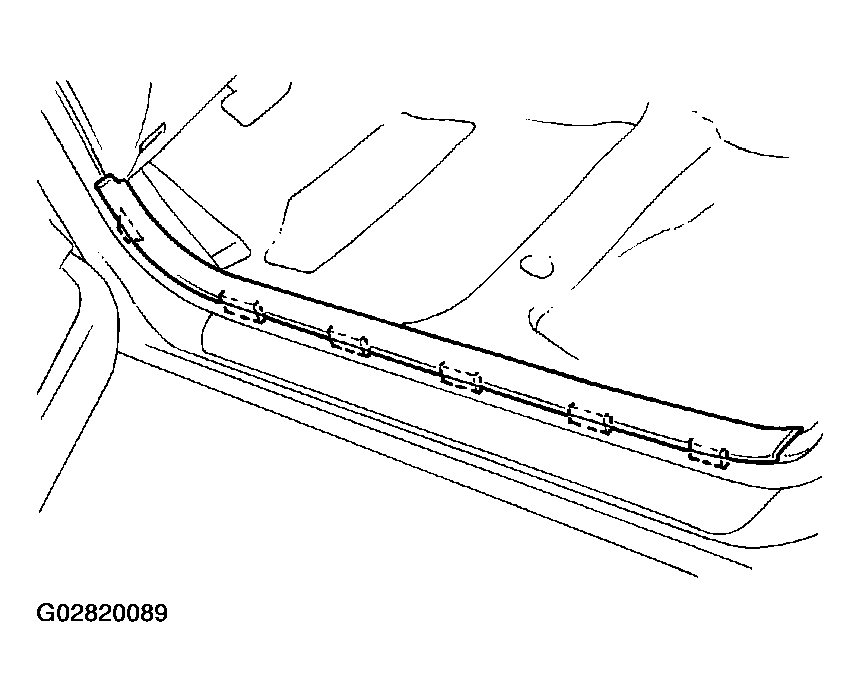

   Fig 1: Removing Front Door Scuff Plate

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE: Tape the screwdriver tip before use.
2. Employ the same manner described above to the other side.

1. Using a screwdriver, remove and open the 2 screw covers of the rear assist grip.
   NOTE: Tape the screwdriver tip before use.
2. Remove the 2 screws and rear assist grip.

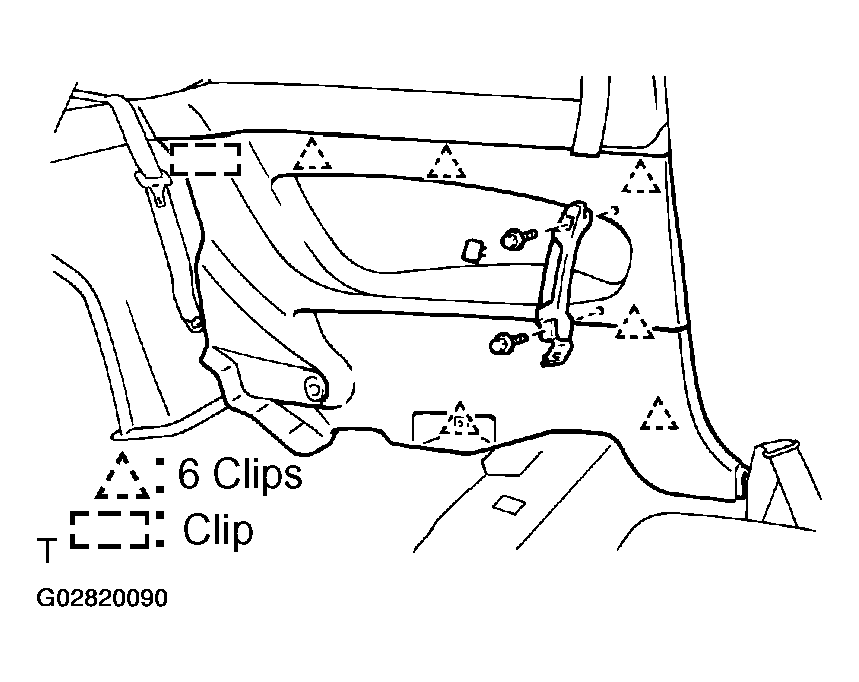

Fig 2: Removing Rear Assist Grip
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a screwdriver, remove the quarter trim panel.
   NOTE: Tape the screwdriver tip before use.
4. Employ the same manner described above to the other side.

1. Remove the front seat outer belt shoulder anchor and bolt.
2. Remove a screw and coat hook.
   Fig 3: Removing Coat Hook

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove a clip.
4. Employ the same manner described above to the other side.

REMOVE HIGH-MOUNTED STOP LIGHT

1. Push on the both sides of the cover to disengage the claws by your hand and remove the cover as shown in Fig 4.

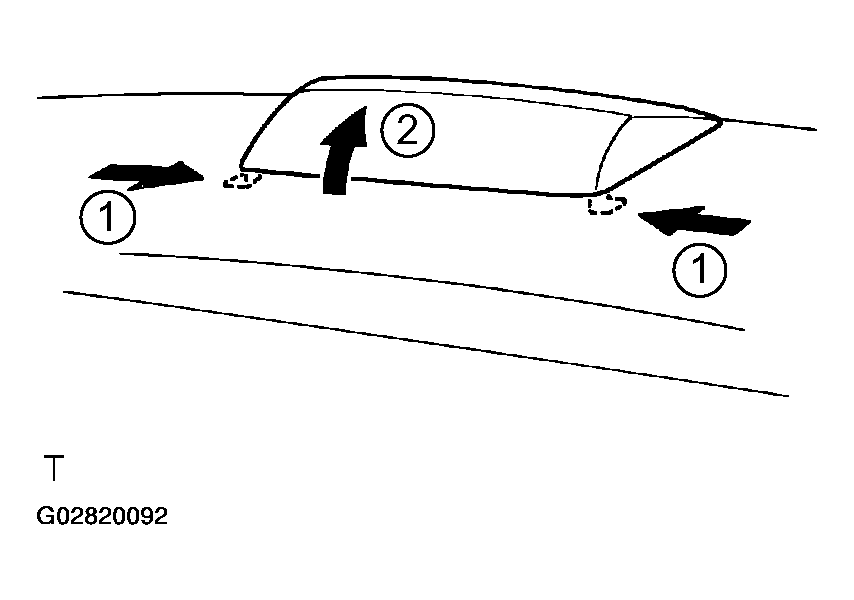

Fig 4: Disengaging Claws On High-Mounted Stop Light
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the stop light, then disconnect the connector.

1. CANADA:

   Remove the 3 CRS tether anchor covers and tether anchor brackets.

2. Remove the 3 clips.
3. Using a screwdriver, remove the seat belt bezels from the package tray trim.

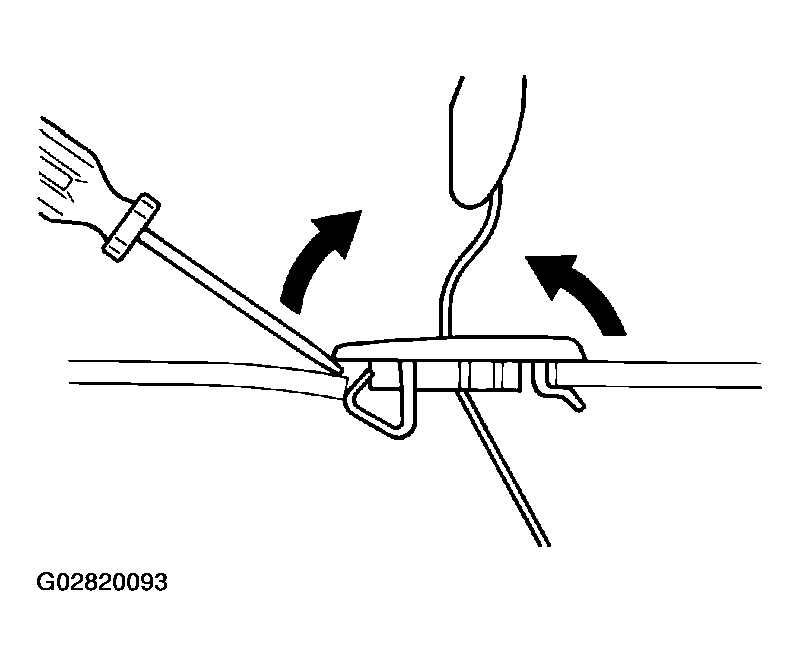

   Fig 5: Removing Seat Belt Bezels From Package Tray Trim

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE: Tape the screwdriver tip before use.
4. Pull the package tray trim forward to remove it.

Remove the 9 clips and room partition trim.

Fig 6: Removing Room Partition Trim

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

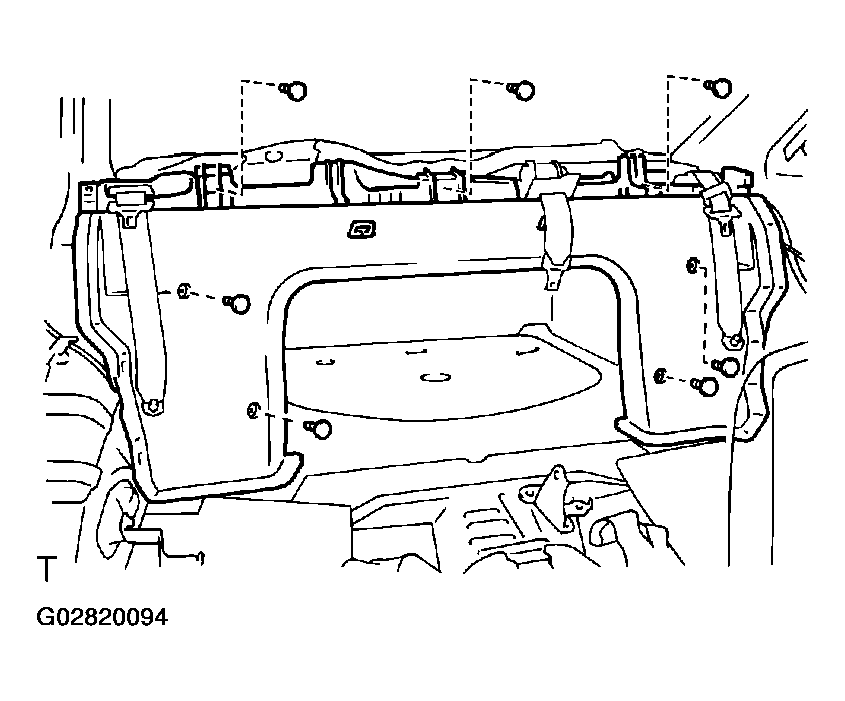

1. Remove the 2 bolts and rear seat outer belts LH and RH.
2. Remove the upper back trim.

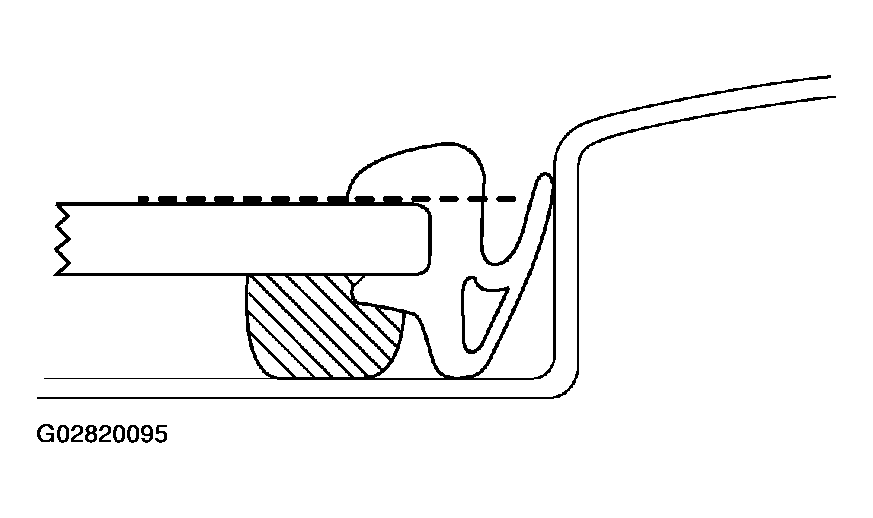

1. Using a knife, cut off the molding as shown in Fig 7.
   Fig 7: Cutting Off Molding

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE: Do not damage the body with the knife.
2. Remove the remaining molding.

1. Disconnect the connector.
2. Push piano wire through from the interior.
Fig 8: Attaching Wood Blocks To Ends Of Piano Wire
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Tie both wire ends to wooden blocks or similar objects.
   NOTE: Apply protective tape to the outer surface to keep the surface from being scratched.
   NOTE: When separating the glass, take care not to damage the paint and exterior.

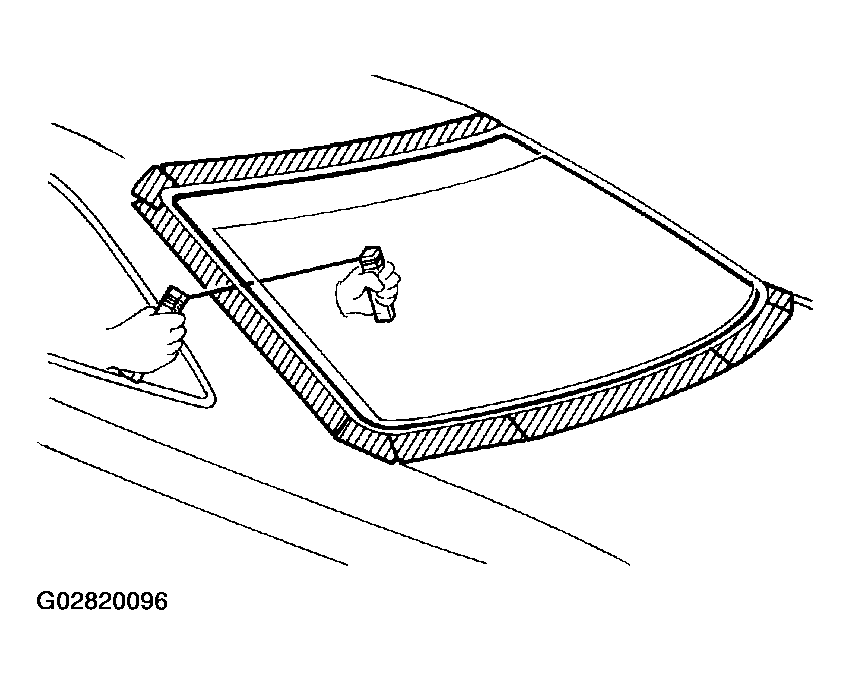

4. Cut the adhesive by pulling the piano wire around it.

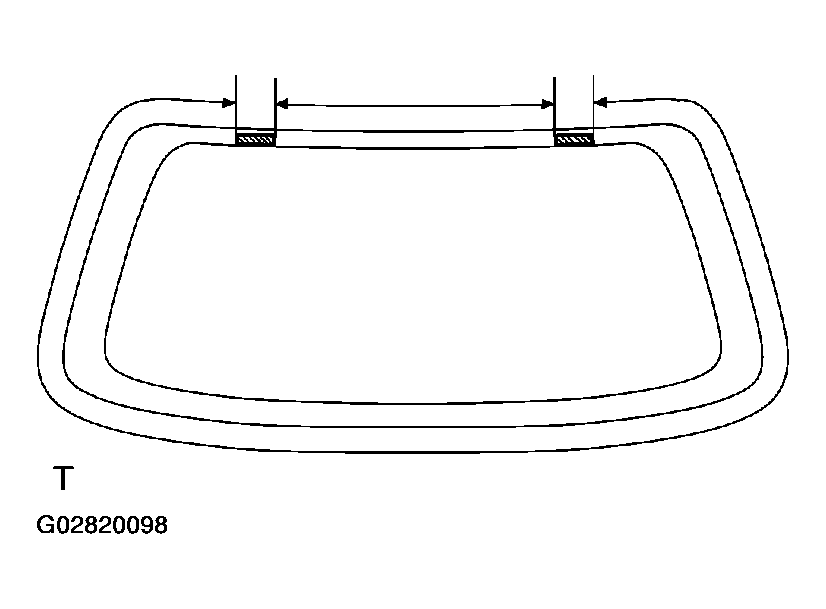

   NOTE: Cut the adhesive areas as shown in Fig 9, leaving the adhesive where the stoppers are.
   Fig 9: Cutting Adhesive Areas Around Stoppers

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

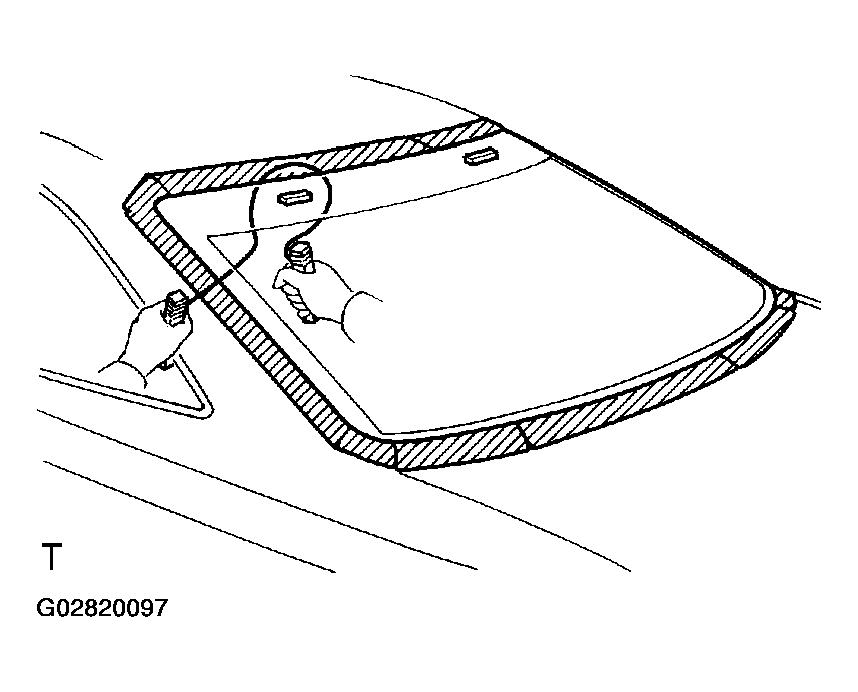

5. Let the piano wire pass as shown in Fig 10, cut off the adhered parts to the stoppers.
   Fig 10: Letting Piano Wire Pass Close To Stoppers

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE: Do not damage the glass stoppers.
6. Remove the glass.
