Back Window Glass: Components

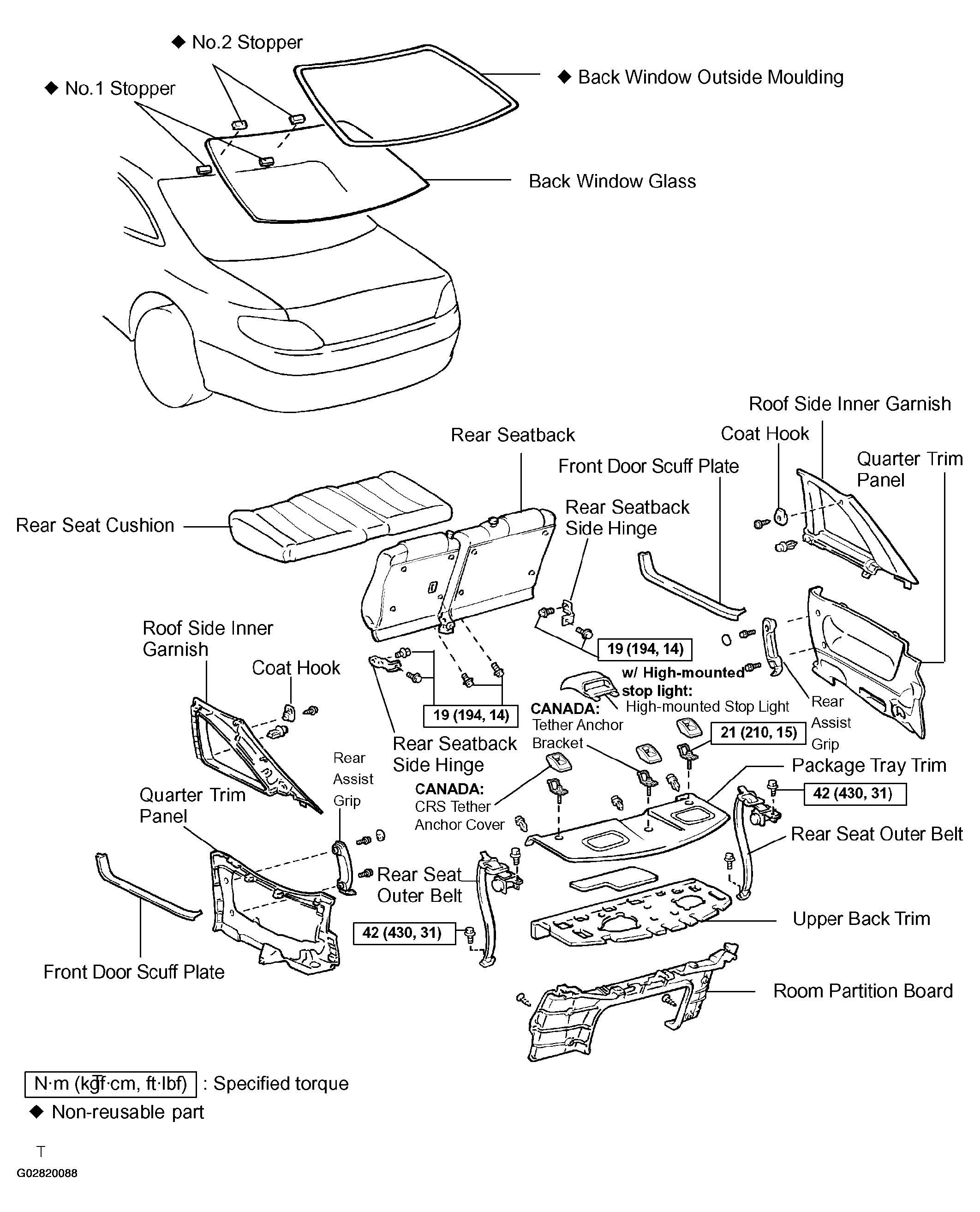

Fig 1: Locating Back Window Glass Components

G02820088

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
