Home >> Toyota >> 2003 >> Camry Solara SLE, 2D Convertible >> Repair and Diagnosis >> Body & Frame >> Seats >> Power Seat Control System >> Location

Power Seat Control System: Location

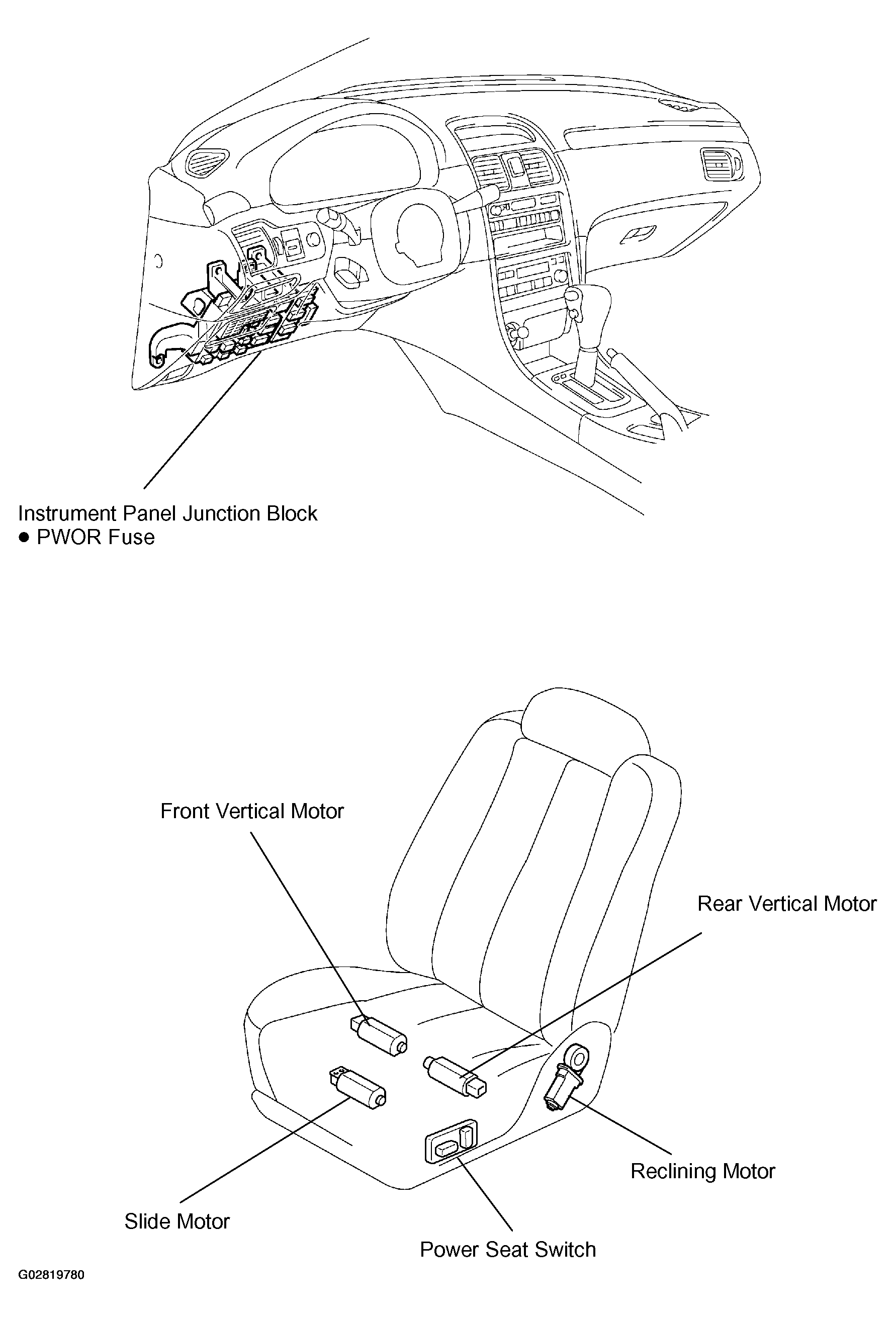

Fig 1: Locating Power Seat Control System Component

G02819780

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
