Power Seat Control System: Inspection

  1. INSPECT DRIVER'S POWER SEAT SWITCH CONTINUITY

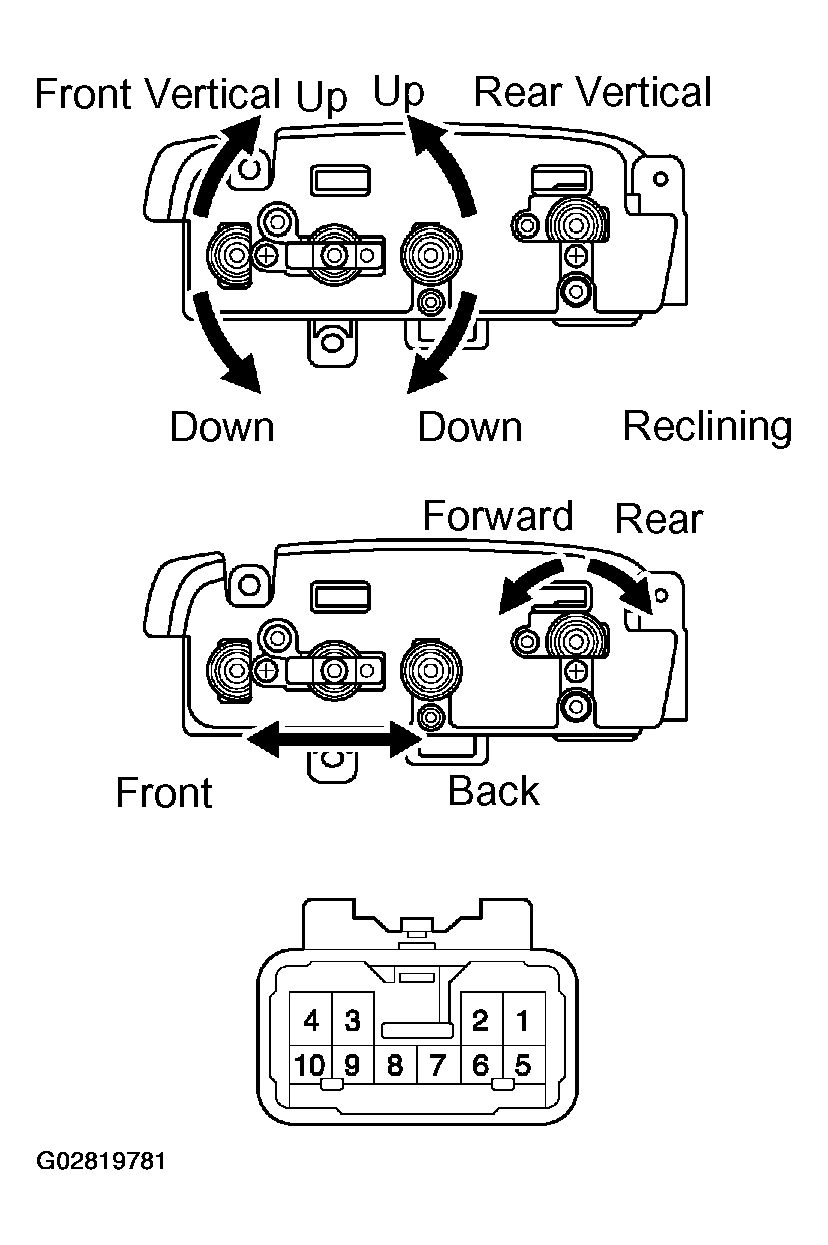

    Fig 1: Inspecting Driver's Power Seat Switch And Terminal
    G02819781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Slide switch:

    SPECIFIED CONDITION

    Switch position Tester connection Specified condition
    FRONT 4 - 6, 1 - 9 Continuity
    OFF 4 - 6 - 9 Continuity
    BACK 4 - 9, 1 - 6 Continuity

    Front vertical switch:

    SPECIFIED CONDITION

    Switch position Tester connection Specified condition
    UP 1 - 10, 4 - 5 Continuity
    OFF 7 - 5 - 10 Continuity
    DOWN 4 - 10, 1 - 5 Continuity

    Rear vertical switch:

    SPECIFIED CONDITION

    Switch position Tester connection Specified condition
    UP 1 - 7,4 - 8 Continuity
    OFF 2 - 7 - 8 Continuity
    DOWN 4 - 7, 1 - 8 Continuity

    Reclining switch:

    SPECIFIED CONDITION

    Switch position Tester connection Specified condition
    FORWARD 1 - 3, 2 - 4 Continuity
    OFF 2 - 3 - 4 Continuity
    REAR 1 - 2, 4 - 3 Continuity

    If continuity is not as specified, replace the switch.

  2. INSPECT SLIDE MOTOR OPERATION
    1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, check that the motor turns counterclockwise.

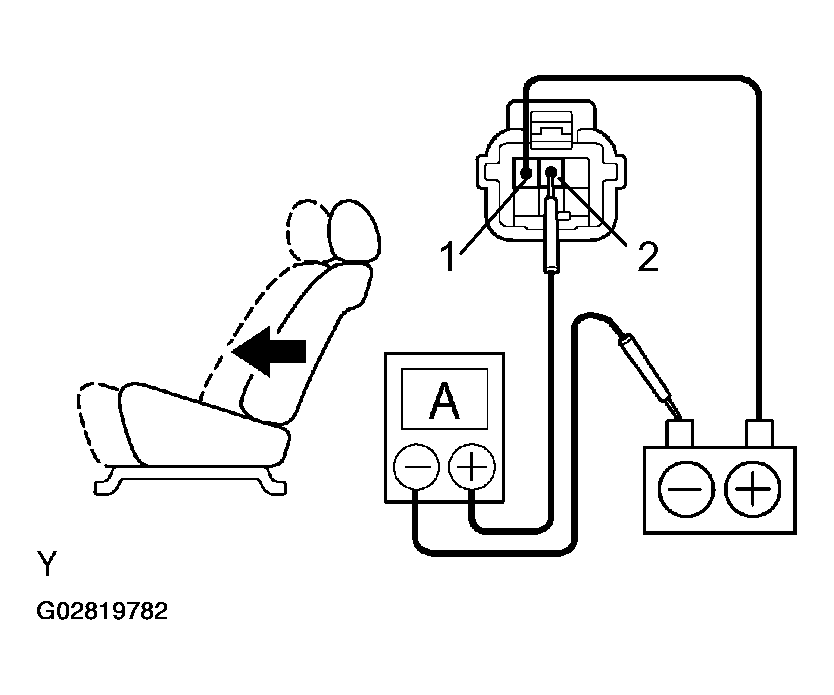

      Fig 2: Checking Motor Turns Counterclockwise
      G02819782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Reverse the polarity, check that the motor turns clockwise.

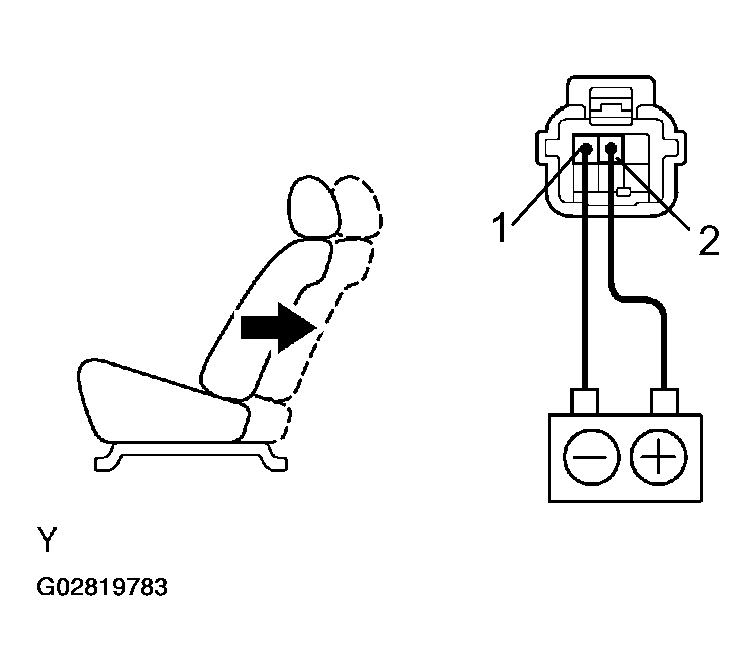

    3. Fig 3: Checking Motor Turns Clockwise
      G02819783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If operation is not as specified, replace the seat adjuster.

  3. INSPECT SLIDE MOTOR PTC THERMISTOR OPERATION
    1. Connect the positive (+) lead from the battery to terminal 1, the positive (+) lead from the ammeter to terminal 2 and the negative (-) lead to the battery negative (-) terminal, then move the seat cushion to the front position.

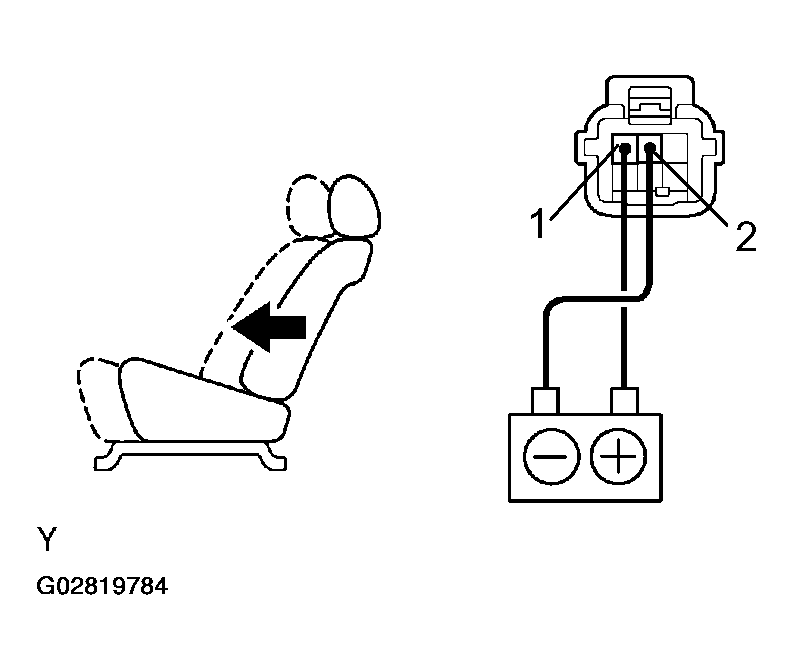

    2. Fig 4: Inspecting Slide Motor PTC Thermistor Operation (Forward)
      G02819784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Continue to apply voltage, check that current changes to less than 1 ampere within 4 to 90 seconds.
    4. Disconnect the leads from terminals.
    5. Approximately 60 seconds later, connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, check that the seat cushion begins to move backwards.

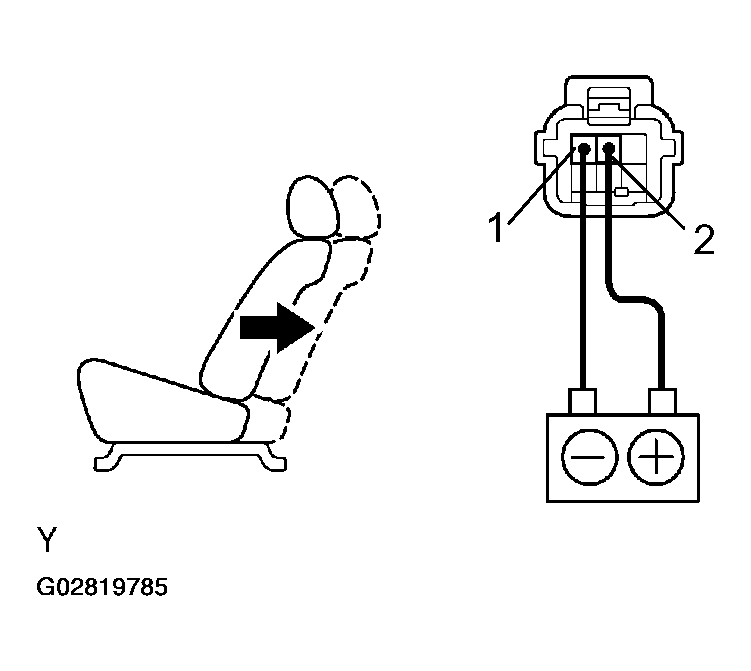

      Fig 5: Inspecting Slide Motor PTC Thermistor Operation (Backward)
      G02819785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If operation is not as specified, replace the seat adjuster.

  4. INSPECT FRONT VERTICAL MOTOR OPERATION
    1. Connect the positive (+) lead from the battery to terminal 4 and the negative (-) lead to terminal 5, check that the motor turns counterclockwise.

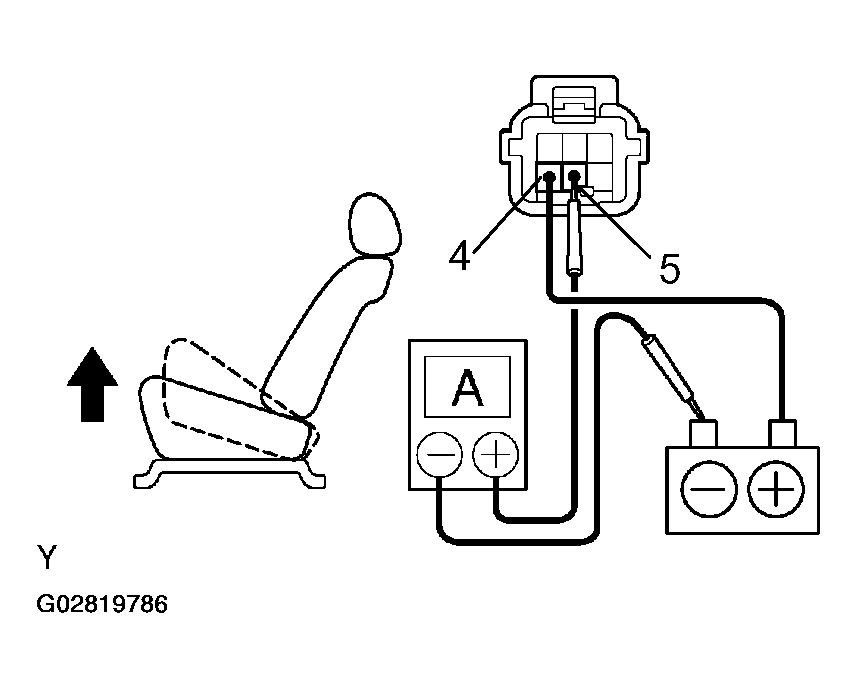

      Fig 6: Inspecting Front Vertical Motor Operation (Counterclockwise)
      G02819786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Reverse the polarity, check that the motor turns clockwise.

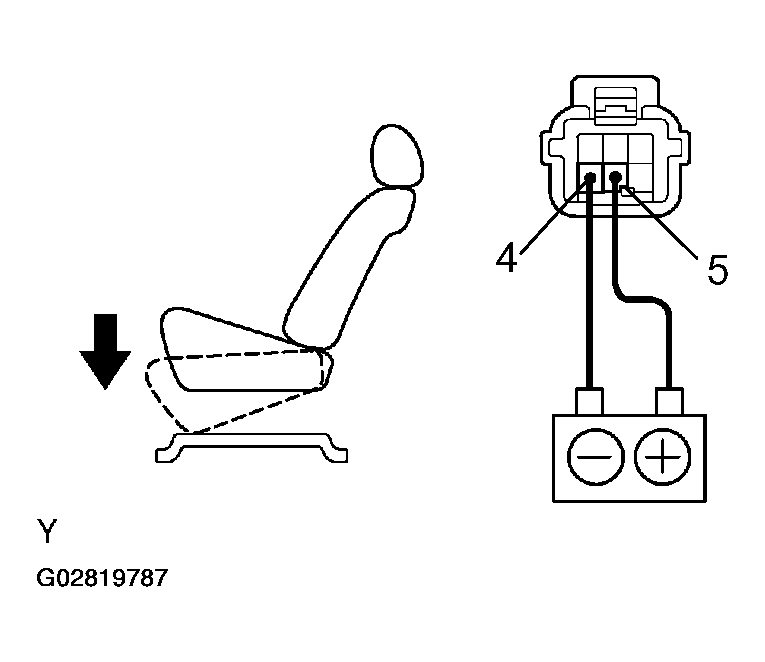

    3. Fig 7: Inspecting Front Vertical Motor Operation (Clockwise)
      G02819787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If operation is not as specified, replace the seat adjuster.

  5. INSPECT FRONT VERTICAL MOTOR PTC THERMISTOR OPERATION
    1. Connect the positive (+) lead from the battery to terminal 4, the positive (+) lead from the ammeter to terminal 5 and the negative (-) lead to the battery negative (-) terminal, then move the seat cushion to the highest position.

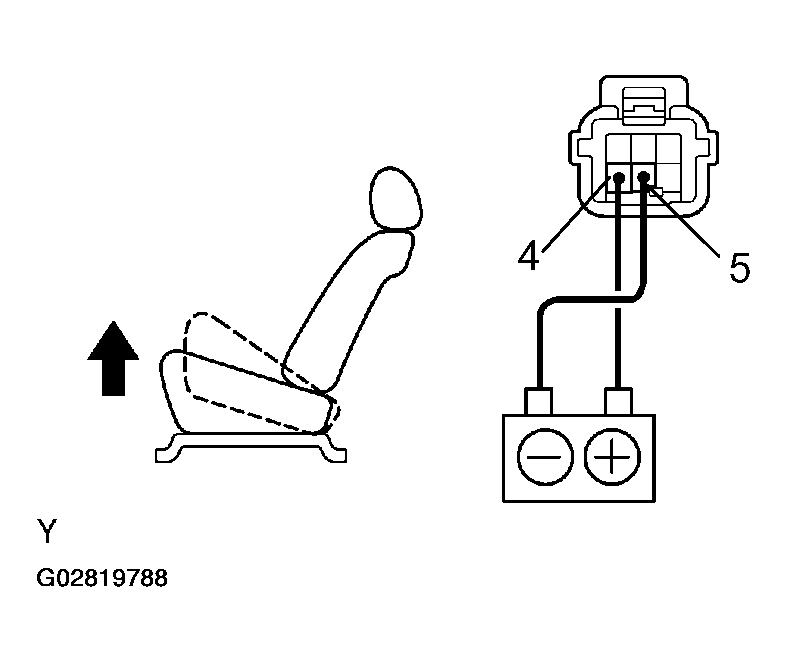

      Fig 8: Inspecting Front Vertical Motor PTC Thermistor Operation (Upward)
      G02819788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Continue to apply voltage, check that the current changes to less than 1 ampere within 4 to 90 seconds.
    3. Disconnect the leads from the terminals.
    4. Approximately 60 seconds later, connect the positive (+) lead from the battery to terminal 5 and the negative (-) lead to terminal 4, check that the seat cushion begins to descend.

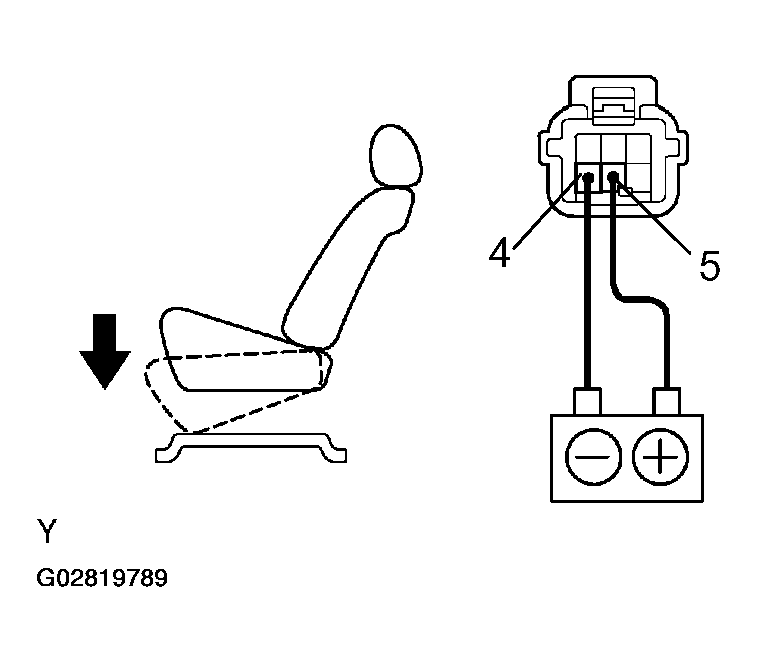

      Fig 9: Inspecting Front Vertical Motor PTC Thermistor Operation (Downward)
      G02819789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If operation is not as specified, replace the seat adjuster.

  6. INSPECT REAR VERTICAL MOTOR OPERATION
    1. Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 6, check that the motor turns counterclockwise.

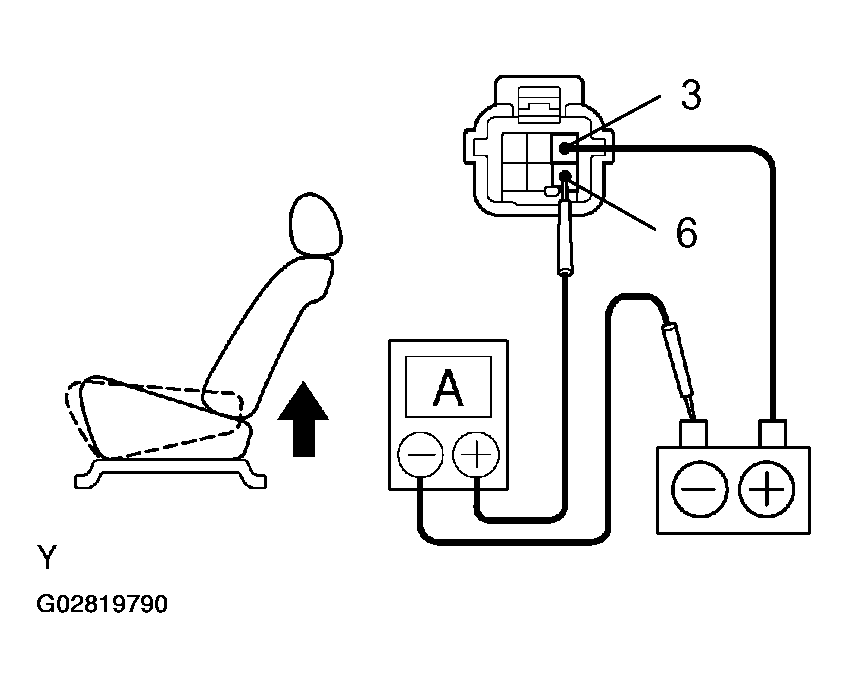

      Fig 10: Inspecting Rear Vertical Motor Operation (Counterclockwise)
      G02819790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Reverse the polarity, check that the motor turns clockwise.
    3. Fig 11: Inspecting Rear Vertical Motor Operation (Clockwise)
      G02819791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If operation is not as specified, replace the seat adjuster.

  7. INSPECT REAR VERTICAL MOTOR PTC THERMISTOR OPERATION
    1. Connect the positive (+) lead from the battery to terminal 3, the positive (+) lead from the ammeter to terminal 6 and the negative (-) lead to the battery negative (-) terminal, then move the seat cushion to the highest position.

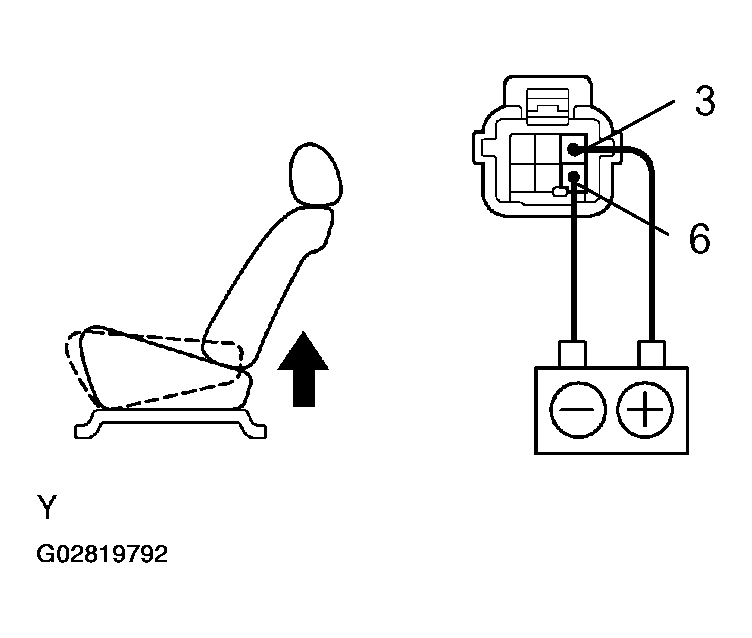

      Fig 12: Inspecting Rear Vertical Motor PTC Thermistor Operation (Highest Position)
      G02819792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Continue to apply voltage, check that the current changes to less than 1 ampere within 4 to 90 seconds.
    3. Disconnect the leads from the terminals.
    4. Approximately 60 seconds later, connect the positive (+) lead from the battery to terminal 6 and the negative (-) lead to terminal 3, check that the seat cushion begins to descend.

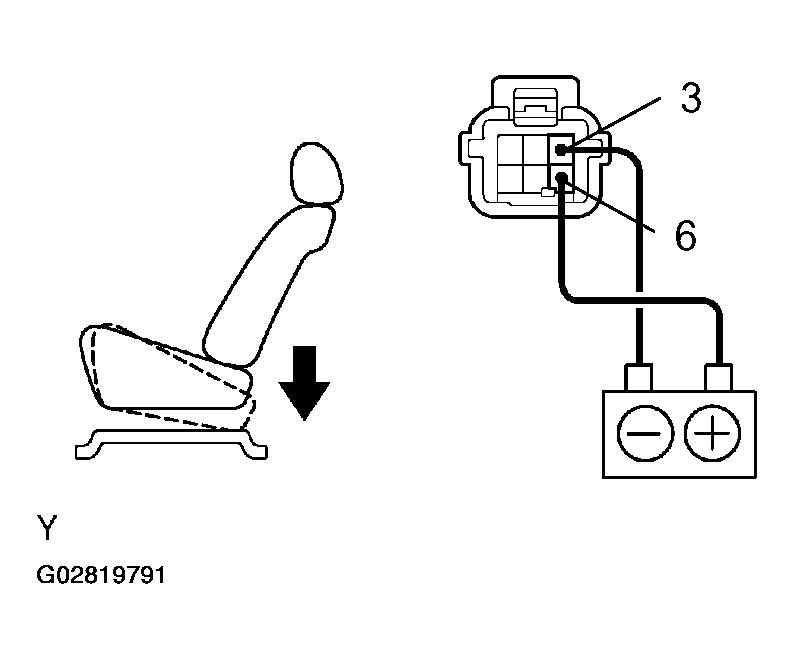

      Fig 13: Inspecting Rear Vertical Motor PTC Thermistor Operation (Lowest Position)
      G02819793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If operation is not as specified, replace the seat adjuster.

  8. INSPECT RECLINING MOTOR OPERATION
    1. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, check that the motor turns counterclockwise.

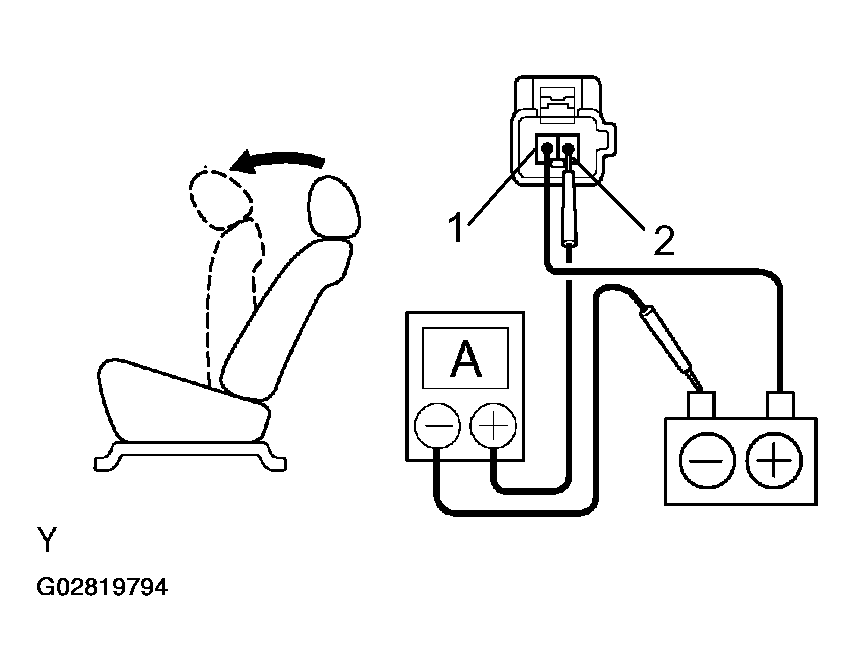

      Fig 14: Checking Motor Turns Counterclockwise
      G02819794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Reverse the polarity, check that the motor turns clockwise.

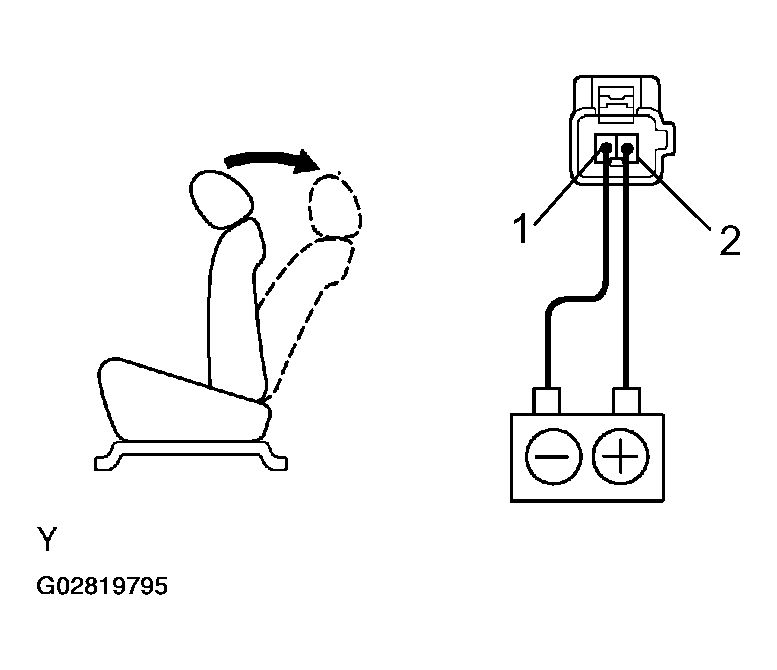

    3. Fig 15: Checking Motor Turns Clockwise
      G02819795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If operation is not as specified, replace the seat adjuster.

  9. INSPECT RECLINING MOTOR PTC THERMISTOR OPERATION
    1. Connect the positive (+) lead from the battery to terminal 1, the positive (+) lead from the ammeter to terminal 2 and the negative (-) lead to the battery negative (-) terminal, then recline the seat back to the most forward position.

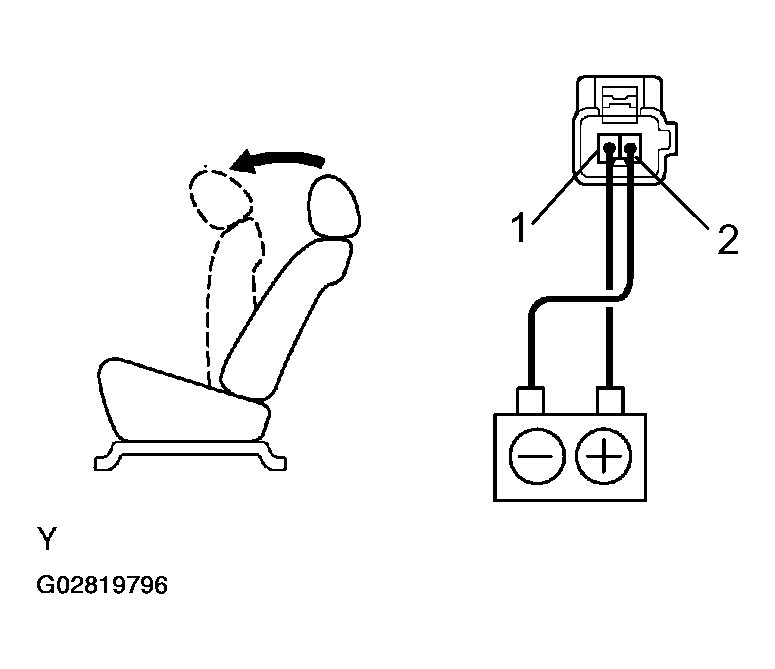

      Fig 16: Inspecting Reclining Motor PTC Thermistor Operation (Forward Position)
      G02819796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Continue to apply voltage, check that the current changes to less than 1 ampere within 4 to 90 seconds.
    3. Disconnect the leads from the terminals.
      Fig 17: Inspecting Reclining Motor PTC Thermistor Operation (Backward Position)
      G02819797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Approximately 60 seconds later, connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, check that the seat back starts to fall backward.

    If operation is not as specified, replace the seat adjuster.
