Home >> Toyota >> 2003 >> Camry Solara SLE, 2D Convertible >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Body Clips >> Replacement

Body Clips: Replacement

The removal and installation methods of typical clips used in body parts are shown in the table below.

NOTE: If the clip is damaged during the operation, always replace it with a new clip.

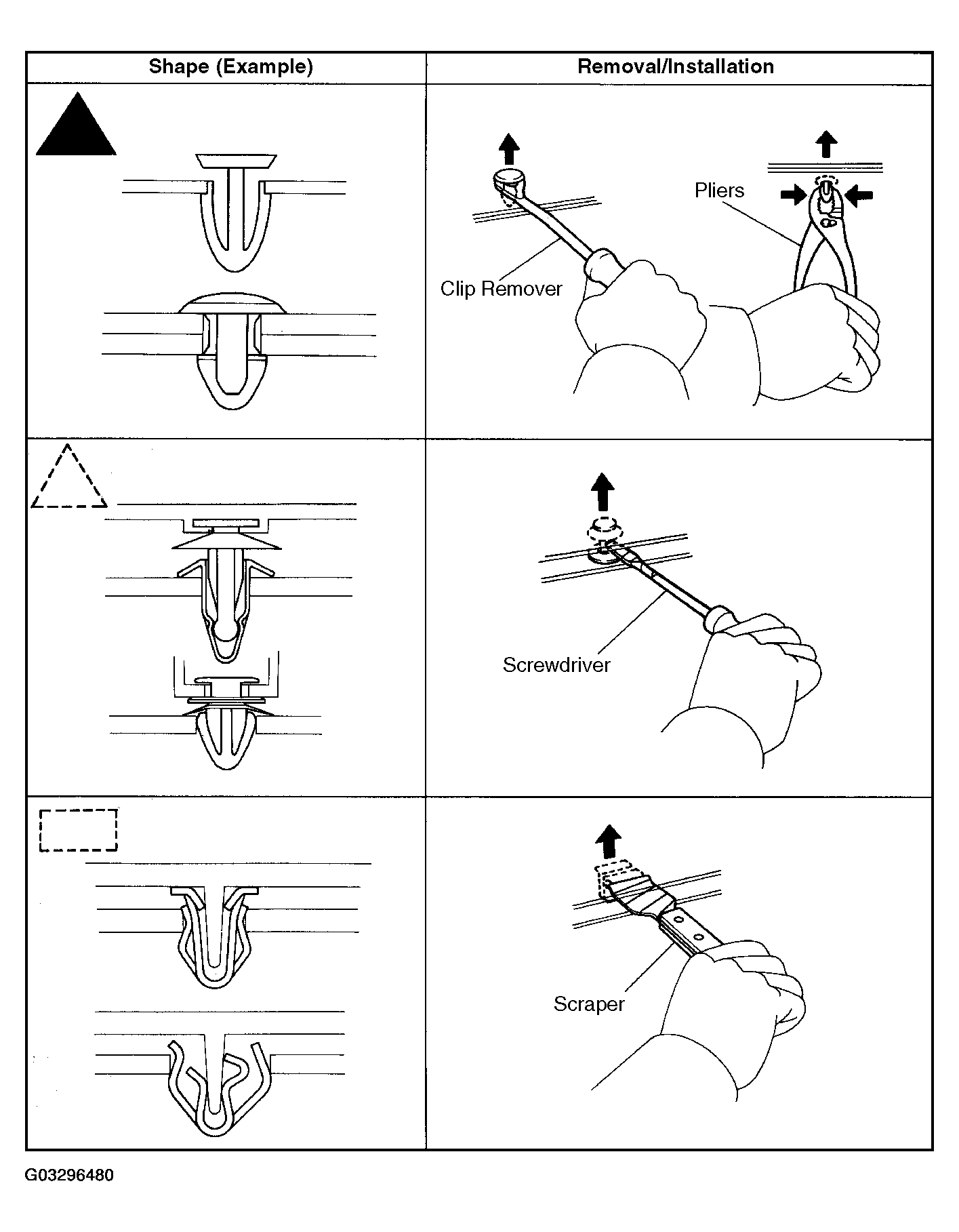

Fig 1: Clip Removing & Installing Methods (1 Of 2)
G03296480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

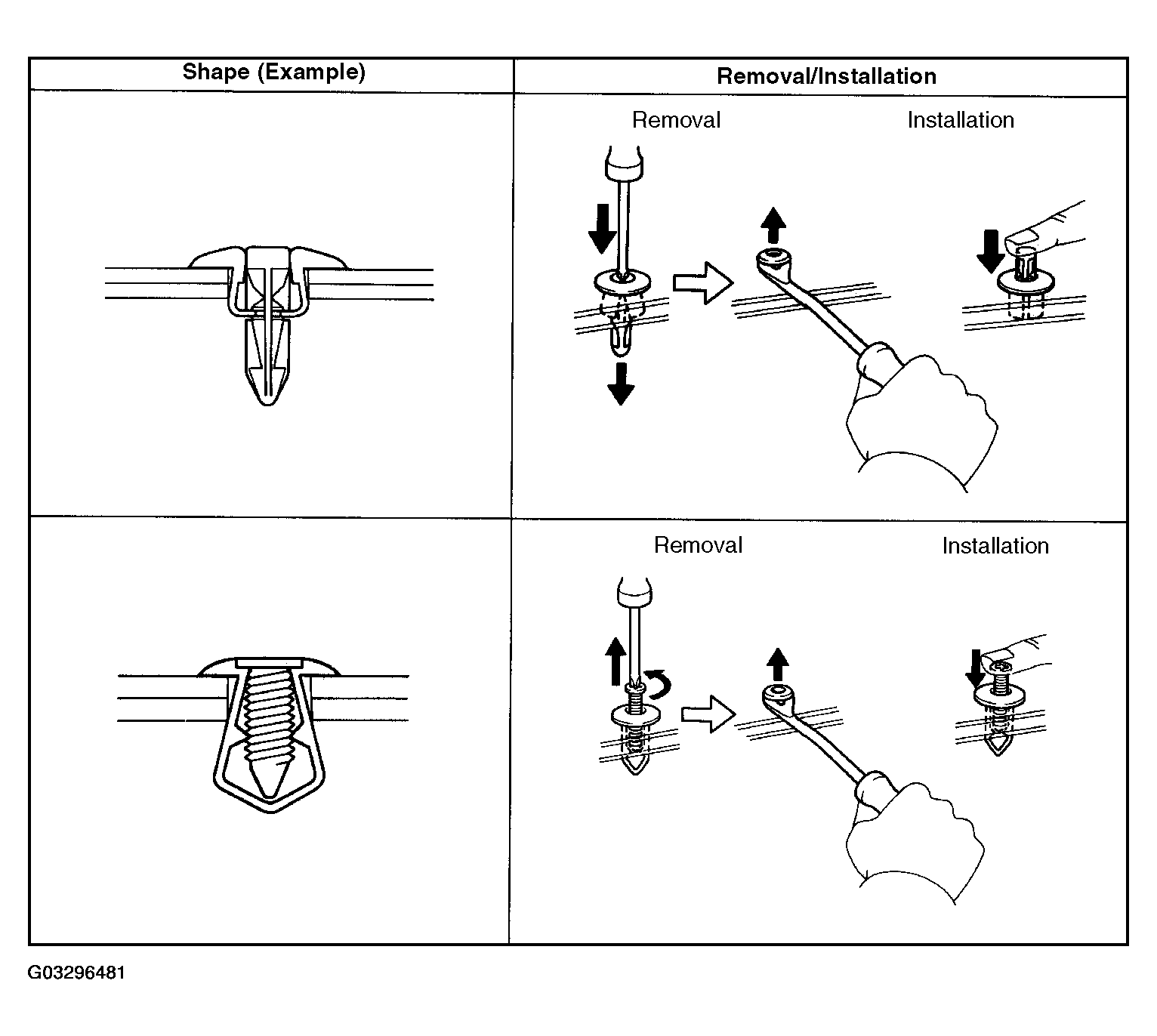

Fig 2: Clip Removing & Installing Methods (2 Of 2)
G03296481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
