Wireless Door Lock Control System: Replacement

REPLACE TRANSMITTER (LITHIUM) BATTERY
CAUTION: Special caution should be taken for handling each component as they are precision electronic components.
1. Using a screwdriver, remove the cover.
  CAUTION: Do not pry out the cover forcibly.

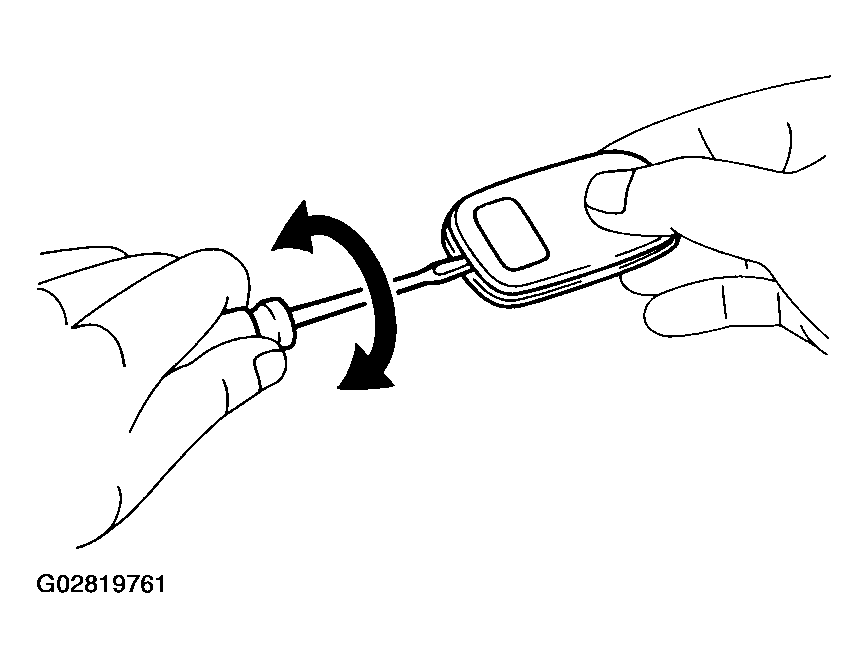

  NOTE: Push the cover with a finger as shown in Fig 1the illustration, so that there becomes clearance, then pry out the cover from that clearance.

  Fig 1: Removing Cover Using Screwdriver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the battery (lithium battery).
  CAUTION:
  - Do not push the terminals with a finger.
  - If prying up the battery (lithium battery) forcibly to remove, the terminals are deformed.
3. Install a battery (lithium battery) as shown in the illustration.

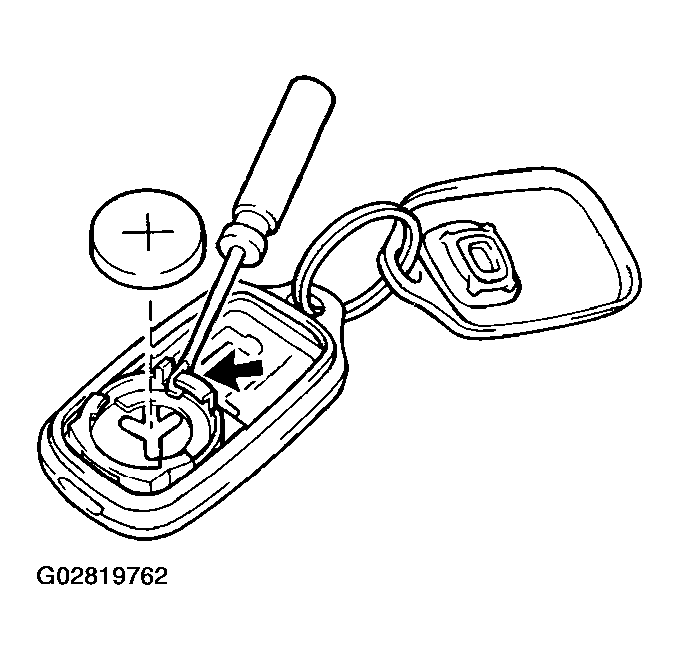

  Fig 2: Installing Battery (Lithium Battery)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  CAUTION: Face the battery upward. Take care not to deform the terminals.
4. Install the cover.
5. Check that the rubber cover is not distorted or slipped off, and install the cover.
  CAUTION: It might cause faulty contact of battery (lithium battery) and terminals.
REPLACE DOOR CONTROL RECEIVER AND TRANSMITTER
CAUTION: When replacing the door control receiver and transmitter, registration of recognition code is necessary because they are provided as a single components.
1. Select the operation mode to perform from the following operation modes.
  - Rewrite mode
  - Confirmation mode
  NOTE:
  - The rewrite mode is used to erase all the previously registered codes and register only new recognition codes.
  - The confirmation mode is for confirming how many recognition codes are already registered before you rewrite recognition codes.
2. Follow the chart on the following pages to register the transmitter recognition code at the wireless door lock control receiver.
NOTE:
- When procedure is out of the specified, the operation returns to the normal operation.
- Maximum 4 recognition codes can be registered.

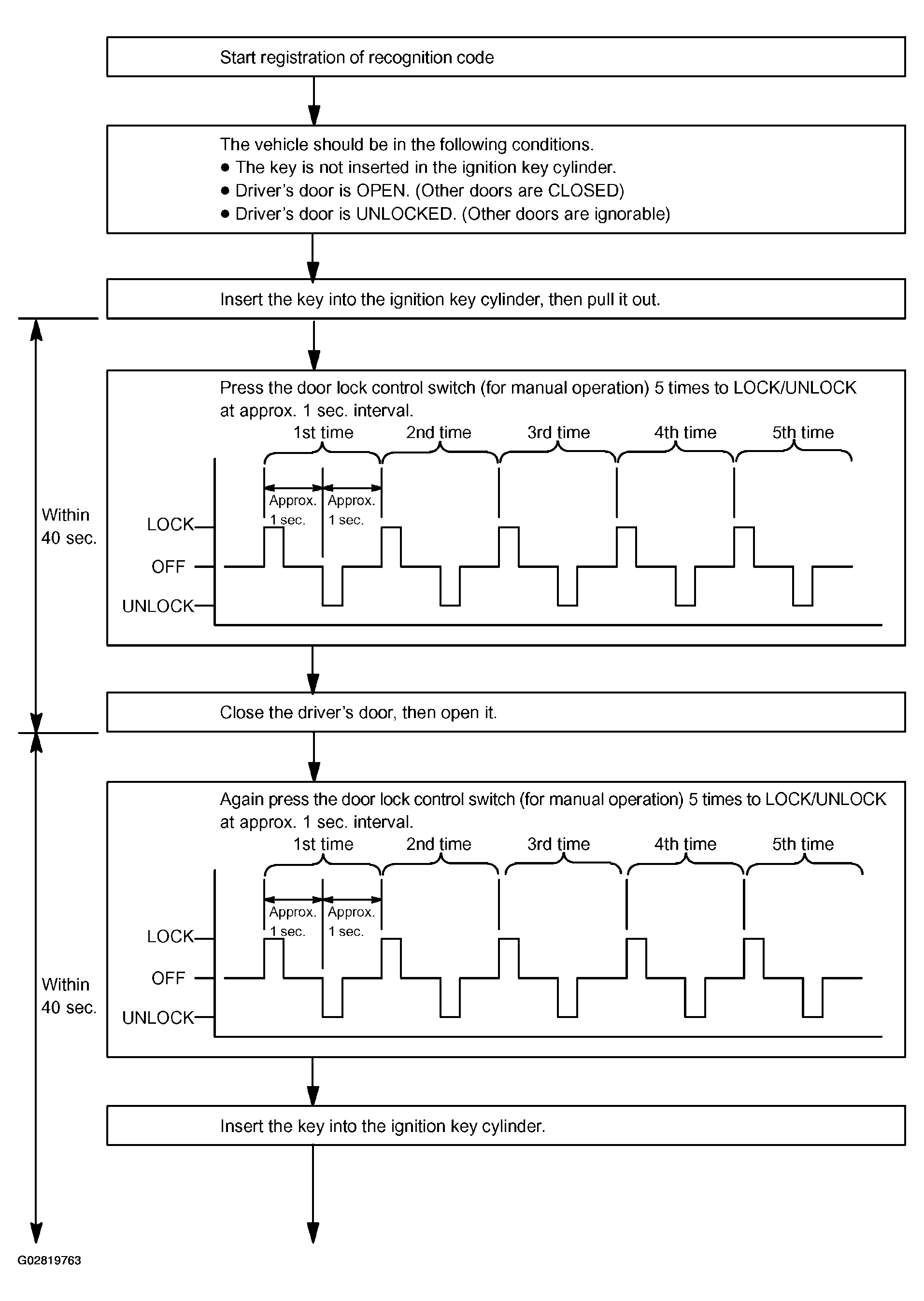

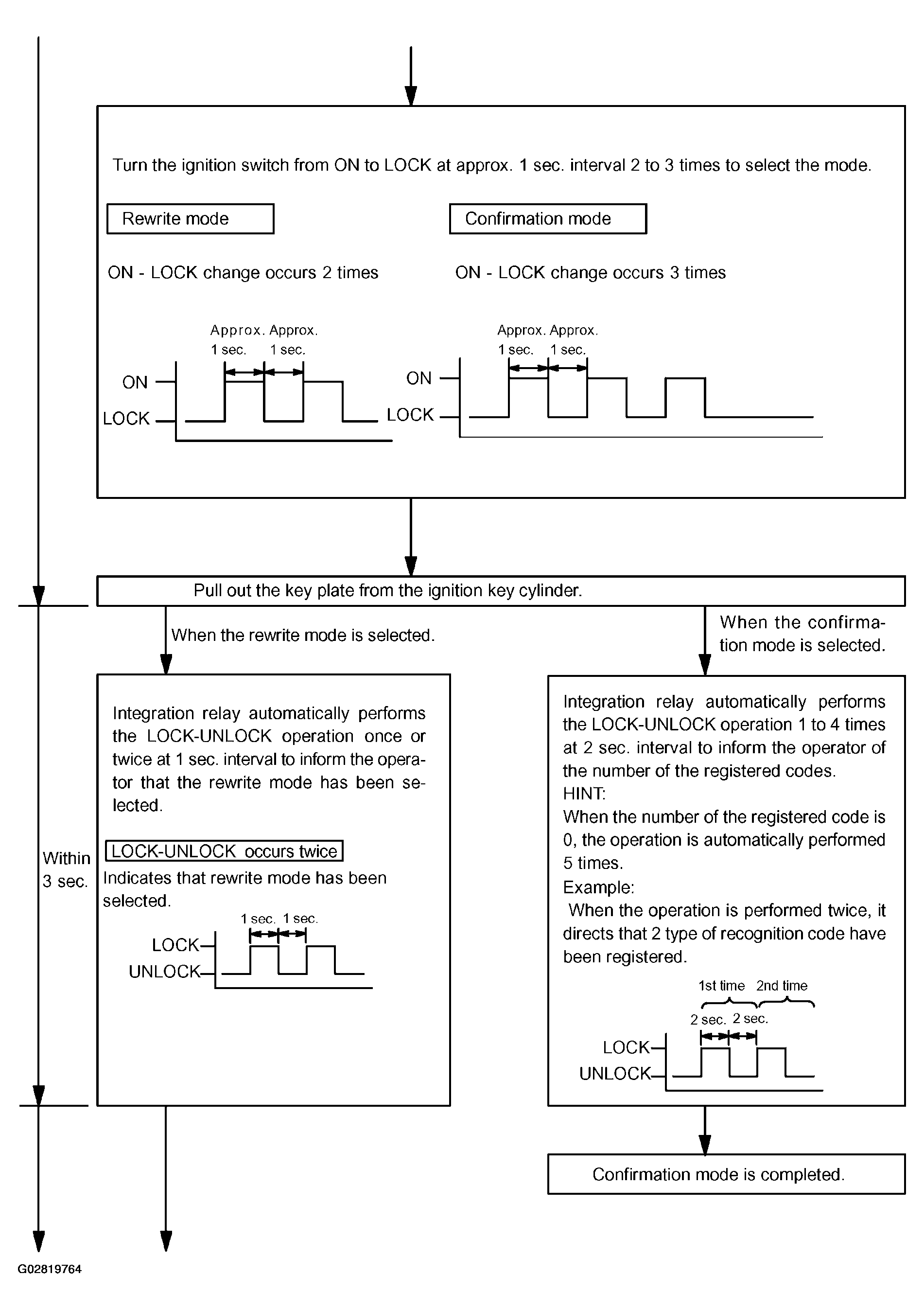

Fig 3: Registration Of Recognition Code Flowchart (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

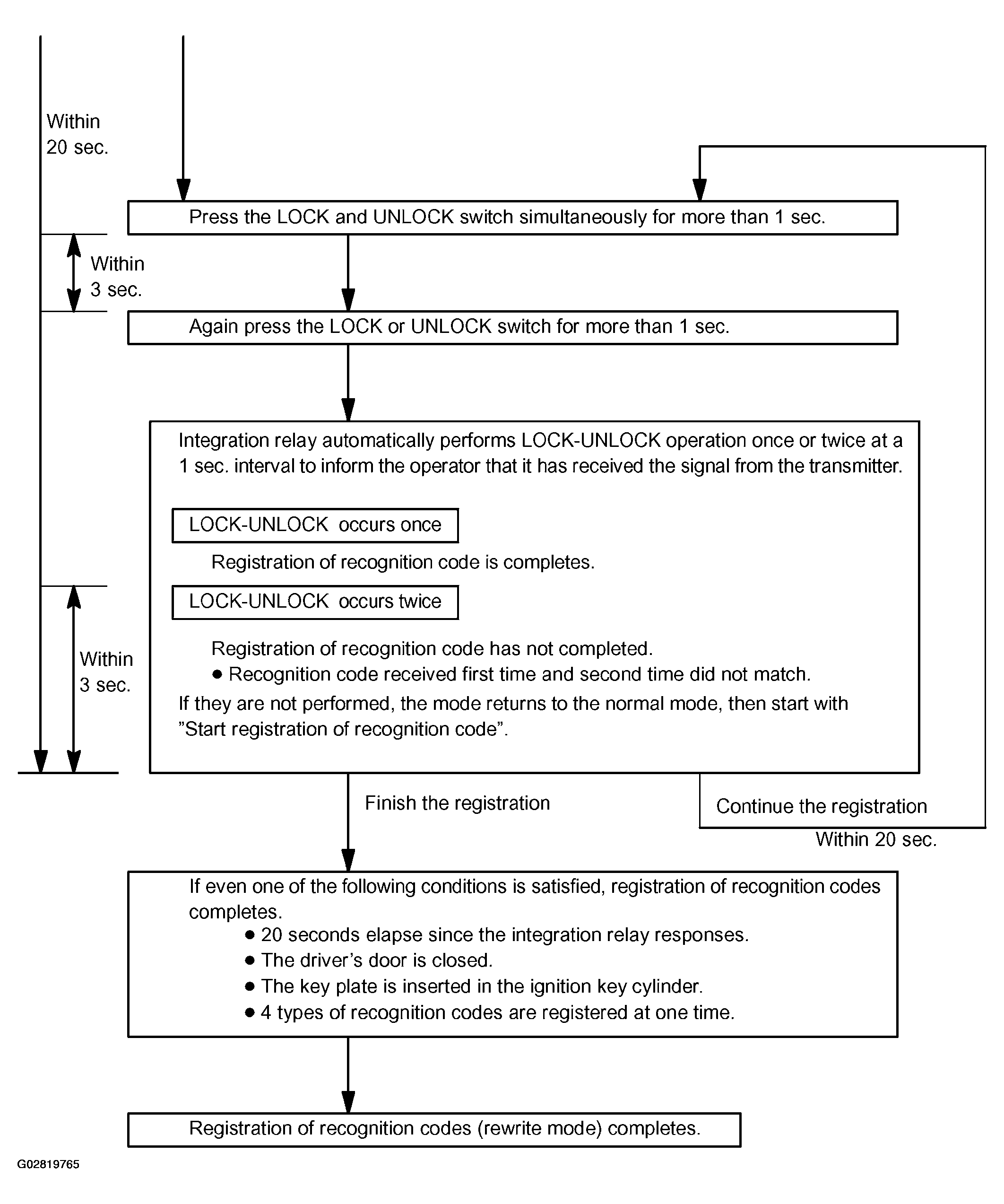

Fig 4: Registration Of Recognition Code Flowchart (2 Of 3)

Fig 5: Registration Of Recognition Code Flowchart (3 Of 3)
