Wireless Door Lock Control System: Pre-Check

Only wireless function (Remote control) does not operate.

(If a new transmitter or a transmitter for the same type vehicle that works properly with the vehicle is not available.)

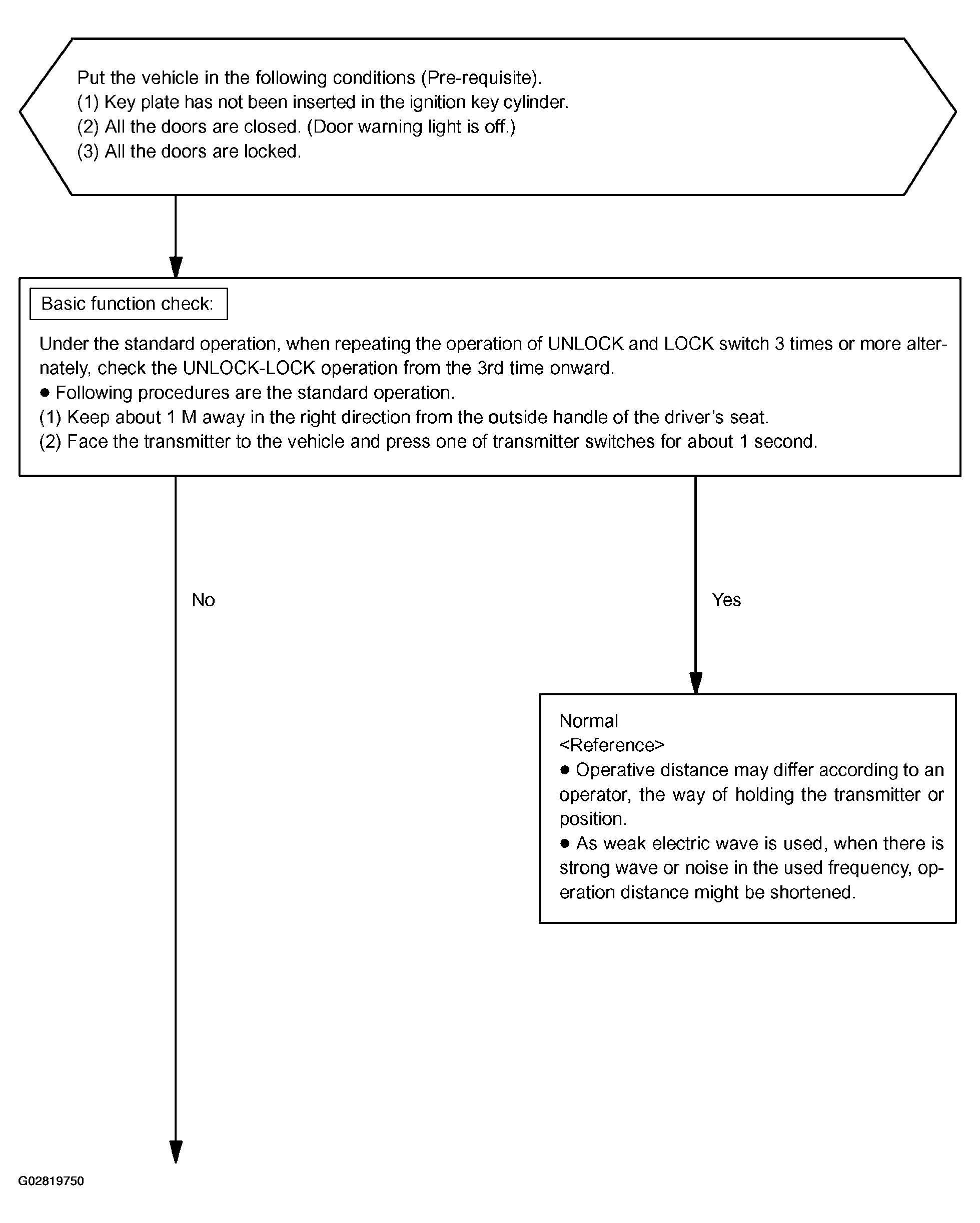

Fig 1: Only Wireless Function (Remote Control) Does Not Operate Pre-Check Flow Chart (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

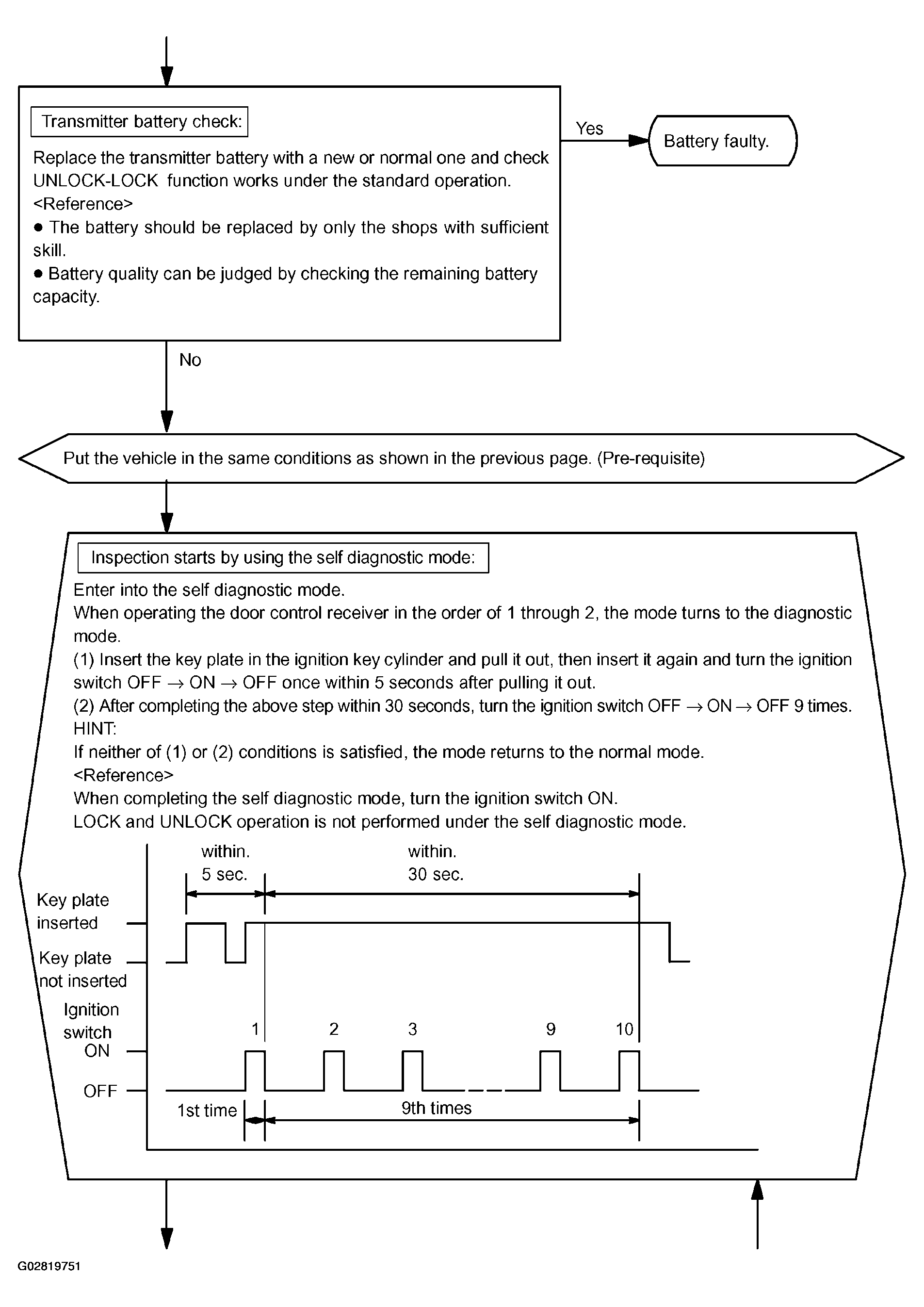

Fig 2: Only Wireless Function (Remote Control) Does Not Operate Pre-Check Flow Chart (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Only Wireless Function (Remote Control) Does Not Operate Pre-Check Flow Chart (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

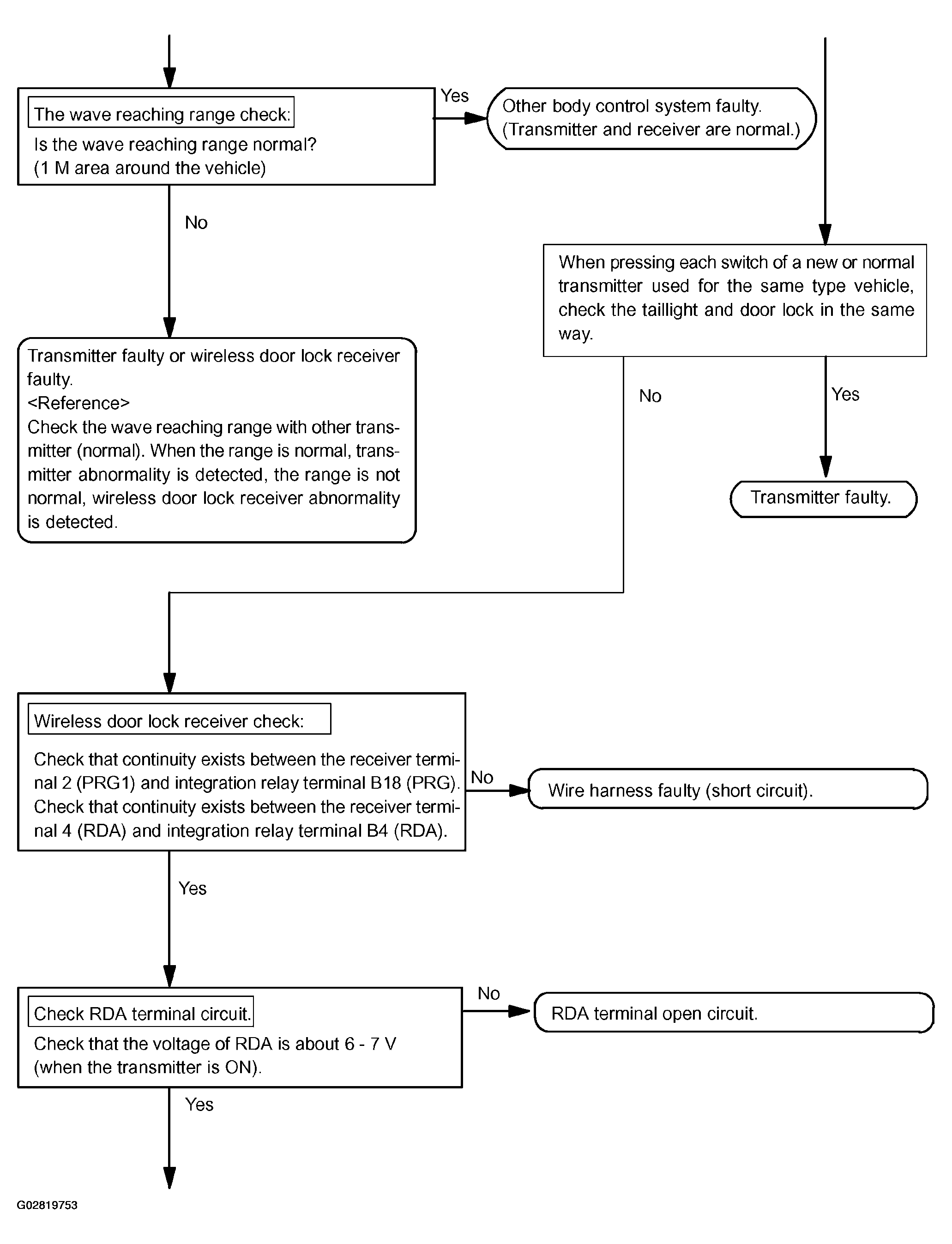

Fig 4: Only Wireless Function (Remote Control) Does Not Operate Pre-Check Flow Chart (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

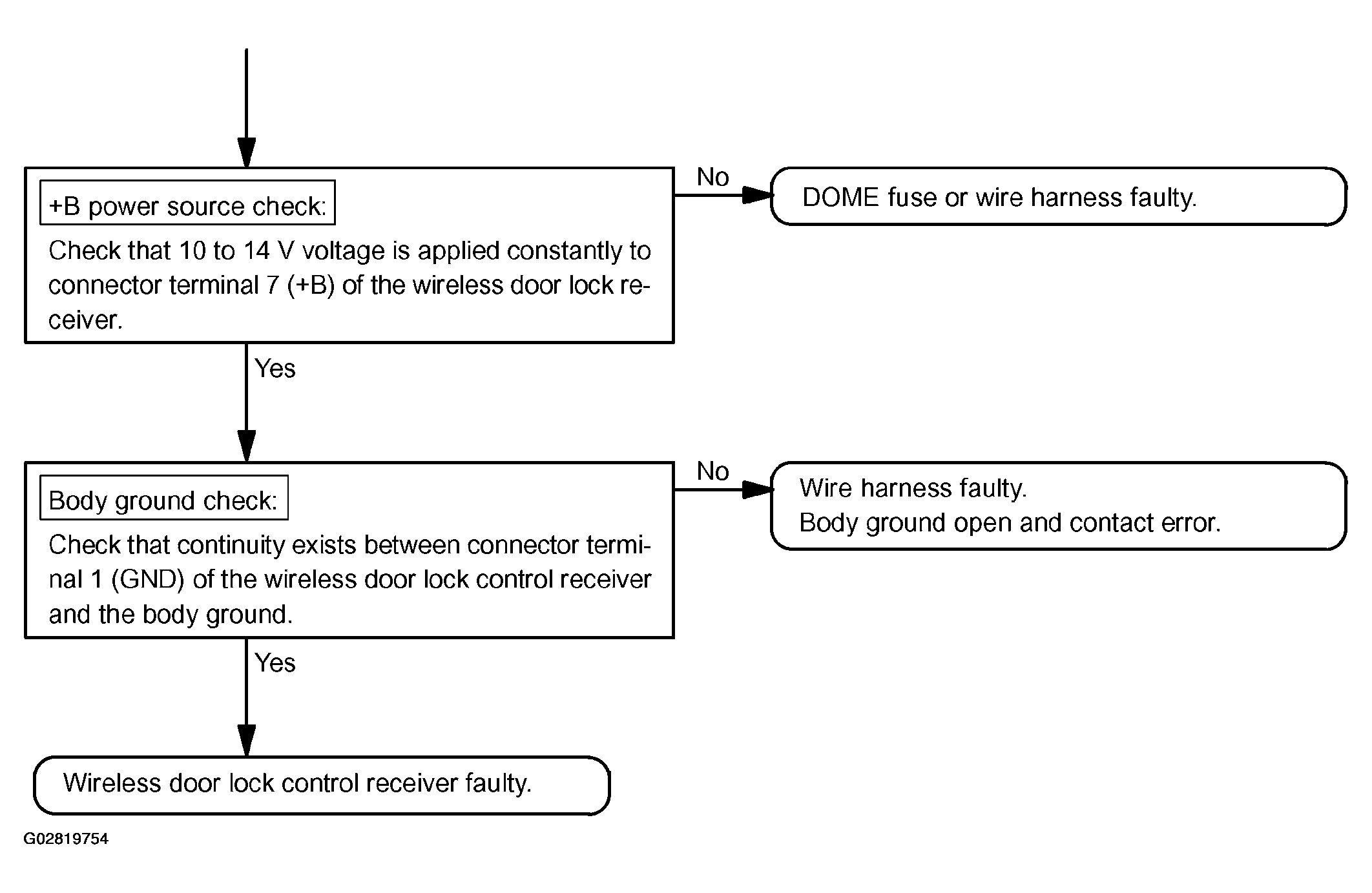

Fig 5: Only Wireless Function (Remote Control) Does Not Operate Pre-Check Flow Chart (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
