Home >> Toyota >> 2003 >> Camry Solara SLE, 2D Convertible >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Power Door Lock Control System >> Location

Power Door Lock Control System: Location

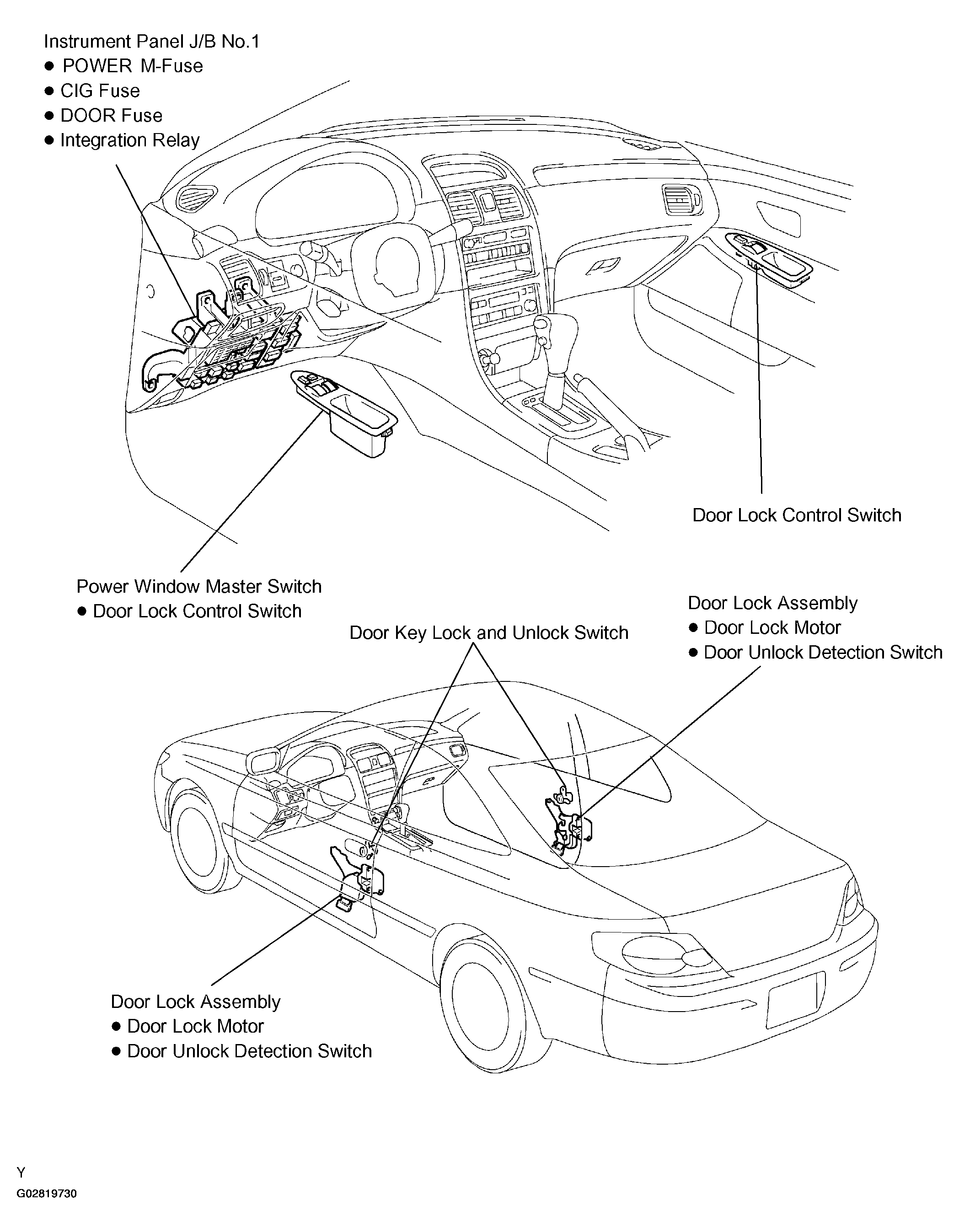

Fig 1: Locating Power Door Lock Control System Component

G02819730

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
