Power Door Lock Control System: Inspection

  1. Master switch:

    INSPECT DRIVER'S DOOR LOCK CONTROL SWITCH CONTINUITY

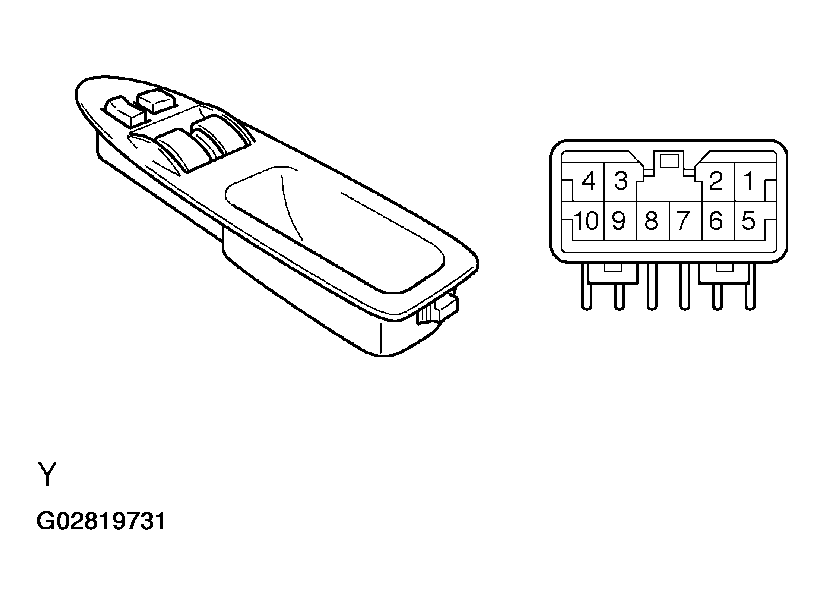

    Fig 1: Inspecting Driver'S Door Lock Control Switch Continuity (Master Switch)
    G02819731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    INSPECT DRIVER'S DOOR LOCK CONTROL SWITCH CONTINUITY

    Switch position Tester connection Specified condition
    LOCK 1 - 2 Continuity
    OFF - No continuity
    UNLOCK 1 - 5 Continuity

    If continuity is not as specified, replace the switch.

  2. INSPECT PASSENGER'S DOOR LOCK CONTROL SWITCH CONTINUITY

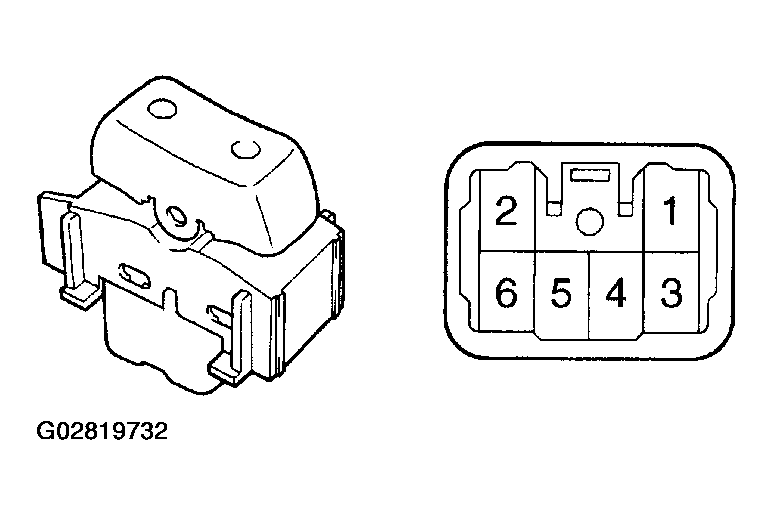

    Fig 2: Inspecting Passenger'S Door Lock Control Switch Continuity (Master Switch)
    G02819732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    INSPECT PASSENGER'S DOOR LOCK CONTROL SWITCH CONTINUITY

    Switch position Tester connection Specified condition
    LOCK 3 - 6 Continuity
    OFF - No continuity
    UNLOCK 3 - 5 Continuity

    If continuity is not as specified, replace the switch.

  3. Driver's door:

    INSPECT DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY

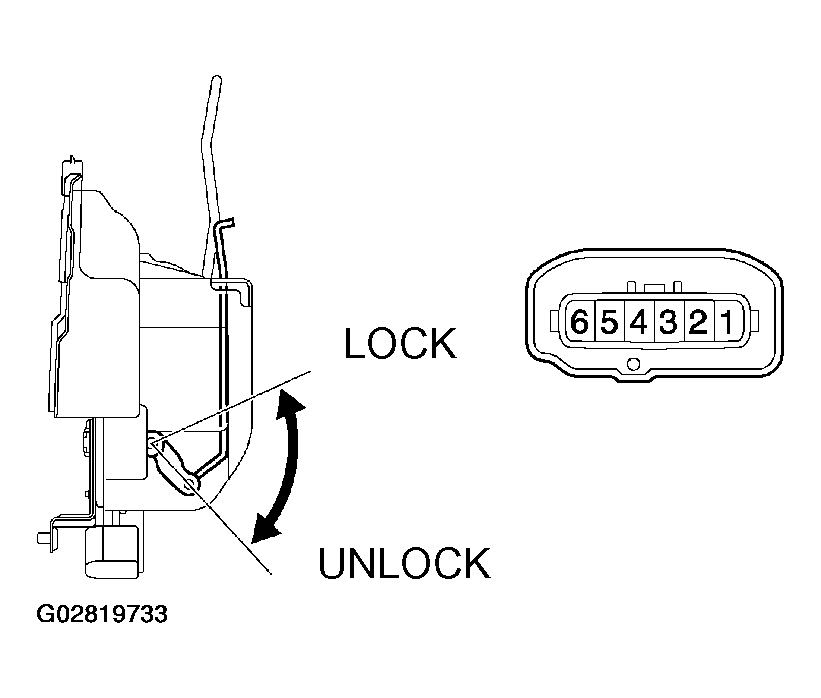

    Fig 3: Inspecting Door Key Lock And Unlock Switch Continuity (Driver's Door)
    G02819733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    INSPECT DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY

    Switch position Tester connection Specified condition
    LOCK 3 - 5 Continuity
    OFF - No continuity
    UNLOCK 3 - 4 Continuity

    If continuity is not as specified, replace the switch.

  4. Passenger's door:

    INSPECT DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY

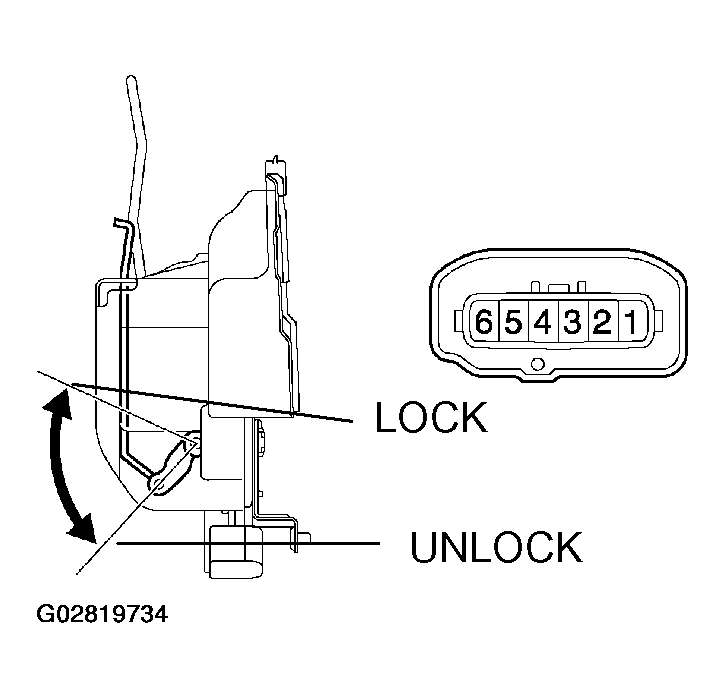

    Fig 4: Inspecting Door Key Lock And Unlock Switch Continuity (Passenger's Door)
    G02819734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    INSPECT DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY

    Switch position Tester connection Specified condition
    LOCK 2 - 4 Continuity
    OFF - No continuity
    UNLOCK 3 - 4 Continuity

    If continuity is not as specified, replace the switch.

  5. Driver's door:

    INSPECT DOOR UNLOCK DETECTION SWITCH CONTINUITY

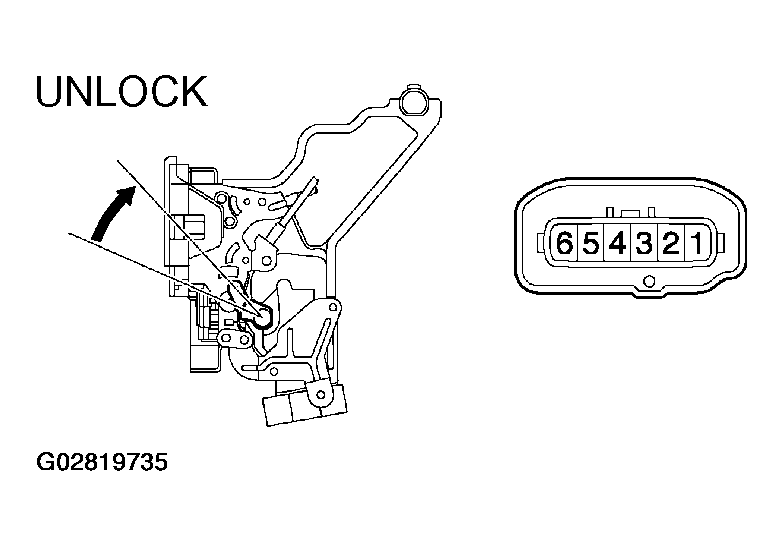

    Fig 5: Inspecting Door Unlock Detection Switch Continuity (Driver'S Door)
    G02819735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    INSPECT DOOR UNLOCK DETECTION SWITCH CONTINUITY

    Switch position Tester connection Specified condition
    OFF (Door Lock set to LOCK) - No continuity
    ON (Door Lock set to UNLOCK) 3 - 6 Continuity

    If continuity is not as specified, replace the switch.

  6. Passenger's door:

    INSPECT DOOR UNLOCK DETECTION SWITCH CONTINUITY

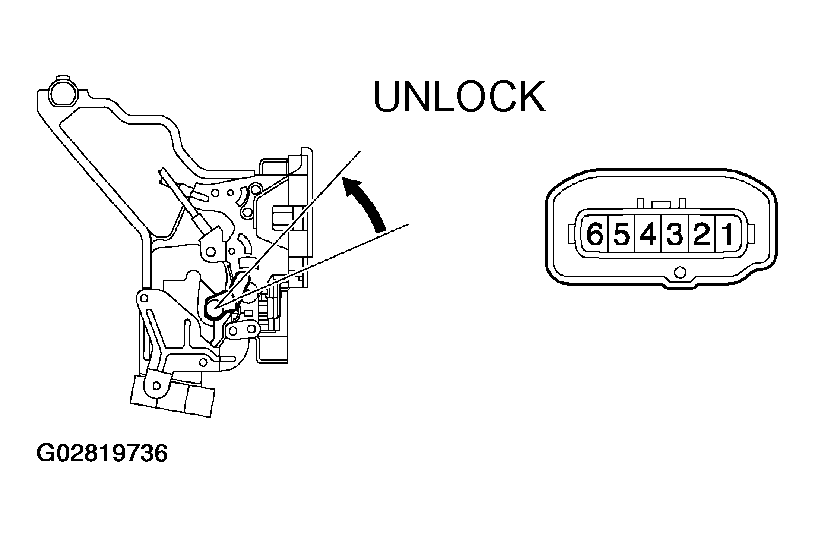

    Fig 6: Inspecting Door Unlock Detection Switch Continuity (Passenger's Door)
    G02819736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    INSPECT DOOR UNLOCK DETECTION SWITCH CONTINUITY

    Switch position Tester connections Specified condition
    OFF (Door Lock set to LOCK) - No continuity
    ON (Door Lock set to UNLOCK) 1 - 4 Continuity

    If continuity is not as specified, replace the switch.

  7. Driver's door:

    INSPECT DOOR LOCK MOTOR OPERATION

    1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the door lock link moves to UNLOCK position.

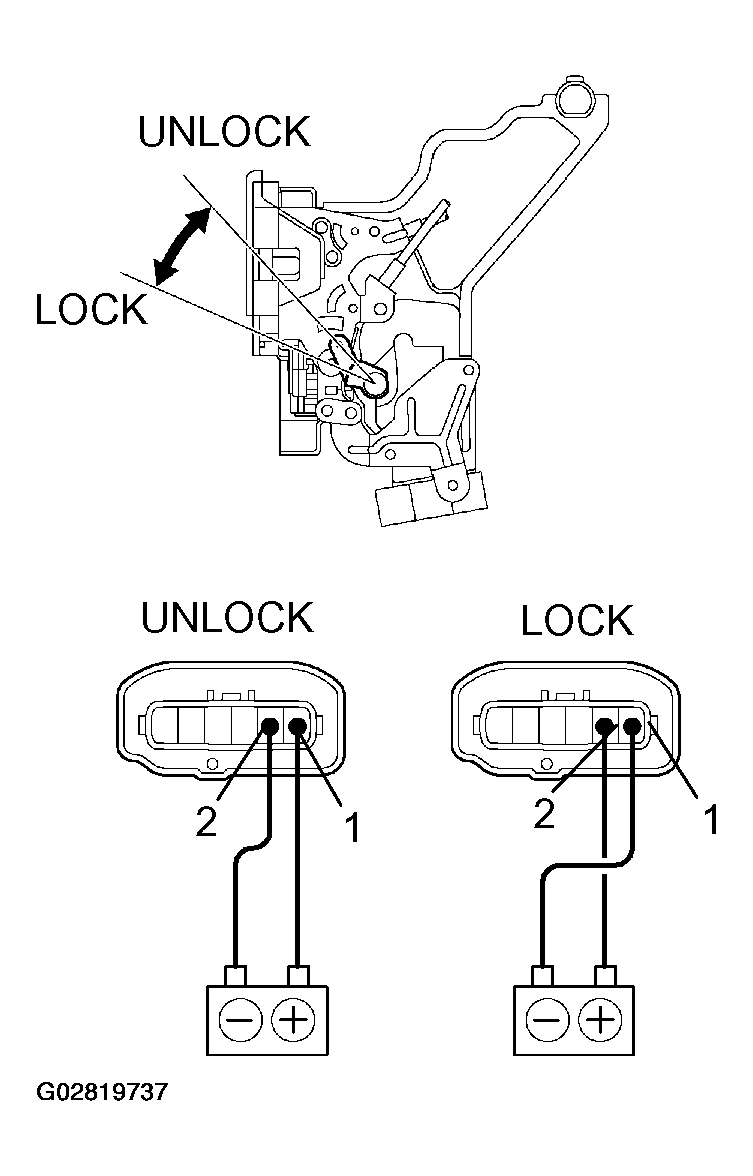

      Fig 7: Inspecting Door Lock Motor Operation (Driver's Door)
      G02819737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Reverse the polarity and check that the door lock link moves to LOCK position.

    If operation is not as specified, replace the door lock assembly.

  8. Passenger's door:

    INSPECT DOOR LOCK MOTOR OPERATION

    1. Connect the positive (+) lead from the battery to terminal 5 and the negative (-) lead to terminal 6, and check that the door lock link moves to UNLOCK position.

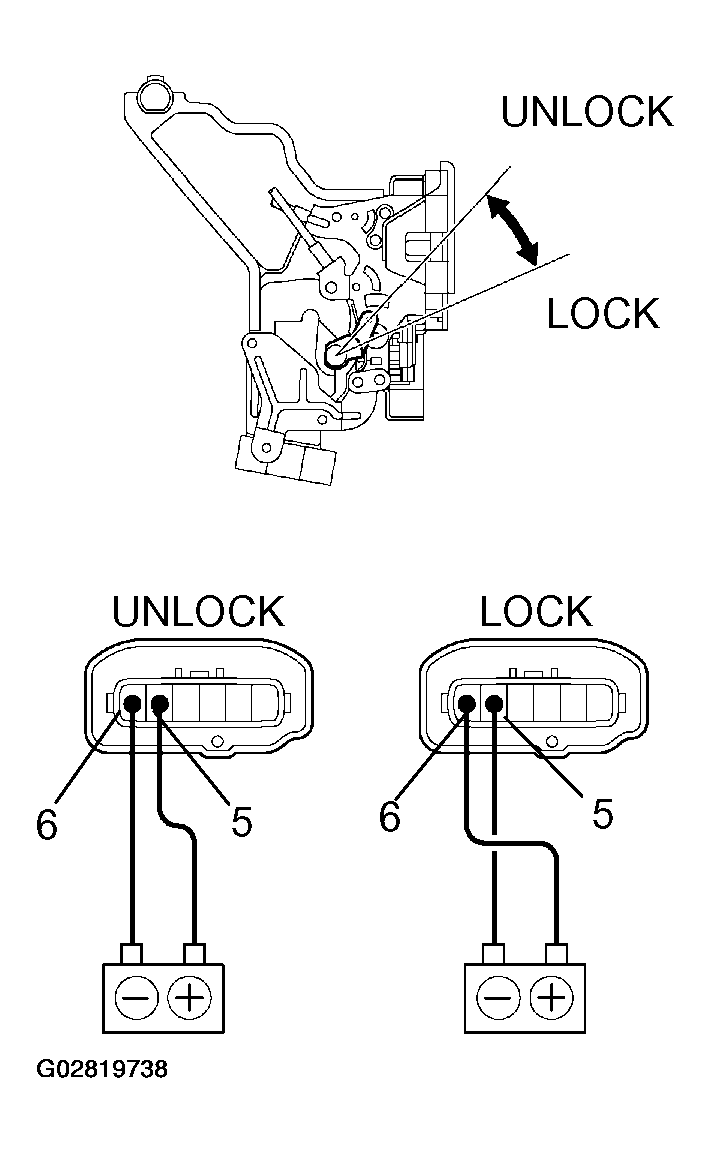

      Fig 8: Inspecting Door Lock Motor Operation (Passenger's Door)
      G02819738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Reverse the polarity and check that the door lock link moves to LOCK position.

    If operation is not as specified, replace the door lock assembly.

  9. Using an ammeter:

    INSPECT DRIVER'S DOOR PTC THERMISTOR OPERATION

    1. Connect the negative (-) lead from the battery to terminal 2.

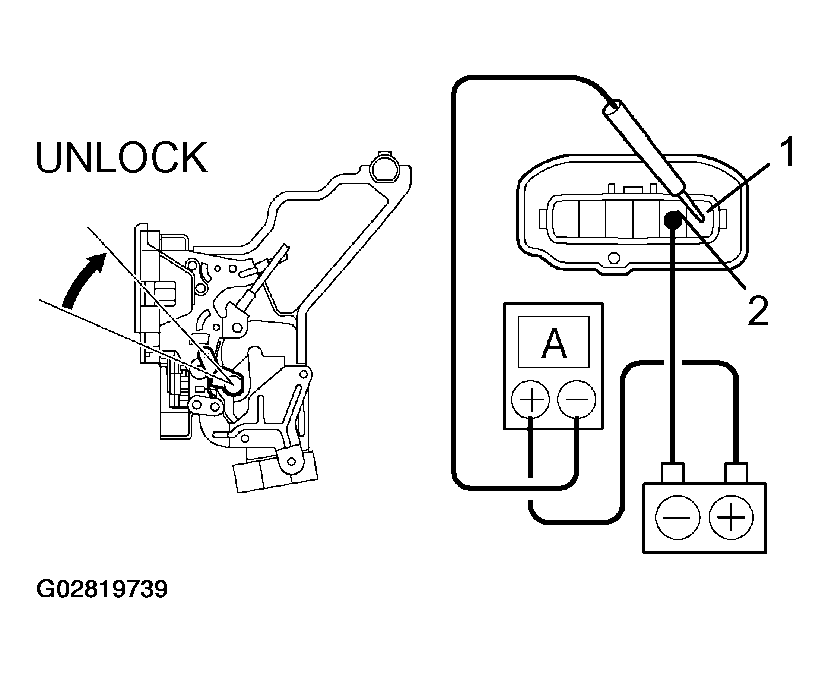

    2. Fig 9: Connecting Negative (-) Lead From Battery To Terminal 2
      G02819739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the positive (+) lead from the ammeter to terminal 1 and the negative (-) lead to battery negative (-) terminal, and check that the current changes from approximately 3.2 A to less than 0.5 A within 20 to 70 seconds.
    4. Disconnect the leads from terminals.
    5. Approximately 60 seconds later, connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, and check that the door lock moves to the LOCK position.

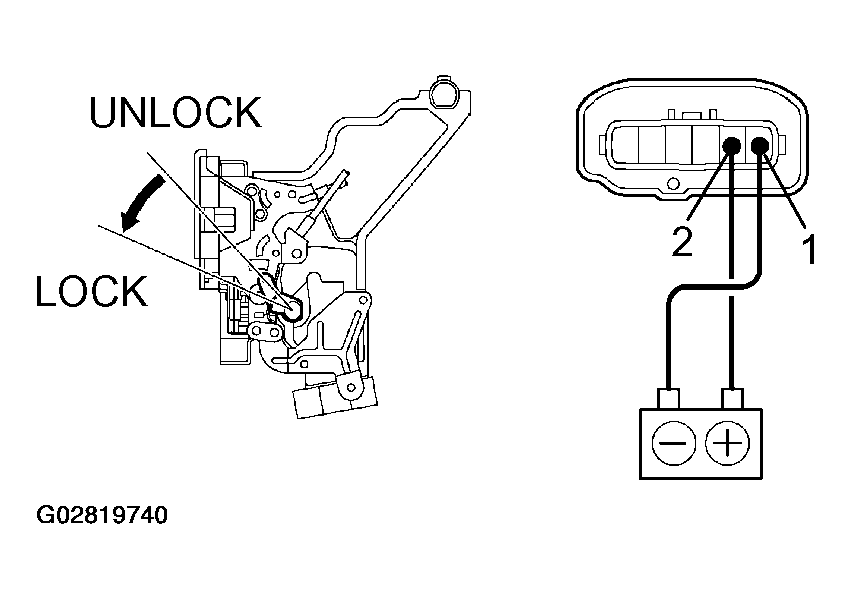

      Fig 10: Connecting Ammeter To Terminals
      G02819740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If operation is not as specified, replace the door lock assembly.

  10. Using an ammeter:

    INSPECT PASSENGER'S DOOR PTC THERMISTOR OPERATION

    1. Connect the negative (-) lead from the battery to terminal 6.

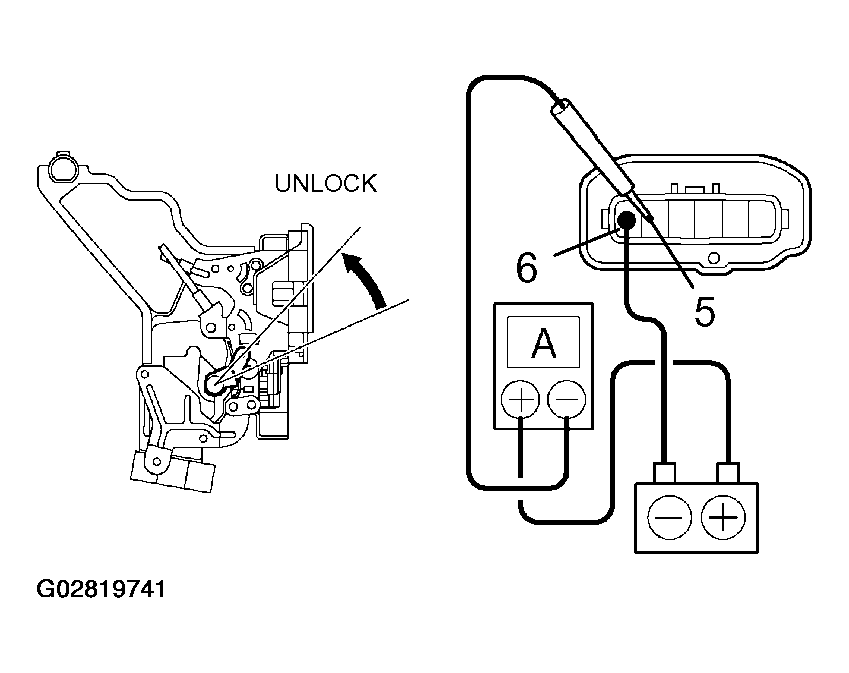

    2. Fig 11: Connecting Negative (-) Lead From Battery To Terminal 6
      G02819741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the positive (+) lead from the ammeter to terminal 5 and the negative (-) lead to battery negative (-) terminal, and check that the current changes from approximately 3.2 A to less than 0.5 A within 20 to 70 seconds.
    4. Disconnect the leads from terminals.
    5. Approximately 60 seconds later, connect the positive (+) lead from the battery to terminal 6 and the negative (-) lead to terminal 5, and check that the door lock moves to the LOCK position.

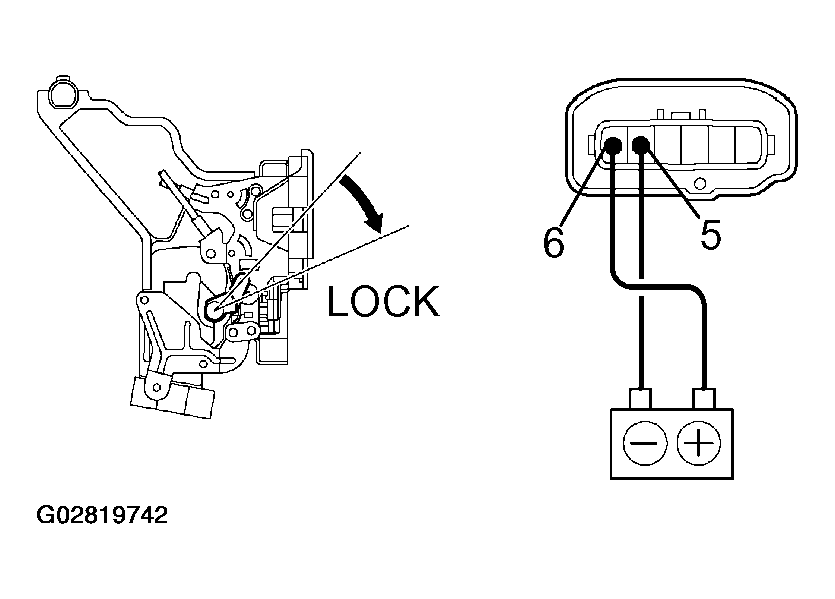

      Fig 12: Connecting Battery To Terminals
      G02819742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If operation is not as specified, replace the door lock assembly.

  11. Using an ammeter with a current-measuring probe: INSPECT DRIVER'S DOOR PTC THERMISTOR OPERATION
    1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2.
    2. Attach a current-measuring probe to either the positive (+) lead or the negative (-) lead, and check that the current changes from approximately 3.2 A to less than 0.5 A

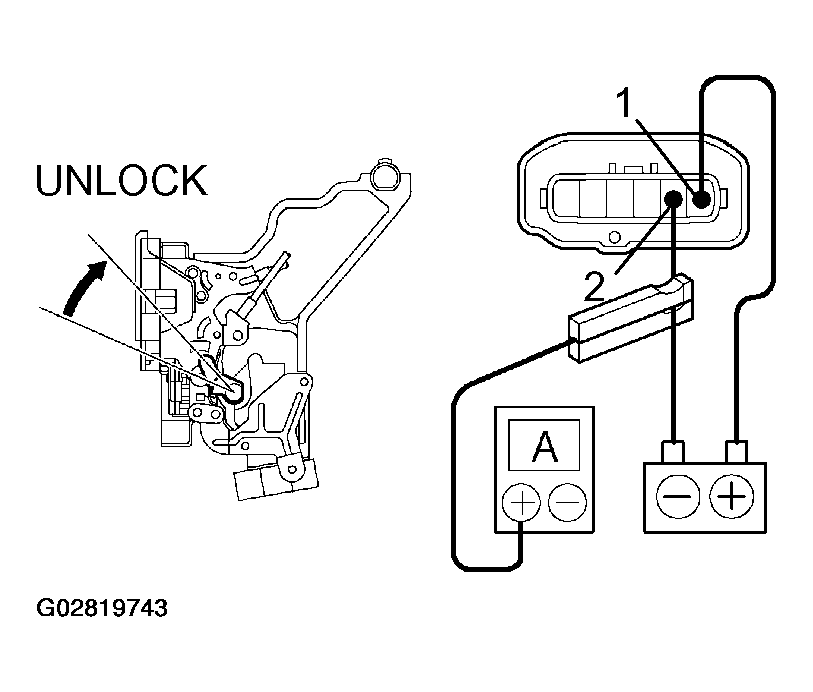

      Fig 13: Attaching Current-Measuring Probe To Either Leads
      G02819743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the leads from terminals.

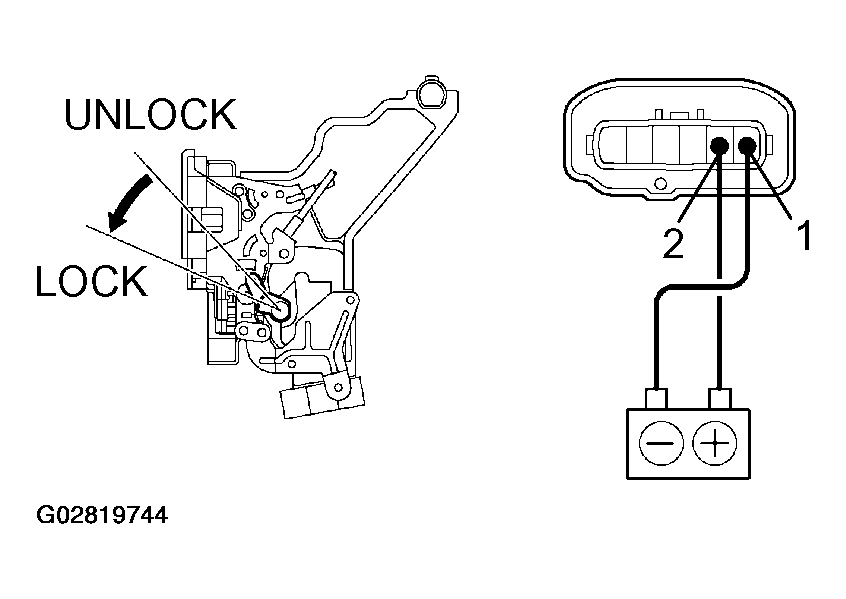

      Fig 14: Connecting Battery To Terminals
      G02819744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Approximately 60 seconds later, reverse the polarity, and check that the door lock moves to the LOCK position.

    If operation is not as specified, replace the door lock assembly.

  12. Using an ammeter with a current-measuring probe: INSPECT PASSENGER'S DOOR PTC THERMISTOR OPERATION
    1. Connect the positive (+) lead from the battery to terminal 5 and the negative (-) lead to terminal 6.
    2. Attach a current-measuring probe to either the positive (+) lead or the negative (-) lead, and check that the current changes from approximately 3.2 A to less than 0.5 A within 20 to 70 seconds.

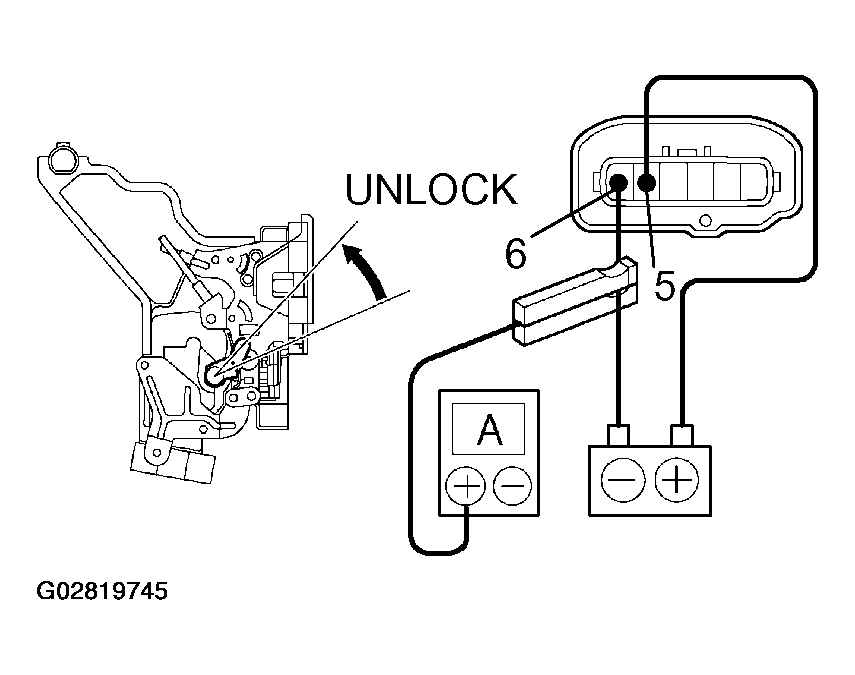

      Fig 15: Attaching Current-Measuring Probe To Either Lead
      G02819745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the leads from terminals.
    4. Approximately 60 seconds later, reverse the polarity, and check that the door lock moves to the LOCK position.

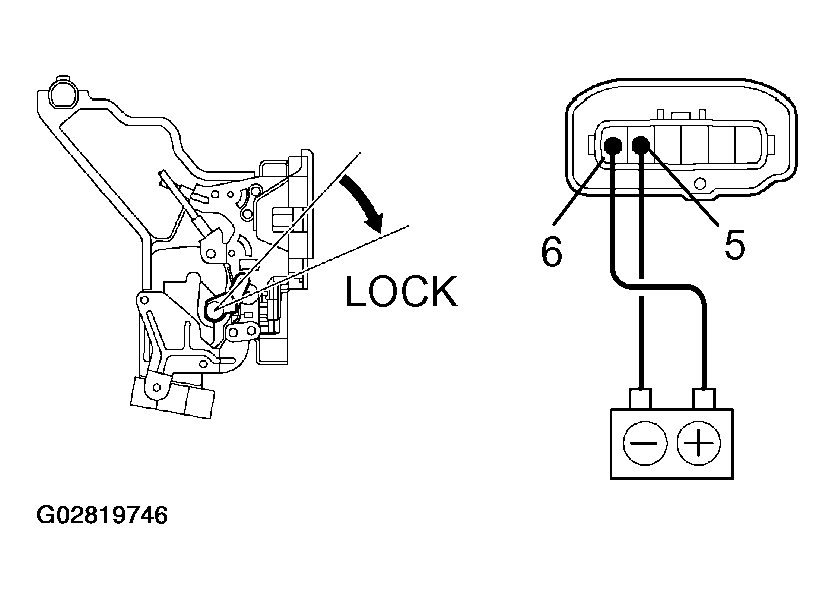

    5. Fig 16: Connecting Battery To Terminals
      G02819746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If operation is not as specified, replace the door lock assembly.

  13. Door lock signal:

INSPECT INTEGRATION RELAY OPERATION

NOTE: When the relay circuit is as specified, inspect the door lock signal.
  1. Connect the positive (+) lead from the voltmeter to terminal A13 and the negative (-) lead to terminal A1.
  2. Set the door lock control switch to the UNLOCK and check that the voltage increases from 0 V to battery positive voltage for approximately 0.2 seconds.

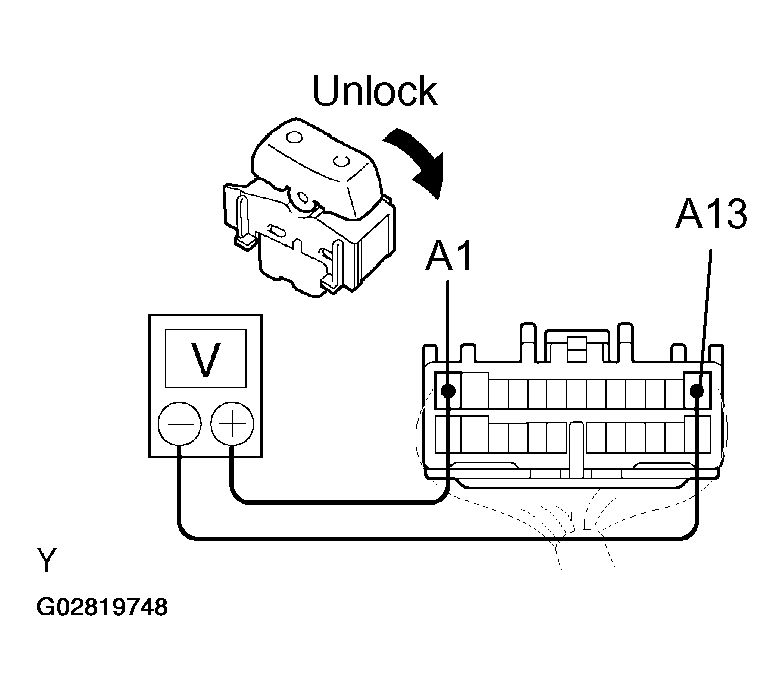

    Fig 17: Setting Door Lock Control Switch To UNLOCK
    G02819748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Reverse the polarity of the voltmeter leads.
  4. Set the door lock control switch to the LOCK and check that the voltage increases from 0 V to battery positive voltage for approximately 0.2 seconds.

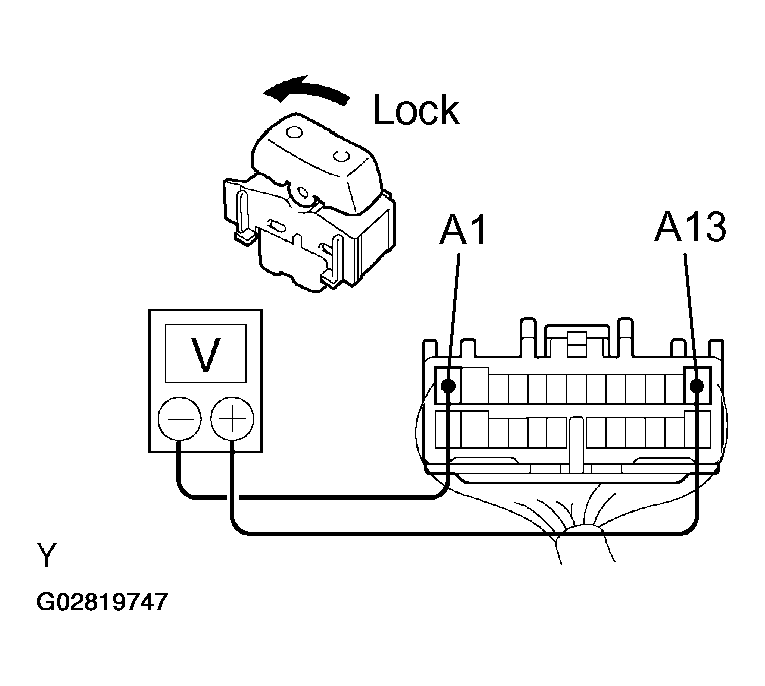

    Fig 18: Setting Door Lock Control Switch To LOCK
    G02819747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If operation is not as specified, replace the relay.
