Home >> Toyota >> 2003 >> Camry SE, 2.4 E, Standard >> Repair and Diagnosis >> Steering >> Steering Column >> Steering Column >> Components

Steering Column: Components

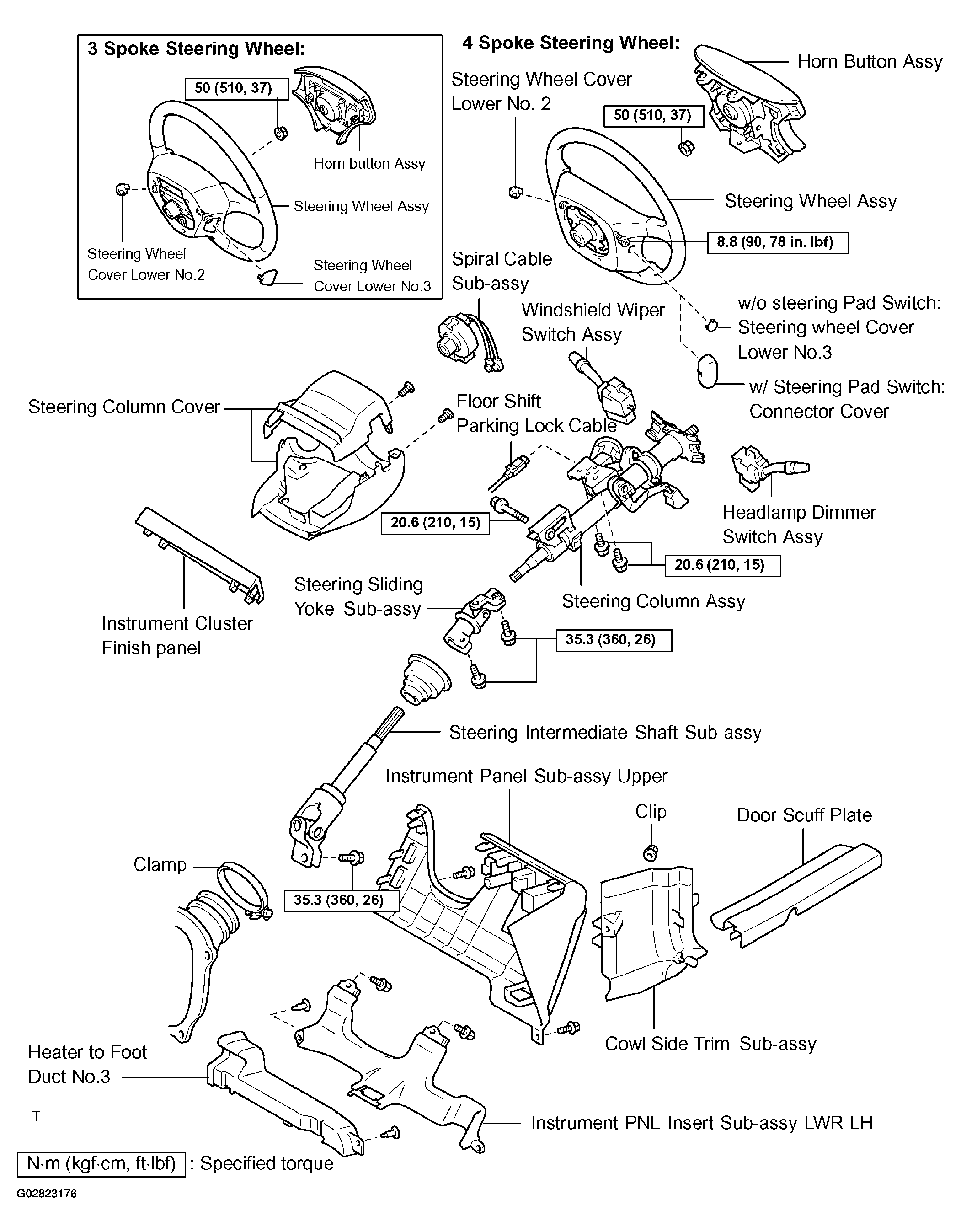

Fig 1: Exploded View of Steering Column Components
G02823176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

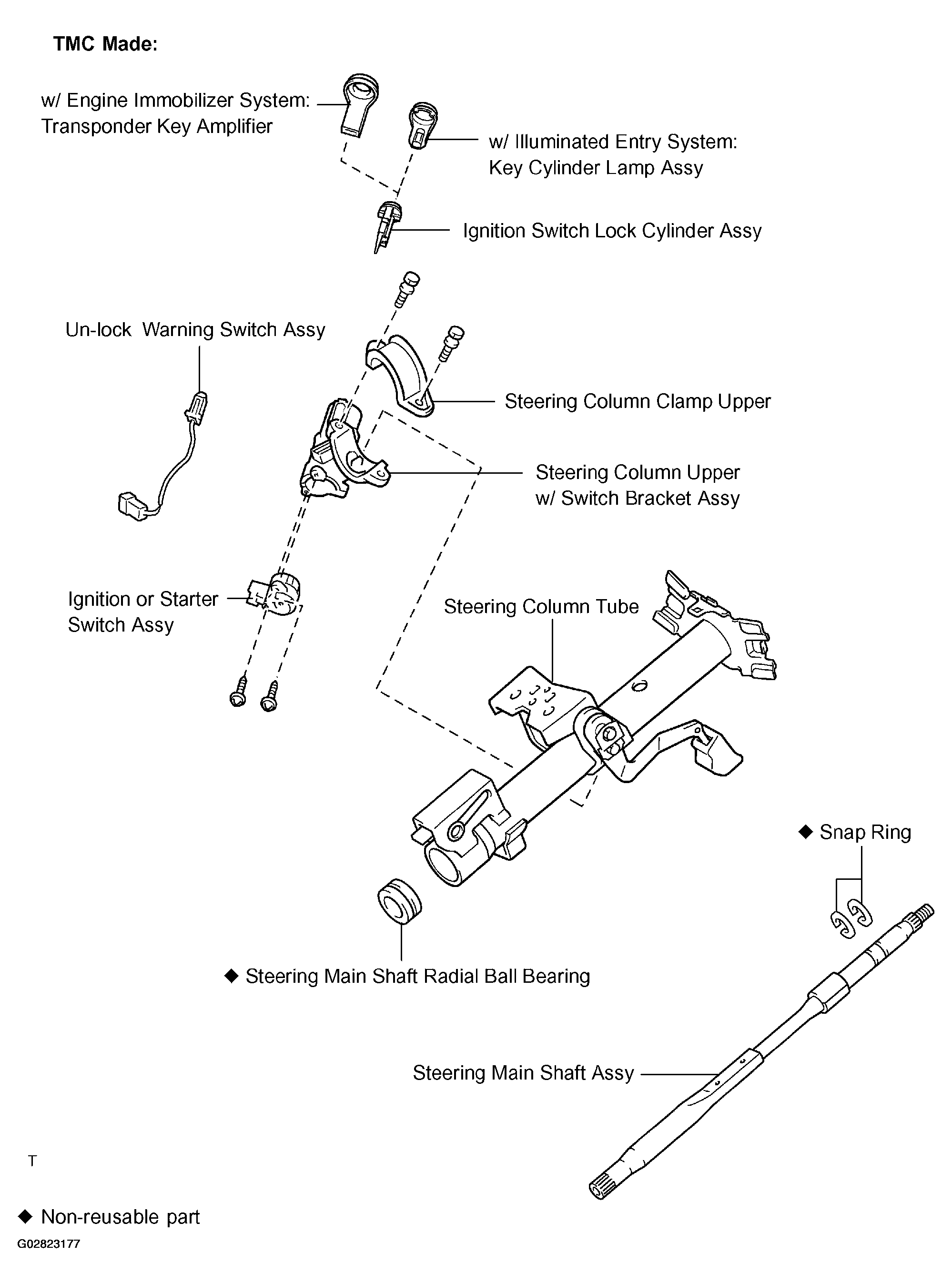

Fig 2: Locating Steering Column Components (TMC Made)
G02823177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

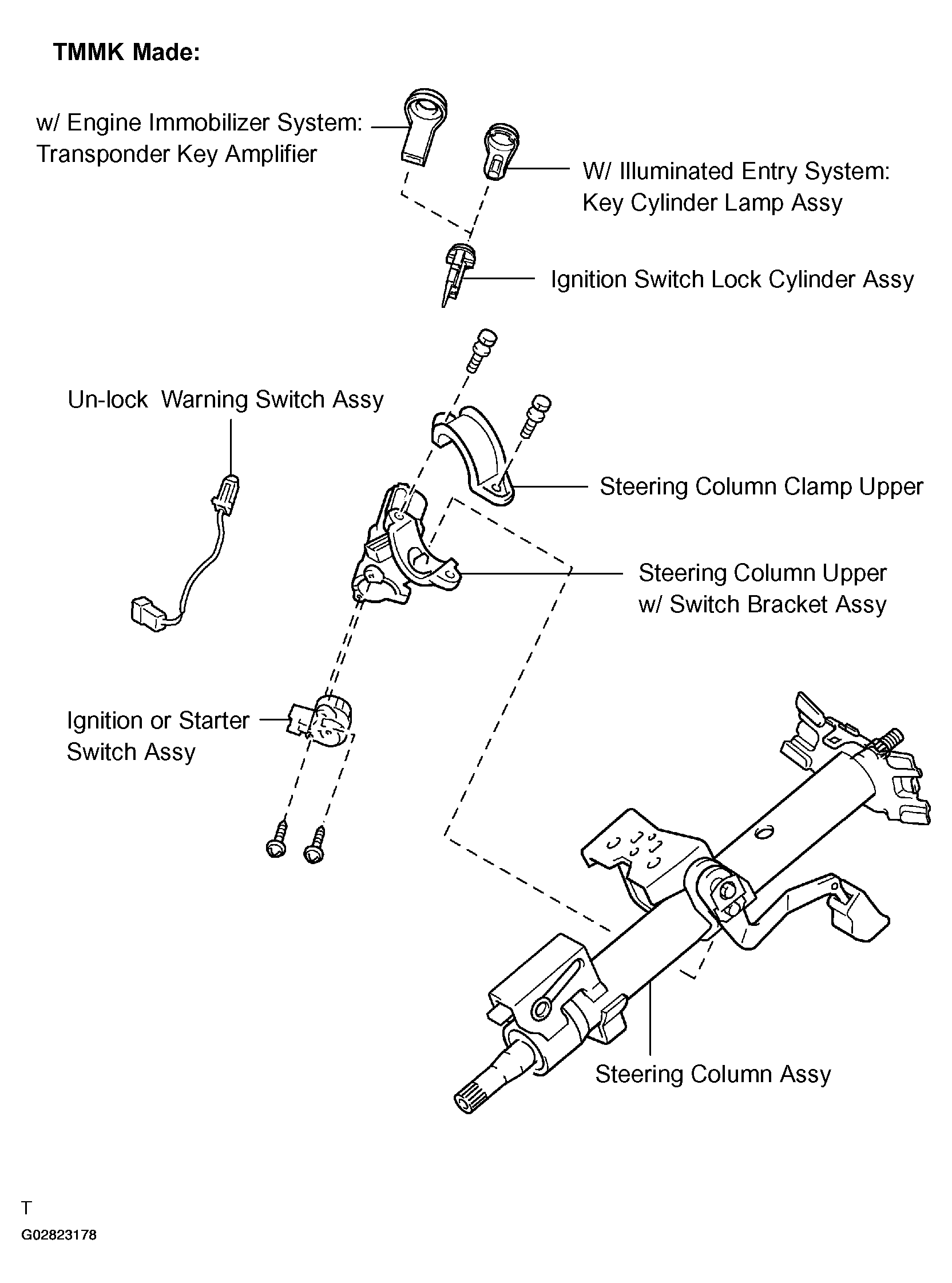

Fig 3: Locating Steering Column Components (TMMK Made)
G02823178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
