Automatic Transmission Shift Lock System (Floor Shift): Location

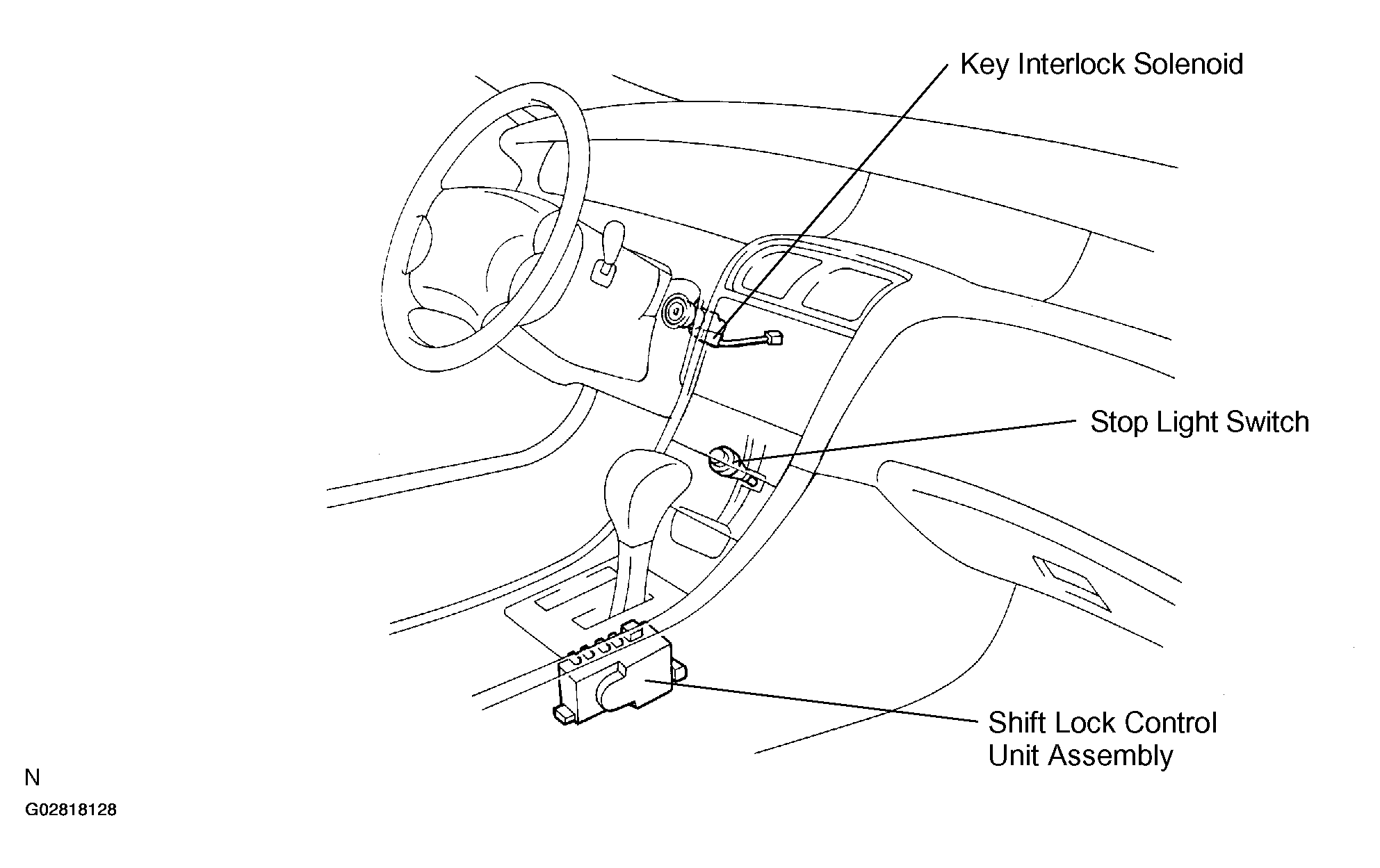

Fig 1: Identifying Shift Lock System Components

G02818128

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
