Automatic Transmission - Diagnostics
>>
Terminals Of ECM
Terminals Of ECM

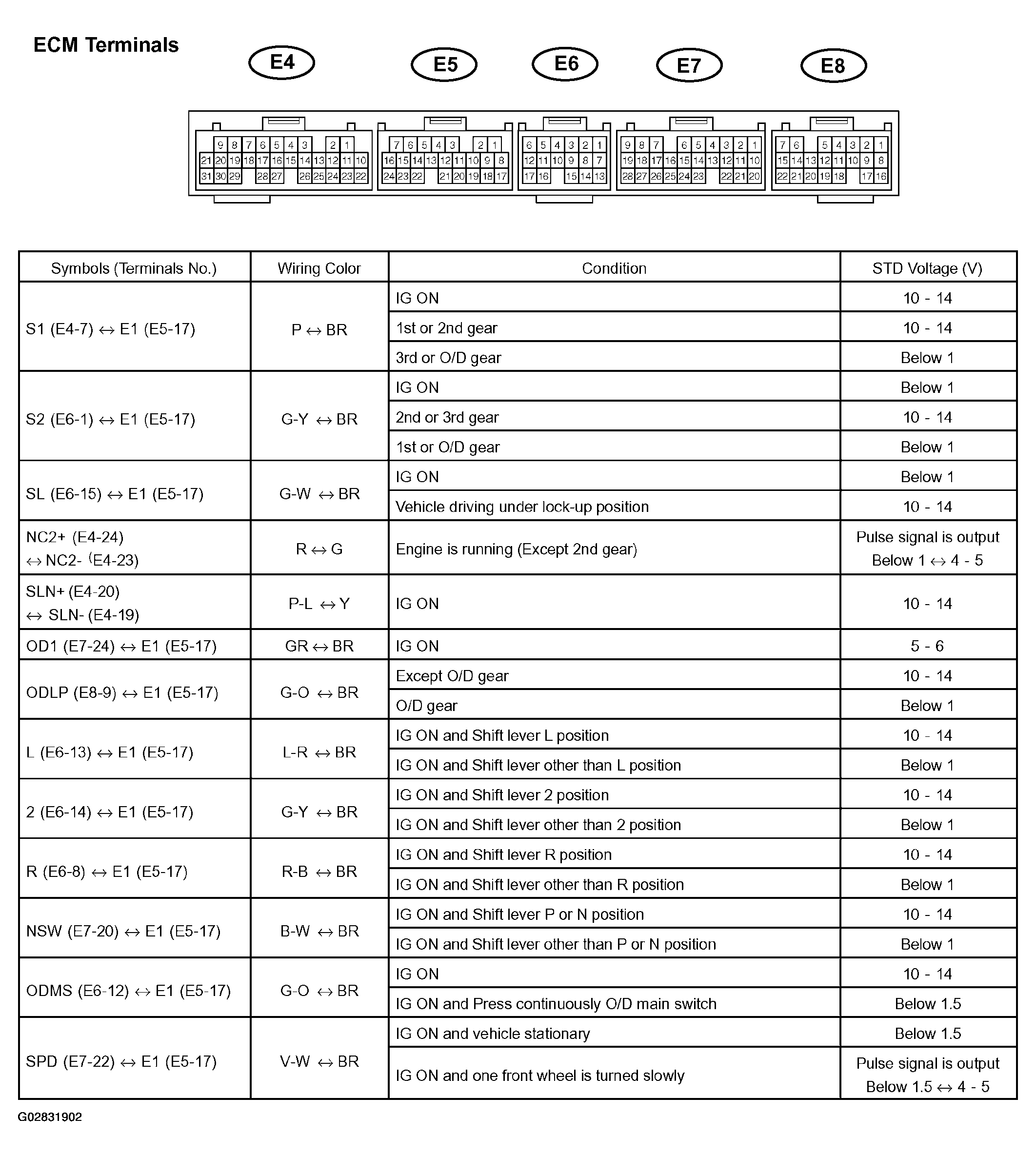

Fig 1: Identifying ECM Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
