Solar Sensor: Inspection

  1. REMOVE SOLAR SENSOR

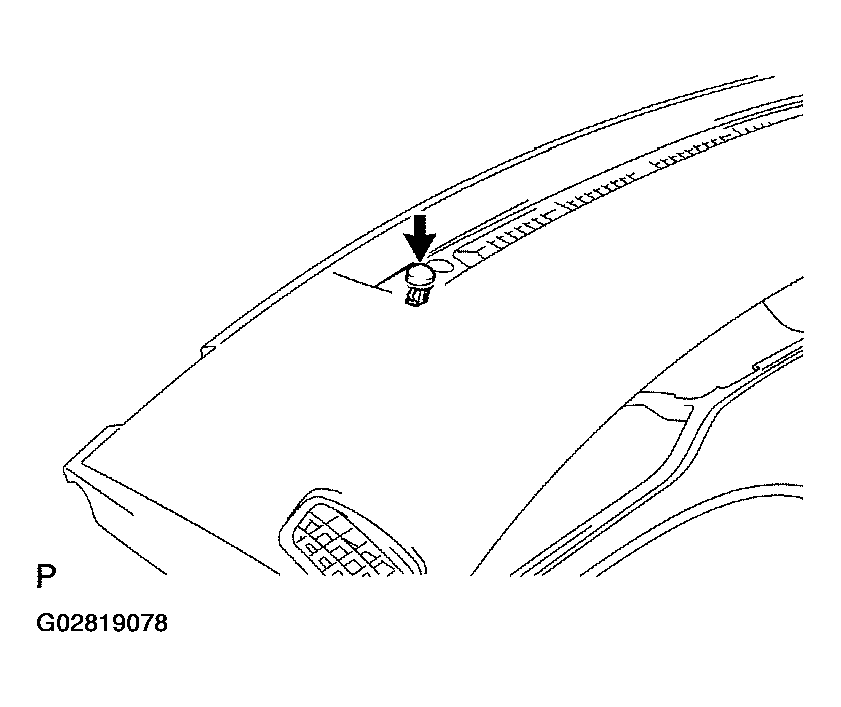

    Fig 1: Removing Solar Sensor
    G02819078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Using a screwdriver, pull out the sensor, then disconnect the connector.

    NOTE: Tape the screwdriver tip before use.
  2. INSPECT SOLAR SENSOR CIRCUIT (See  SOLAR SENSOR CIRCUIT (DRIVER SIDE)  or  SOLAR SENSOR CIRCUIT (PASSENGER SIDE)  )
  3. INSTALL SOLAR SENSOR

    Install the solar sensor, then connect the connector.
