Backup Light System: Location

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

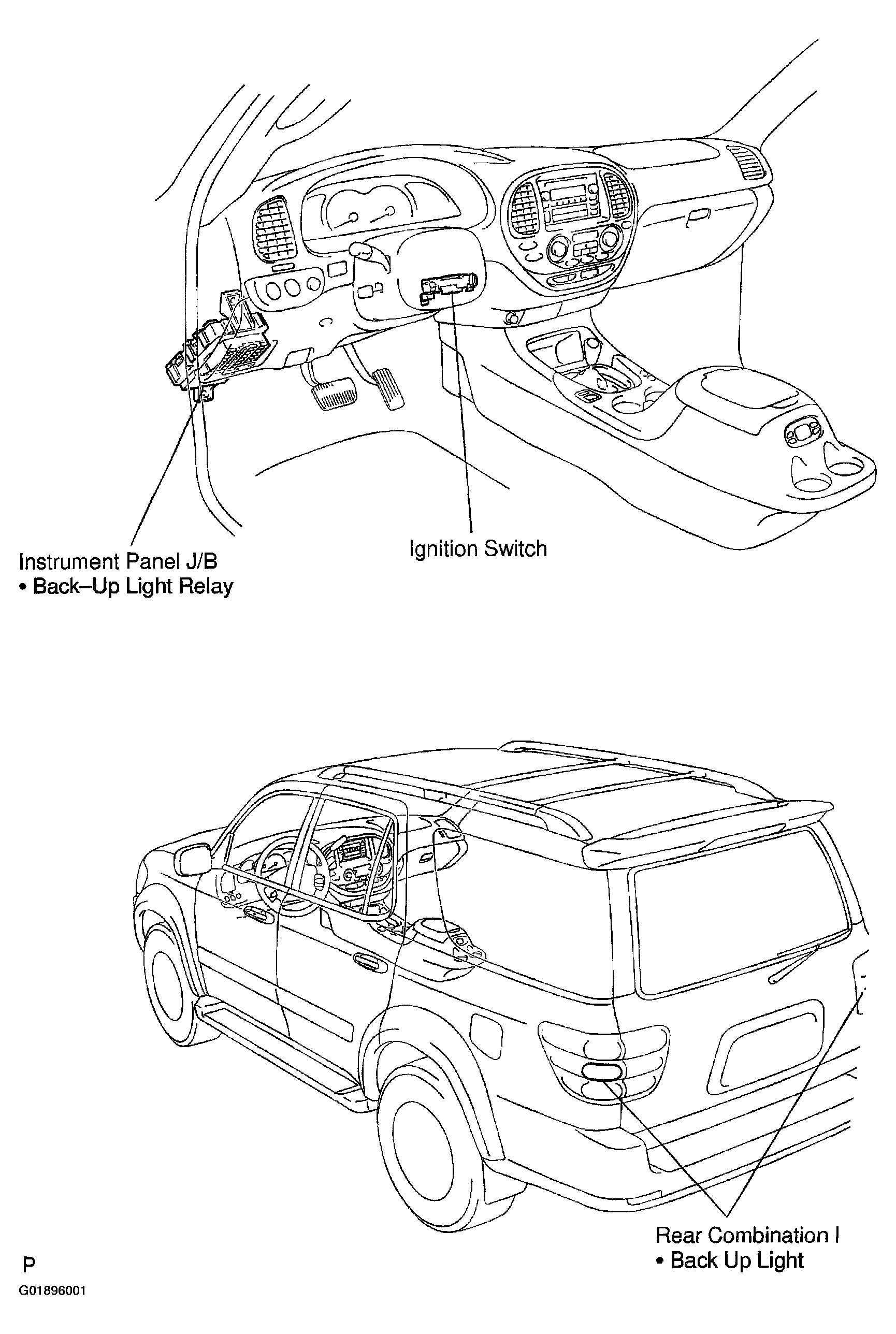

Fig 1: Locating Backup Light System Components
G01896001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

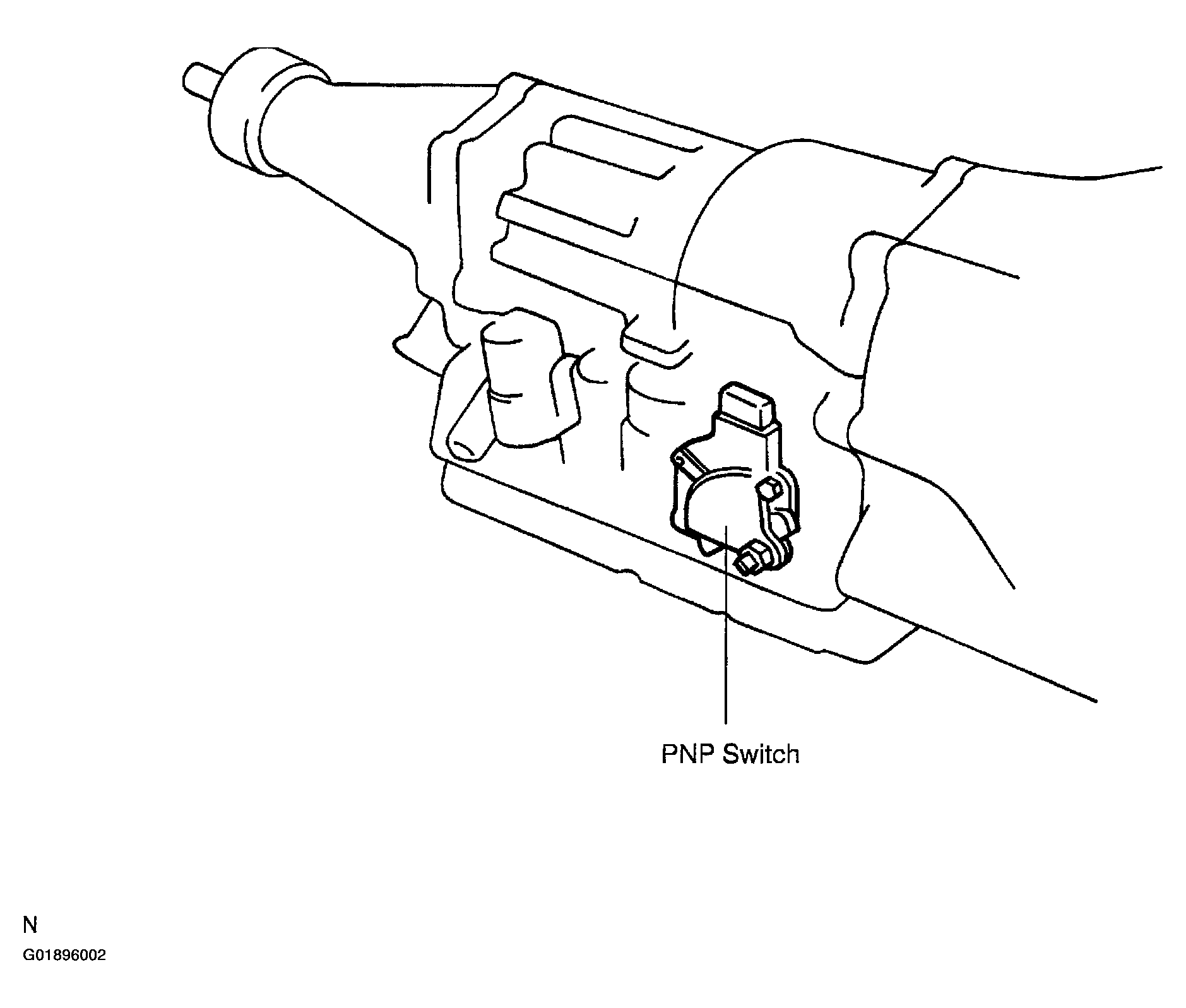

Fig 2: Locating Park/Neutral Position Switch
G01896002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
