Diagnosis & Repair

For diagnosis and repair, see Fig 1 and Fig 2 .

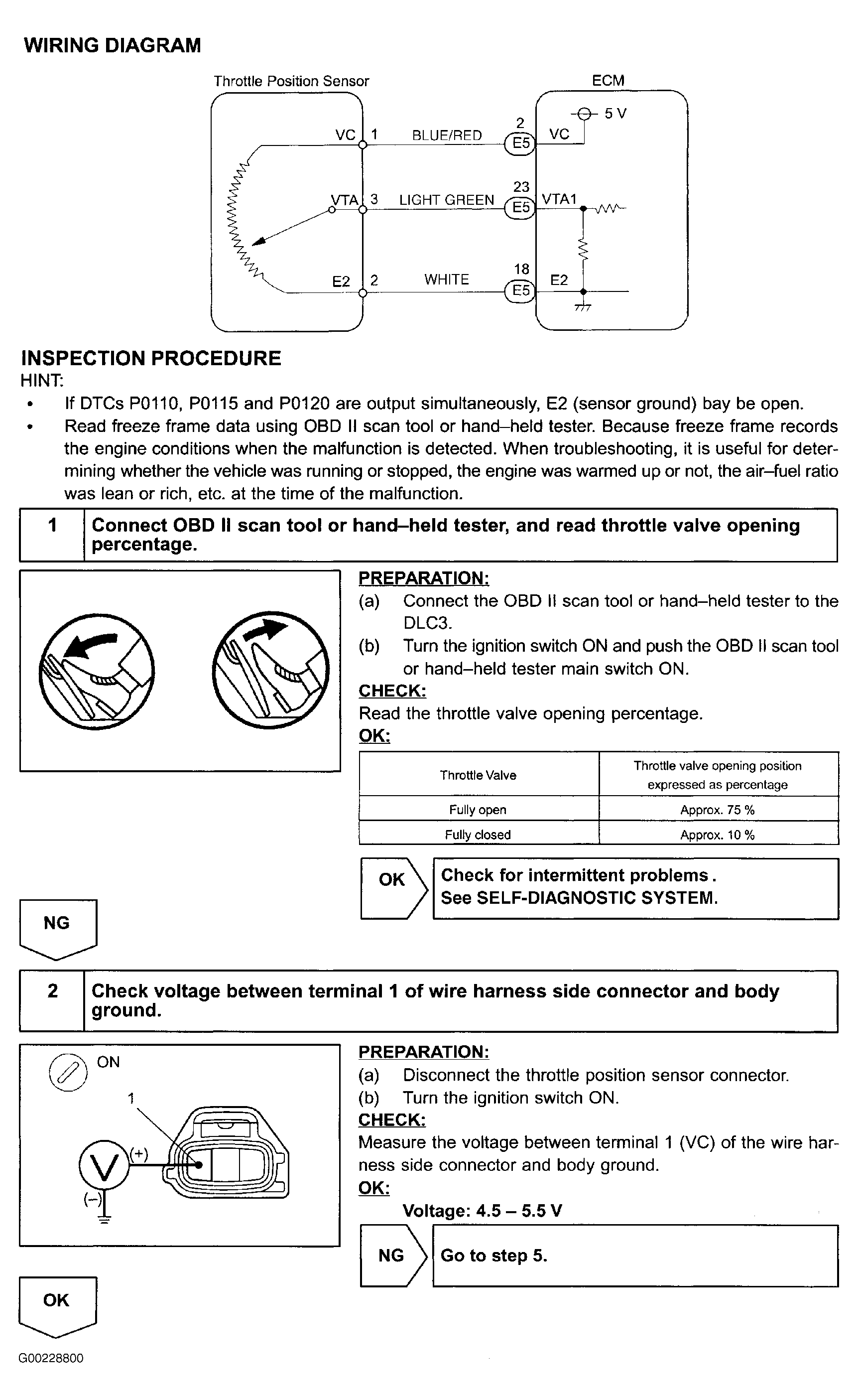

Fig 1: DTC P0120 Diagnostic Procedure (1 Of 2)
G00228800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

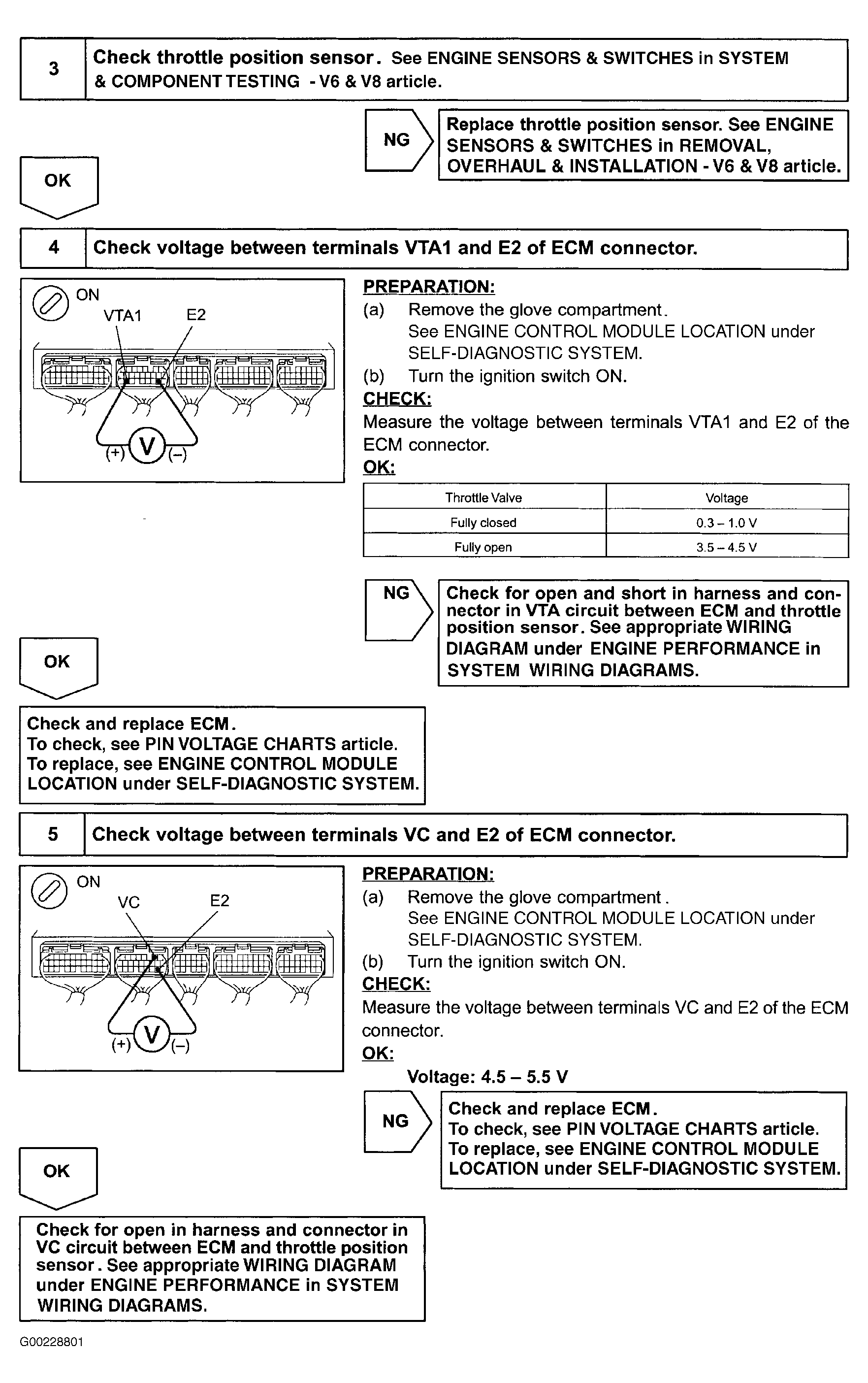

Fig 2: DTC P0120 Diagnostic Procedure (2 Of 2)
G00228801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
