Home >> Toyota >> 2003 >> Avalon XLS >> Repair and Diagnosis >> Electrical >> Gauges >> Power Outlet >> Location

Power Outlet: Location

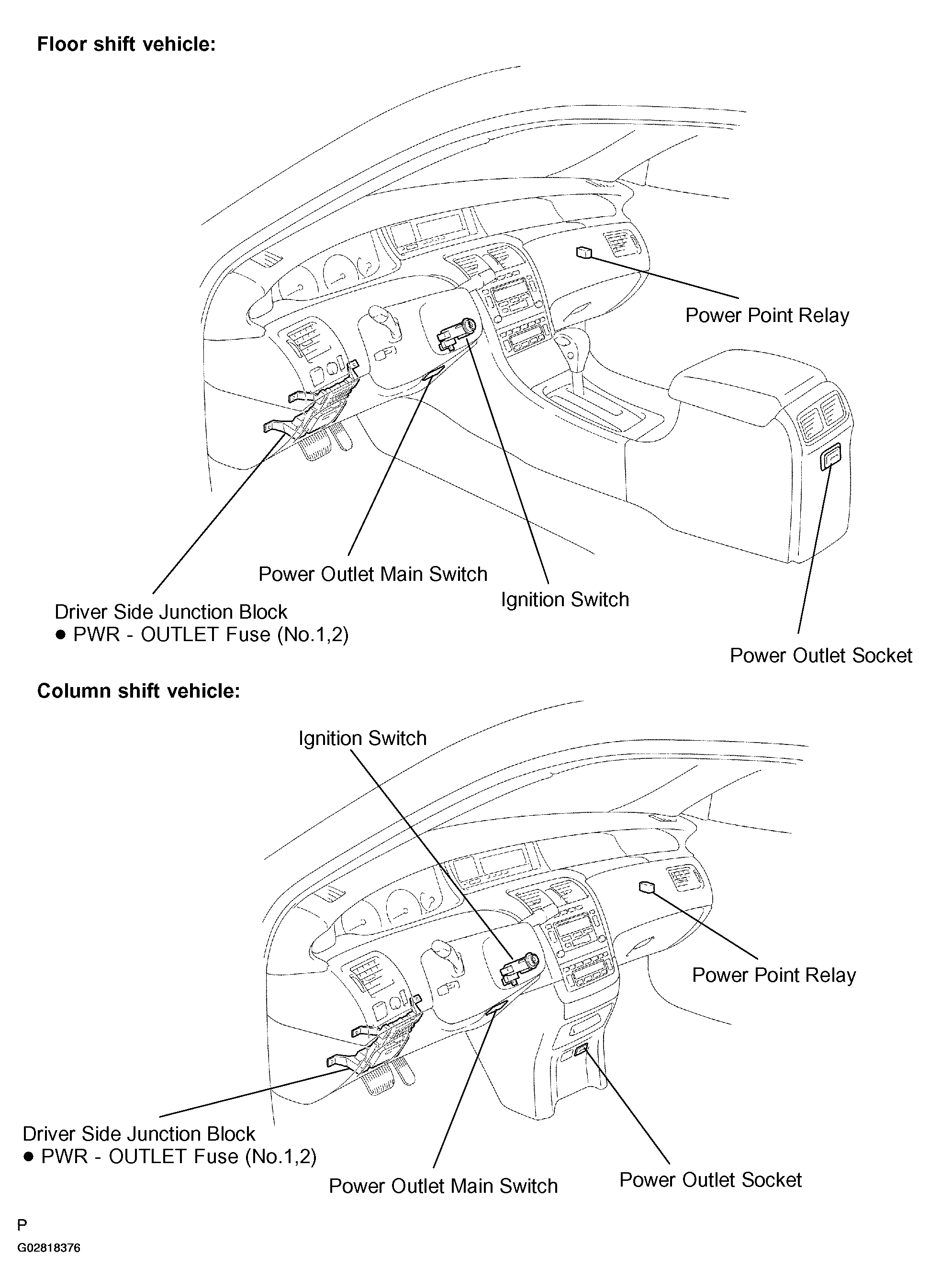

Fig 1: Identifying Power Outlet Components

G02818376

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
