Combination Meter: Location

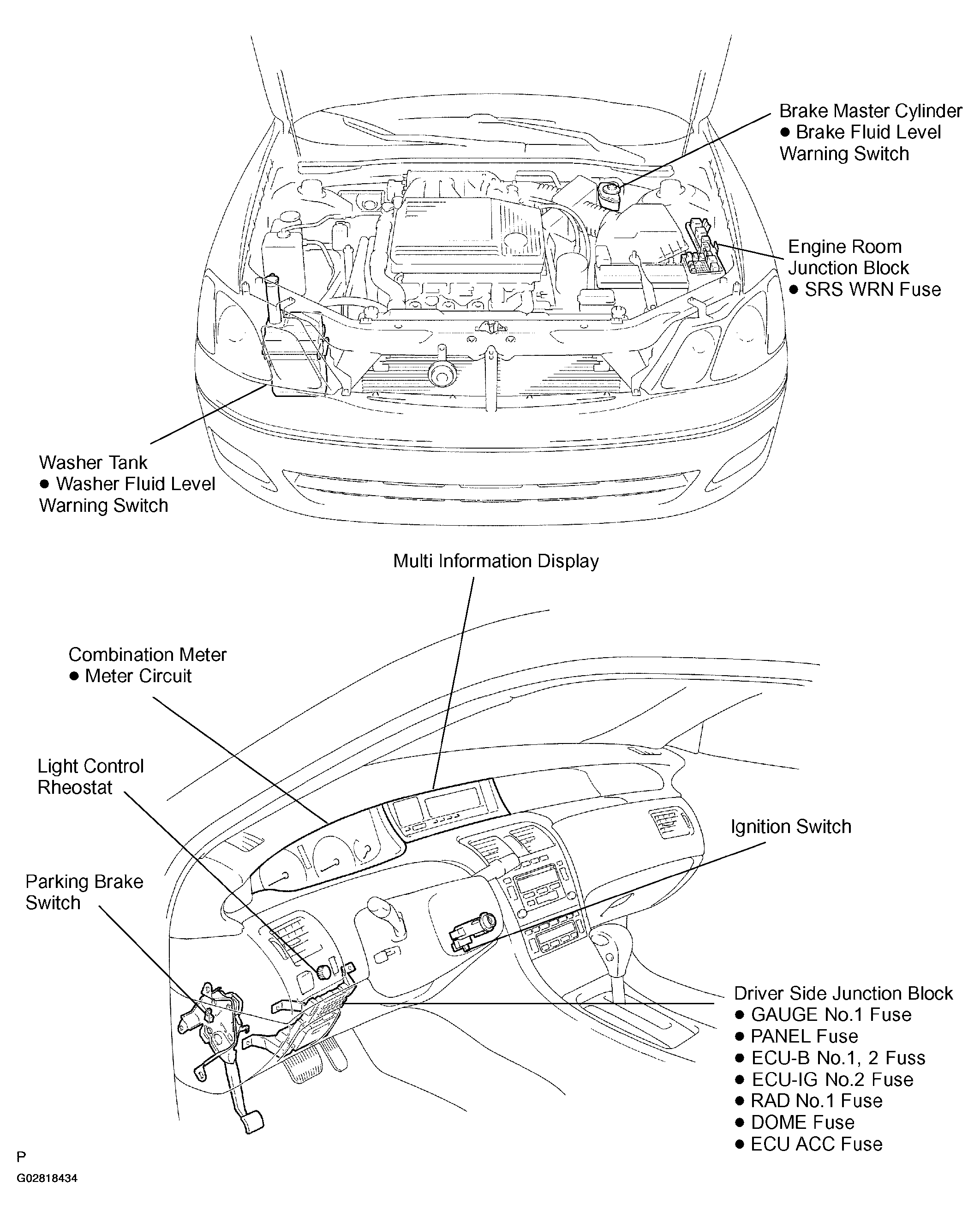

Fig 1: Identifying Combination Meter Operational Components (1 Of 2)
G02818434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

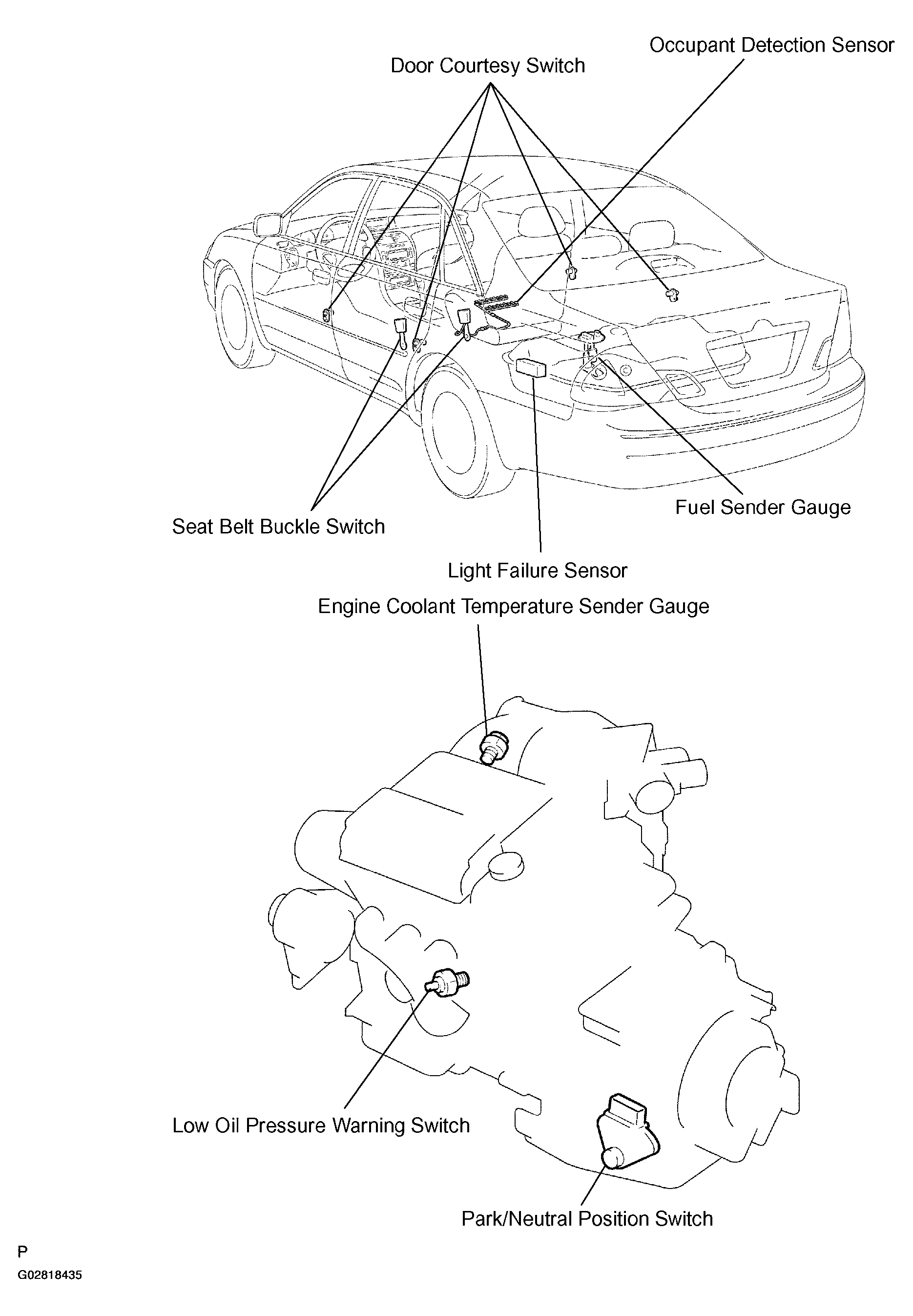

Fig 2: Identifying Combination Meter Operational Components (2 Of 2)
G02818435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
