Abs Actuator: Removal

Fig 1: Removing Air Cleaner Assembly

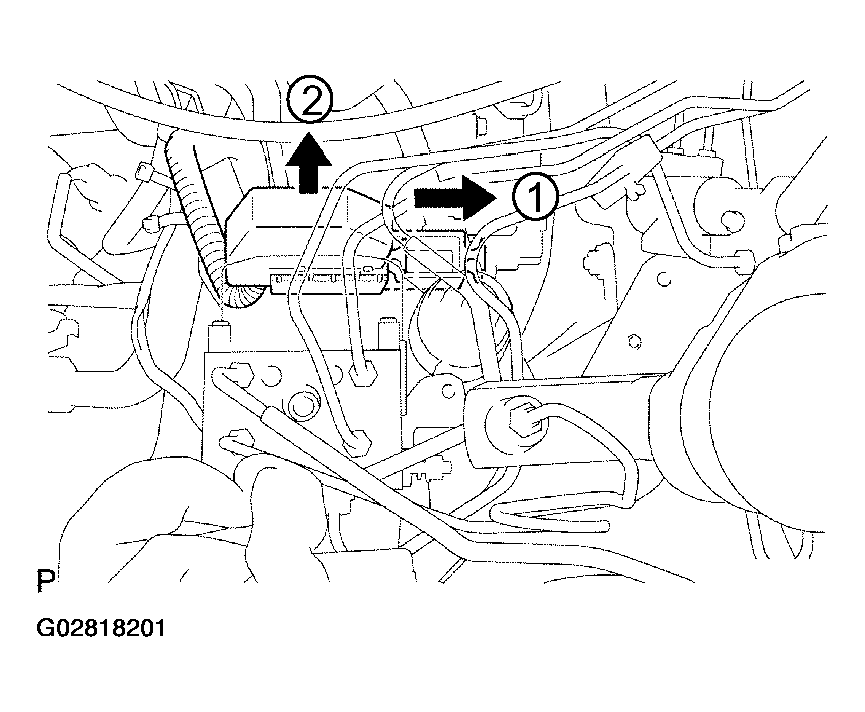

DISCONNECT CONNECTOR
Pull out the release bar, and disconnect the connector.

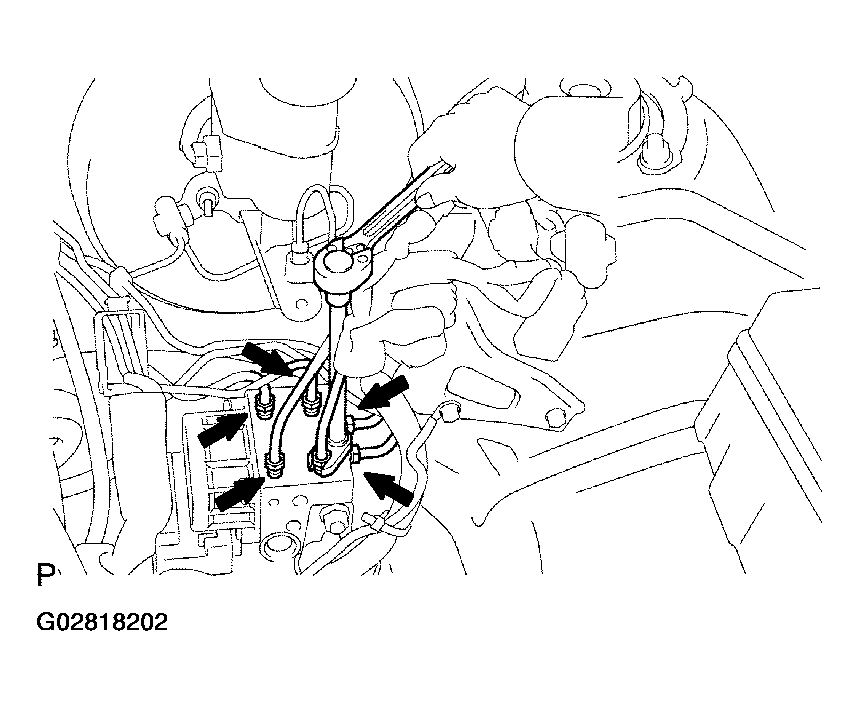

DISCONNECT BRAKE LINES
Using SST, disconnect the 6 brake lines from the ABS actuator.

Fig 2: Disconnecting Brake Lines Using SST
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST 09023-00100

Torque: 15 N.m (155 kgf.cm, 11 ft.lbf)

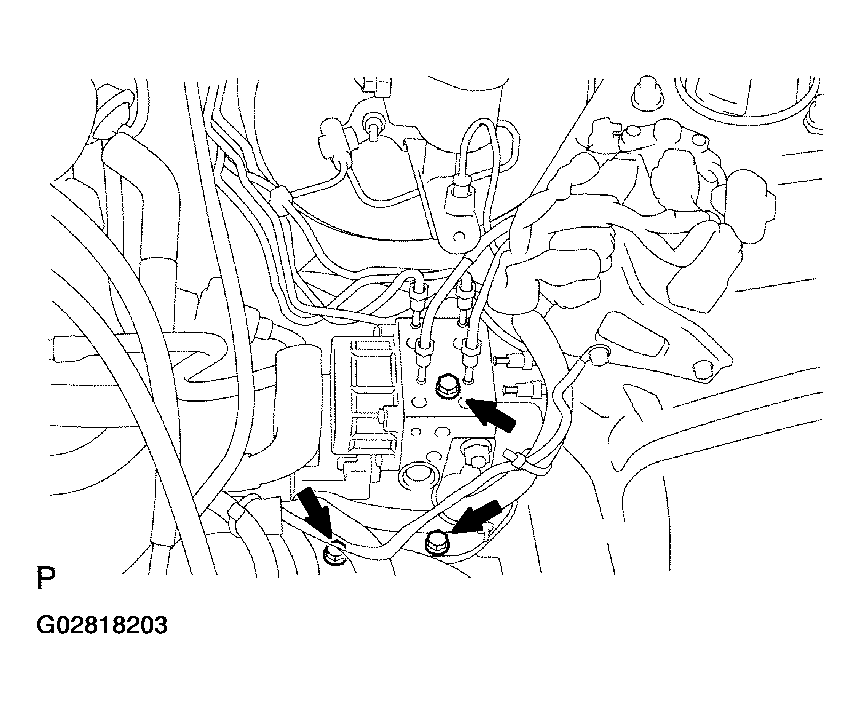

REMOVE ABS ACTUATOR ASSEMBLY
Remove the 3 bolts and ABS actuator assembly.

Torque: 19 N.m (195 kgf.cm, 14 ft.lbf)
REMOVE ABS ACTUATOR
1. Remove the 2 nuts and ABS actuator.

  Fig 3: Removing ABS Actuator Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 13 N.m (130 kgf.cm, 9 ft.lbf)
2. Remove the 2 holders and 3 cushions from the ABS actuator.
