Home >> Toyota >> 2003 >> Avalon XLS >> Repair and Diagnosis >> Body & Frame >> Seats >> Power Seat Control System (W/O Driving Position Memory >> Location

Power Seat Control System (W/O Driving Position Memory: Location

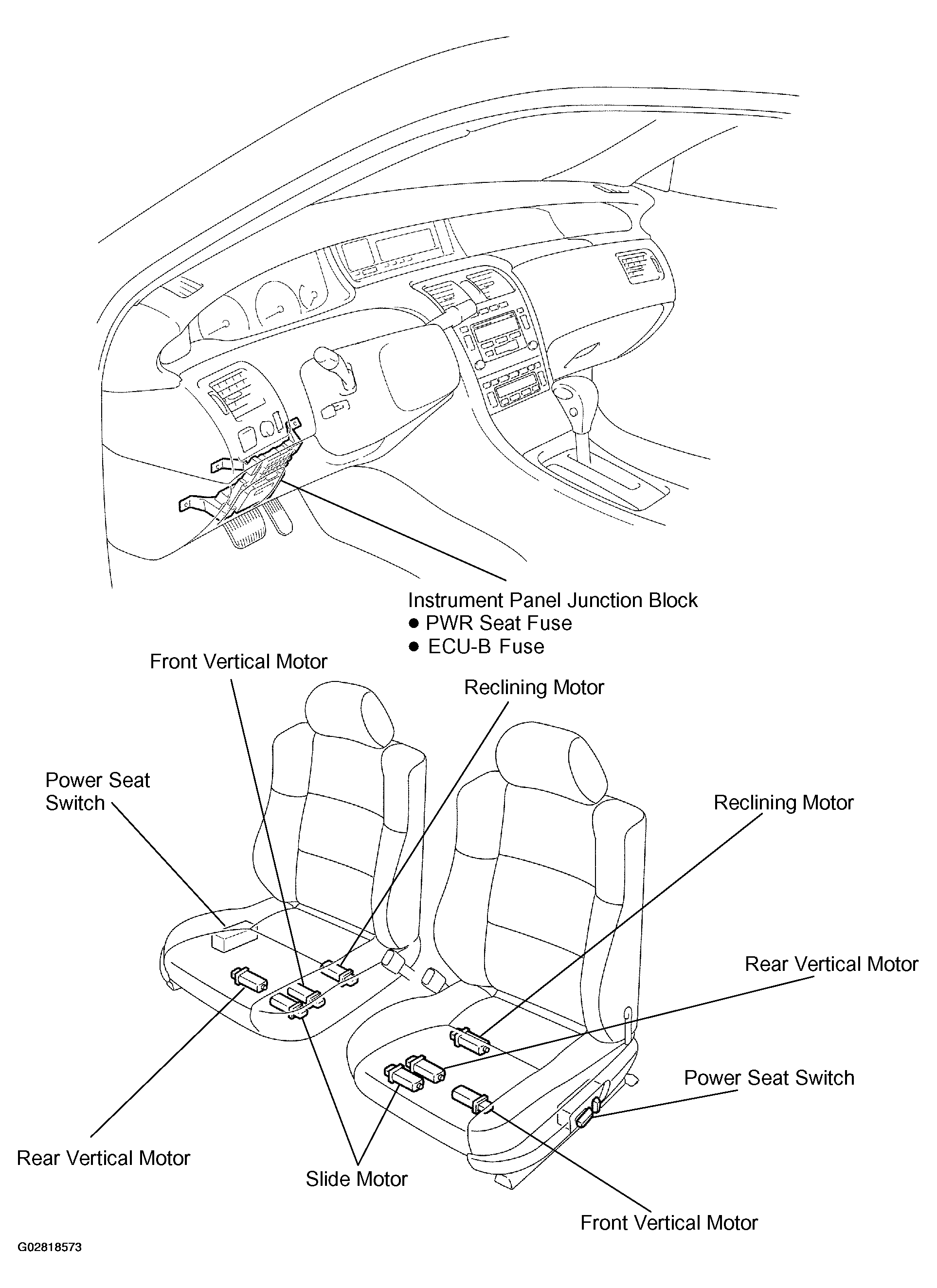

Fig 1: Identifying Power Seat Control System - W/O Driving Position Memory

G02818573

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
