Outside Rearview Mirror: Components

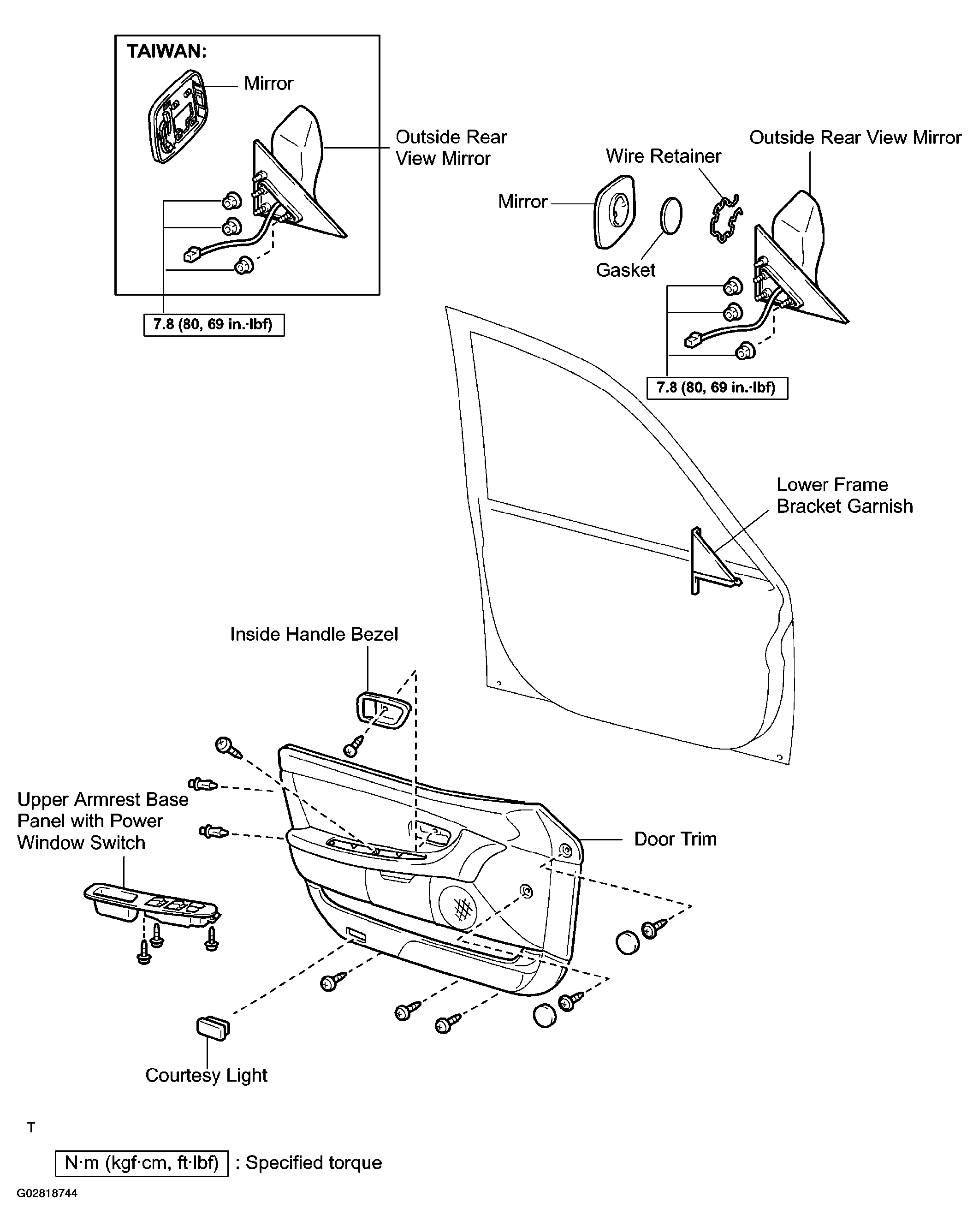

Fig 1: Identifying Components For Outside Rear View Mirror Removal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
