Engine Immobilizer System: Location

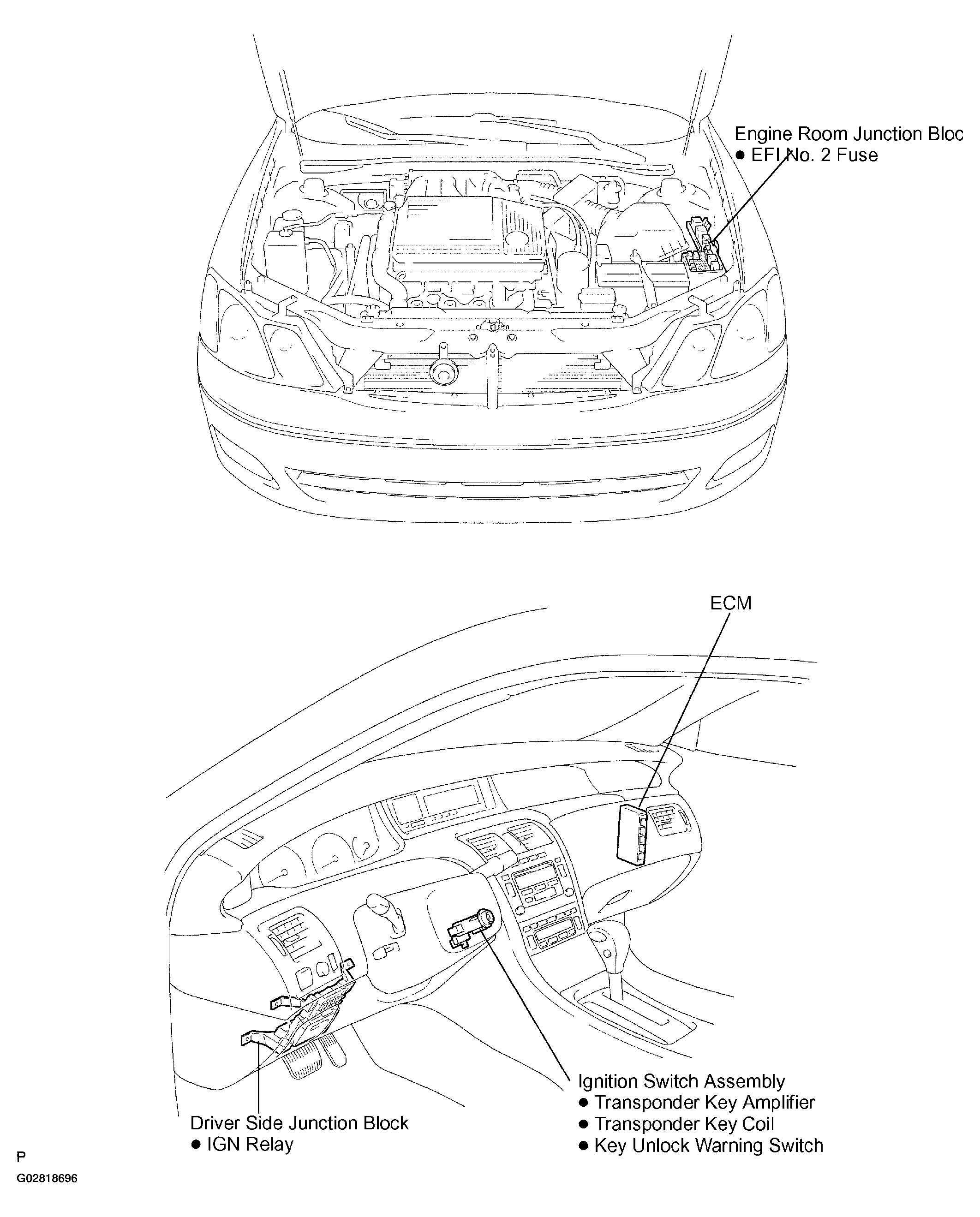

Fig 1: Identifying Engine Immobilizer System Components

G02818696

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
