Front Wiper System & Washer System: Installation

INSTALL WINDOW WASHER NOZZLES
INSTALL HOOD INSULATOR
INSTALL WIPER MOTOR
1. Install the wiper motor to the wiper link with the 3 bolts.
  Torque: 7.5 kgf.cm (76 kgf.cm, 66 in..lbf)
2. Connect the wiper link to the wiper motor.
INSTALL FRONT WIPER MOTOR & LINK ASSEMBLY
1. Place the front wiper motor & link assembly into the cowl panel.
  NOTE: Snow clutch should be in the normal condition. If snow clutch position is changed into the winter condition, recharge it into the normal condition.
2. Set the front wiper motor & link assembly aligning the installation holes and tighten the bolts in the order shown in the illustration.

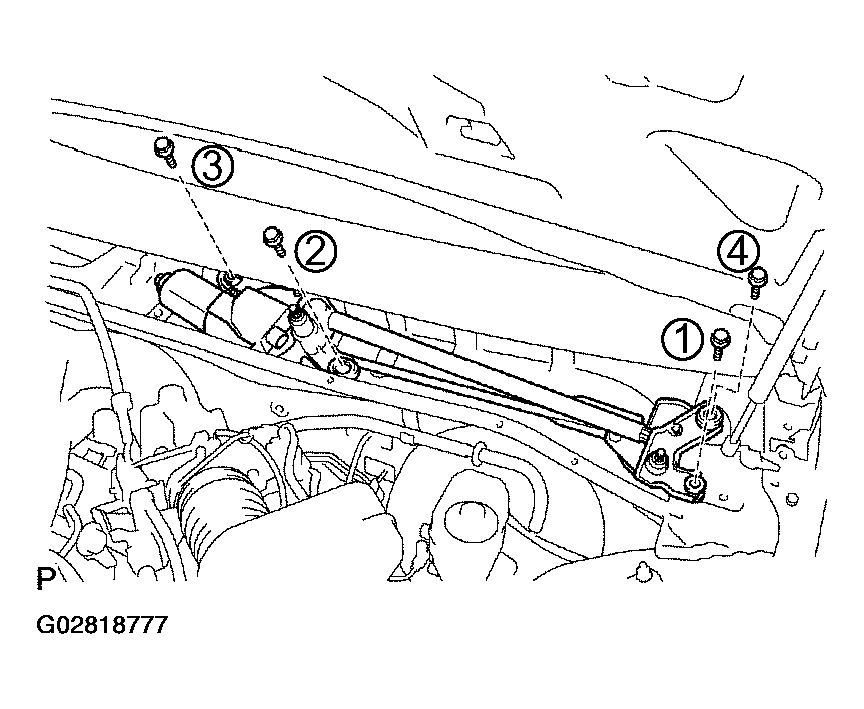

  Fig 1: Identifying Front Wiper Motor & Link Assembly Bolt Tightening Order
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 7.0 kgf.cm (71 kgf.cm, 62 in..lbf)
3. Install the wire harness clamp, then connect the connector.
INSTALL COWL TOP VENTILATOR LOUVER
INSTALL HOOD TO COWL TOP SEAL
INSTALL WIPER ARMS
1. Operate the wiper motor once and turn the wiper switch OFF.
2. Install the wiper arms and tighten nuts by hand.
3. Adjust the installation position of the wiper arms to the position as shown in the illustration.

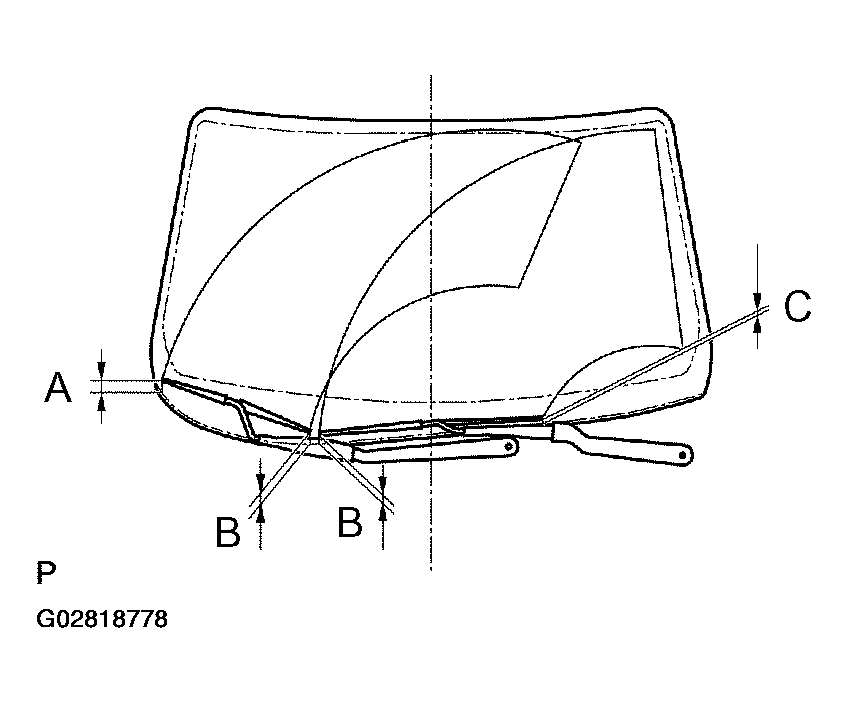

  Fig 2: Identifying Installation Position Of Wiper Arms
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  A: 52 mm (2.05 in.)

  B:30 +/- 10 mm (1.18 +/- 0.39 in.)

  C: 21.3 mm (0.839 in.)
4. Torque the 2 nuts.
  Torque: 24 kgf.cm (248 kgf.cm, 18 ft.lbf)
5. Install the 2 wiper arm head caps.
