Home >> Toyota >> 2003 >> Avalon XLS >> Repair and Diagnosis >> Accessories & Equipment >> Wiper/Washer Systems >> Front Wiper System & Washer System >> Components

Front Wiper System & Washer System: Components

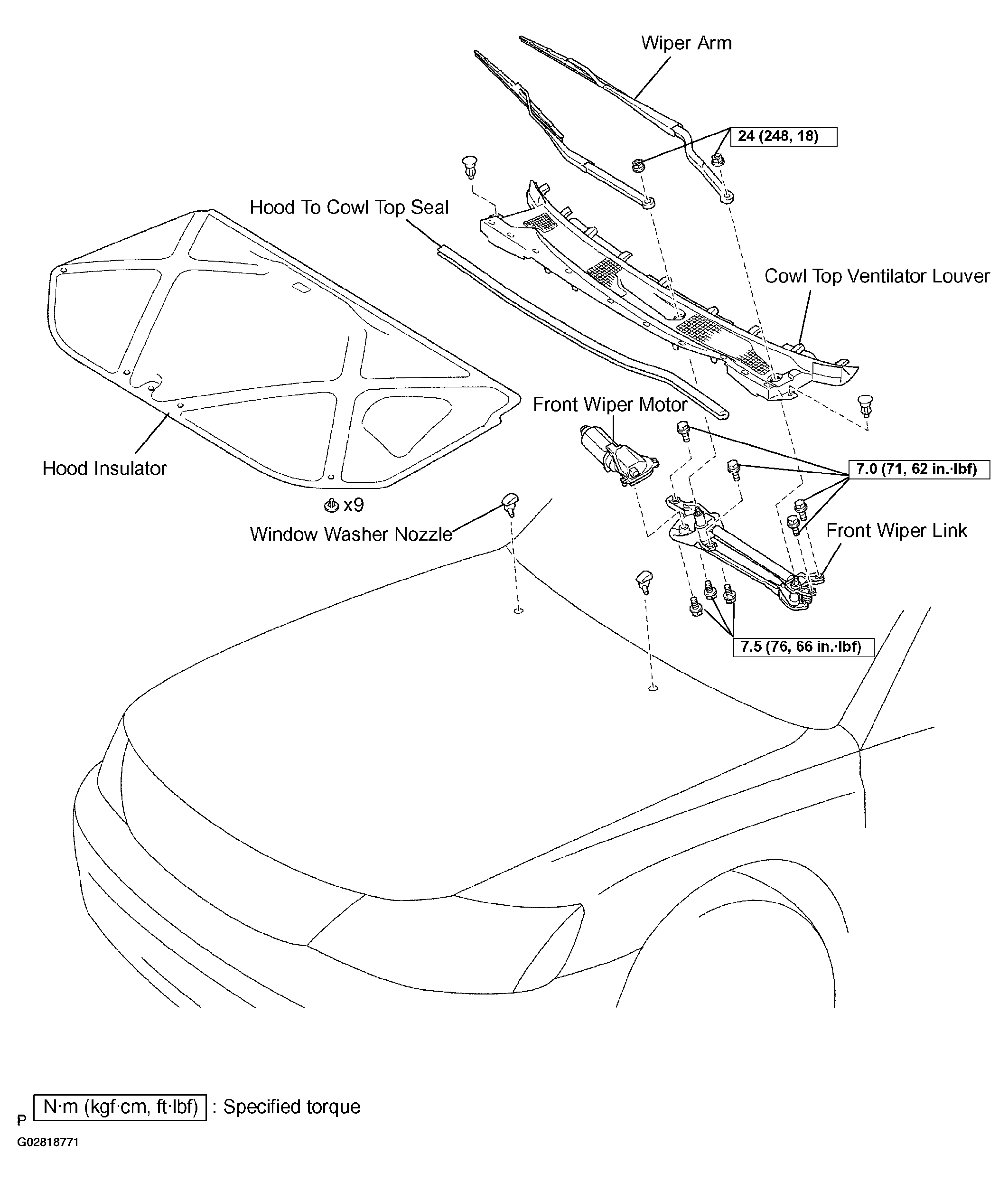

Fig 1: Identifying Front Wiper & Washer System Components

G02818771

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
