Abs Actuator: Components

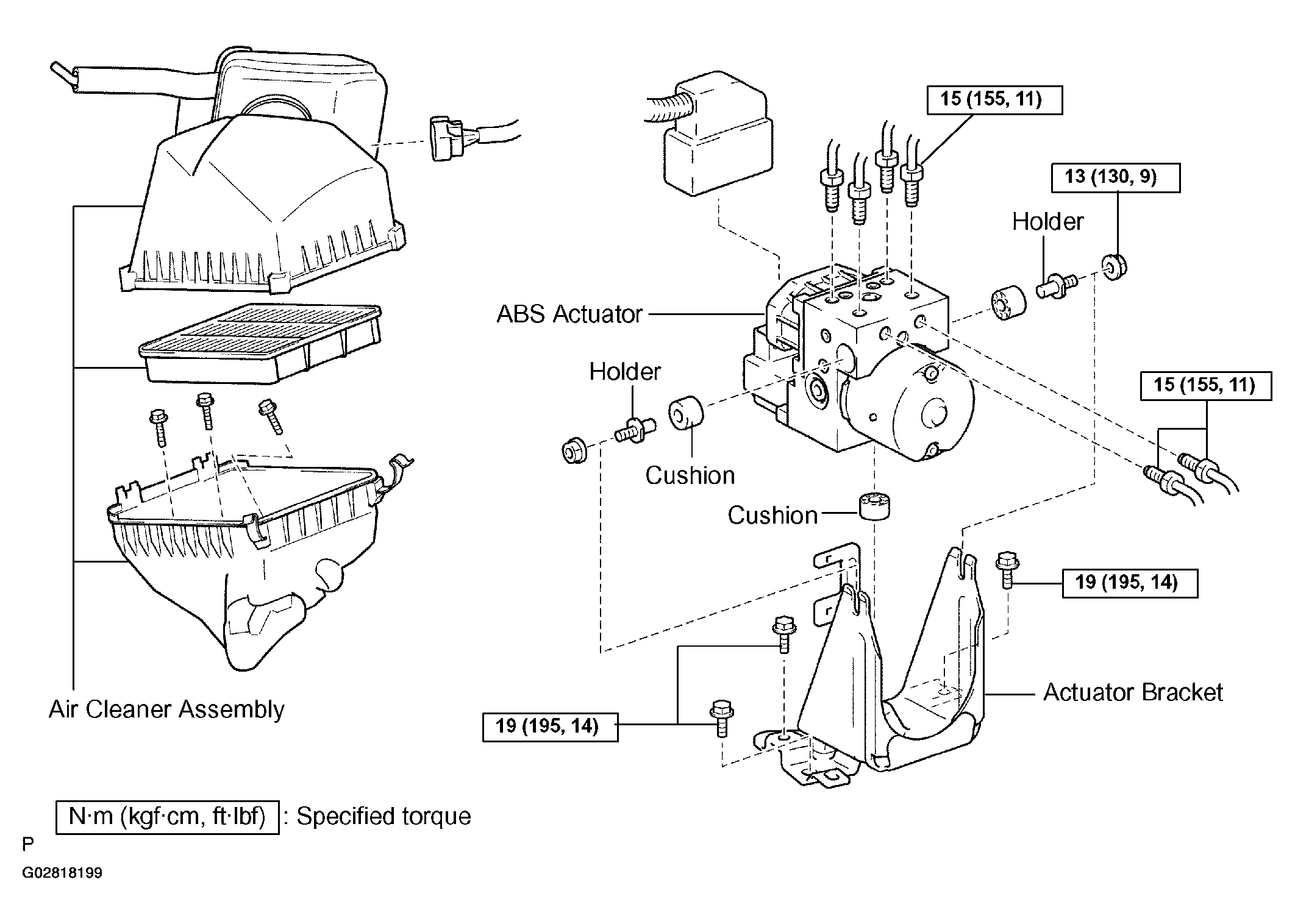

Fig 1: Identifying Components For ABS Actuator Removal
G02818199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

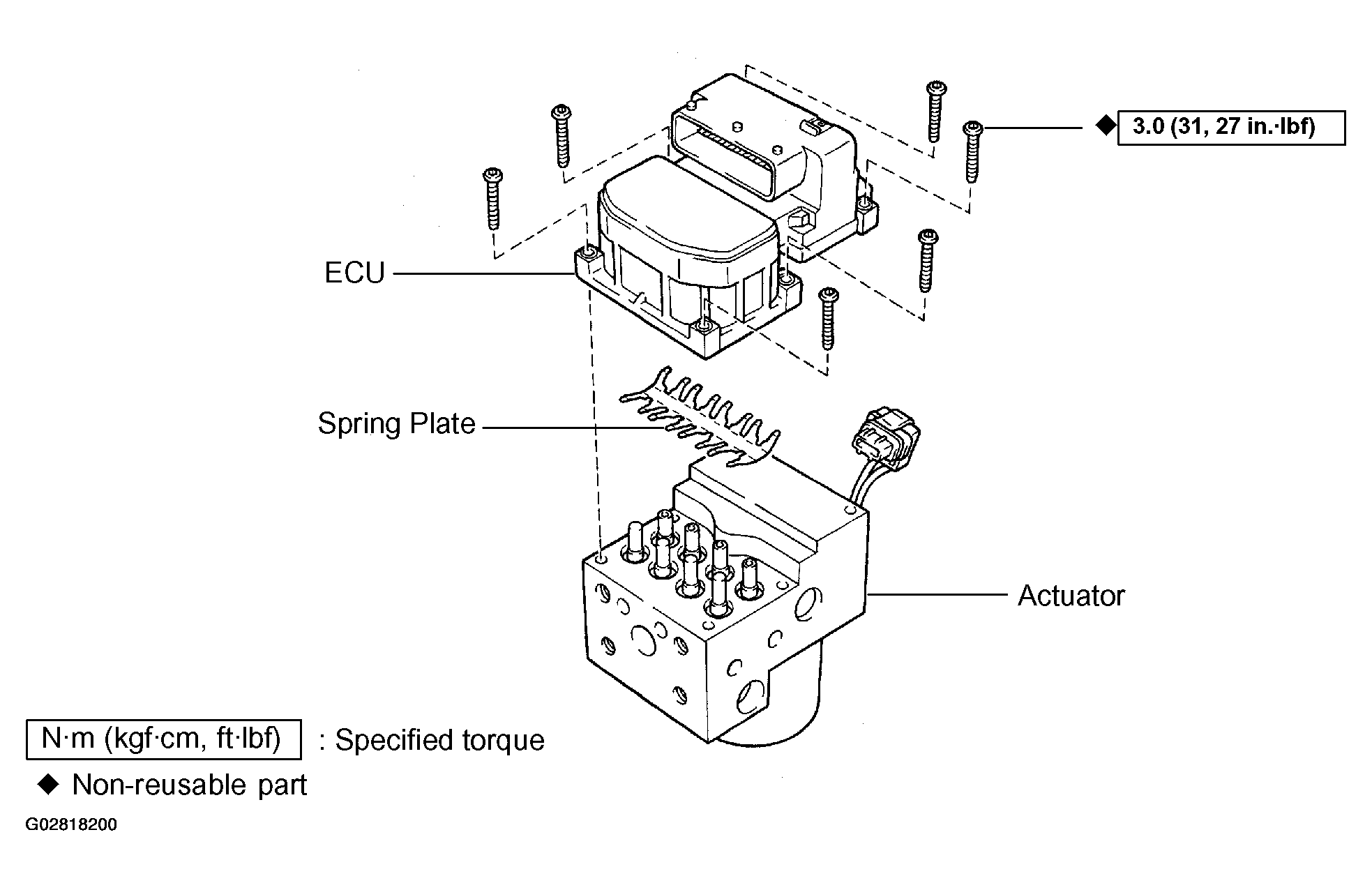

Fig 2: Exploded View Of ABS Actuator
G02818200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
