Quarter Window Glass: Components

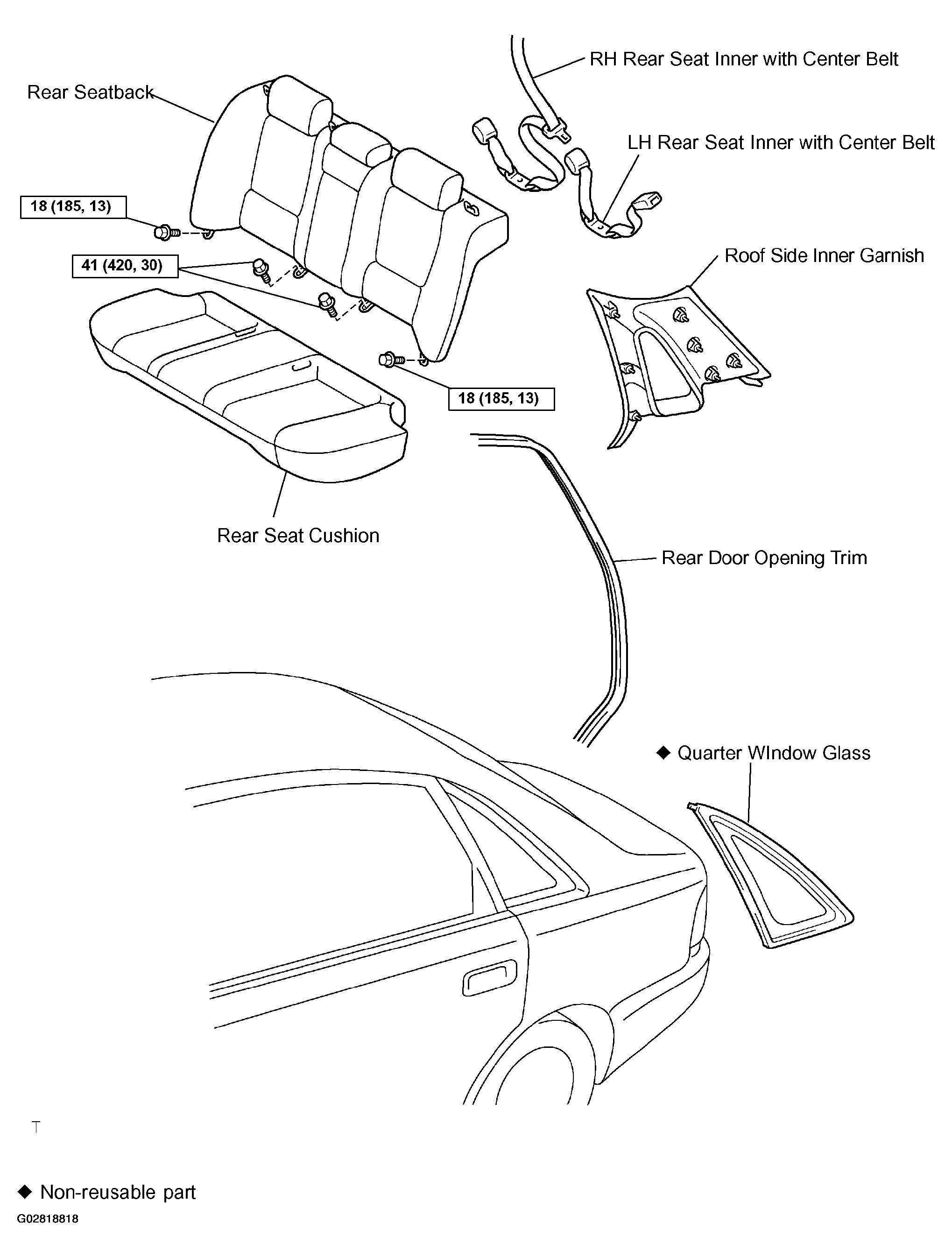

Fig 1: Identifying Components For Quarter Window Glass Removal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
