Power Steering Gear: Inspection

NOTE: When using a vise, do not overtighten it.

INSPECT STEERING RACK

Using a dial indicator, check the steering rack for runout and for teeth wear and damage.

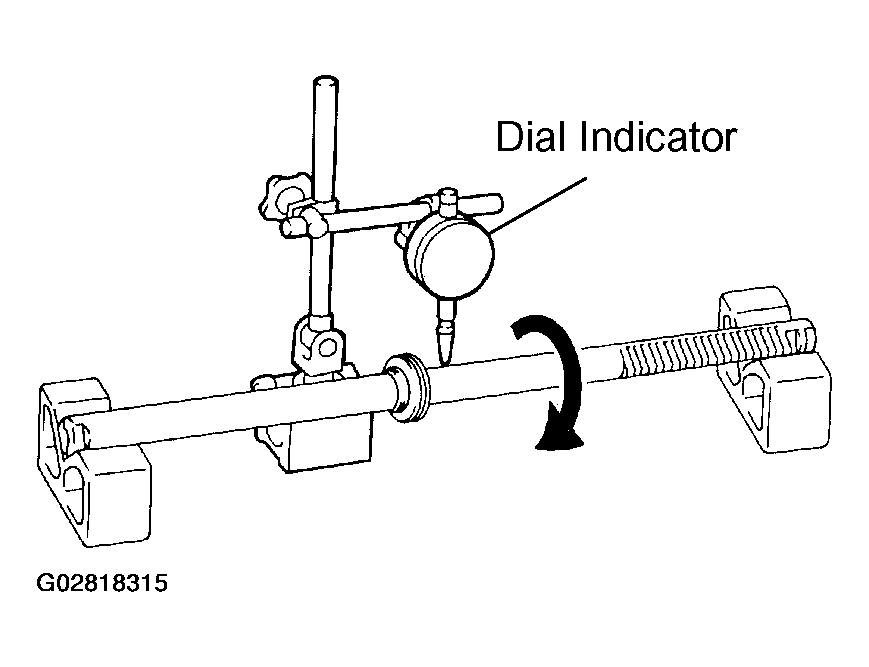

Fig 1: Checking Steering Rack For Runout Using A Dial Indicator
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Maximum runout: 0.03 mm (0.0012 in.)
Check the back surface for wear and damage.
