Front Seat (Power Adjuster Type): Components

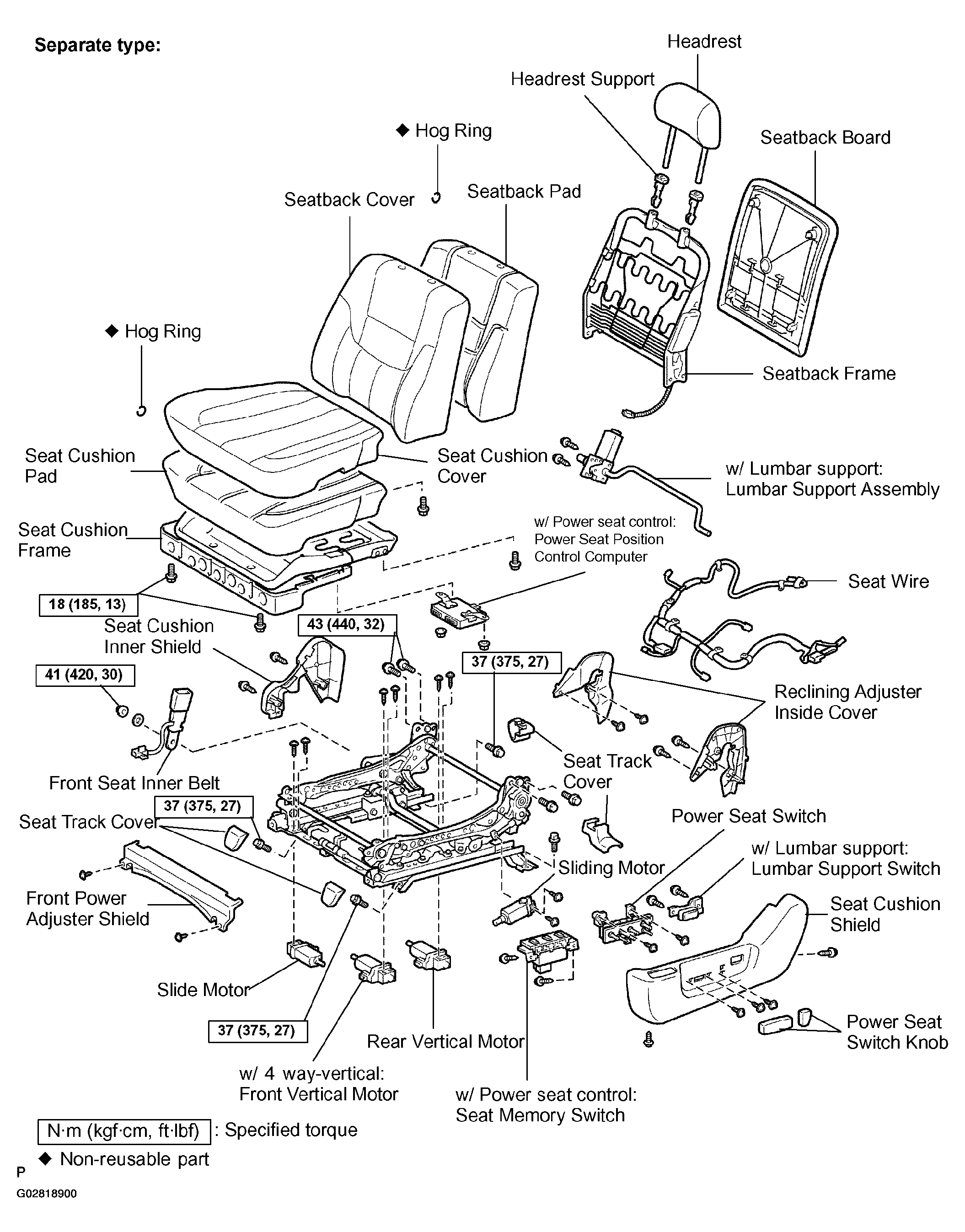

Fig 1: Identifying Front Seat (Separate Type) Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

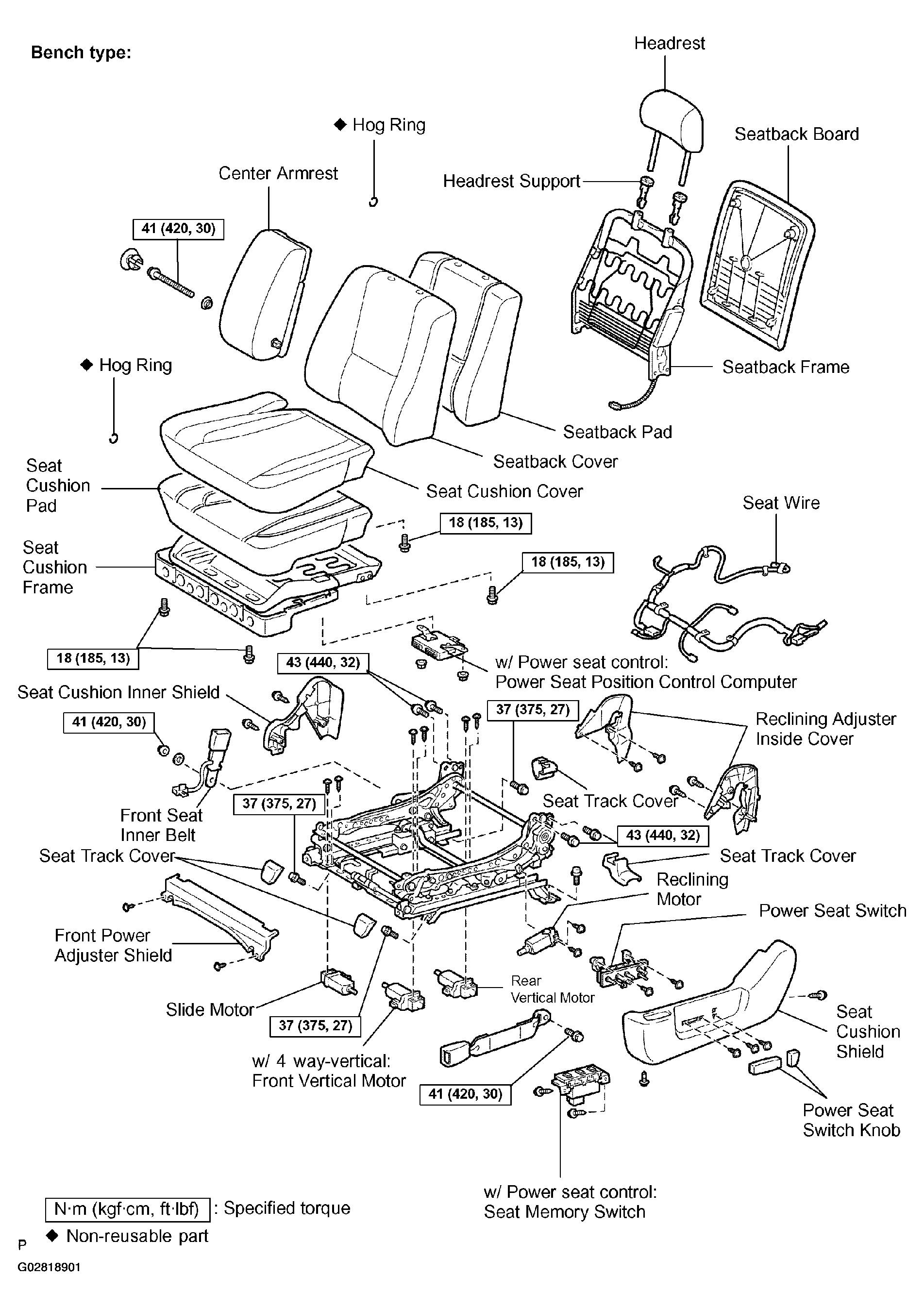

Fig 2: Identifying Front Seat (Bench Type) Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
