Home >> Toyota >> 2003 >> Avalon XL >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Audio System >> Location

Audio System: Location

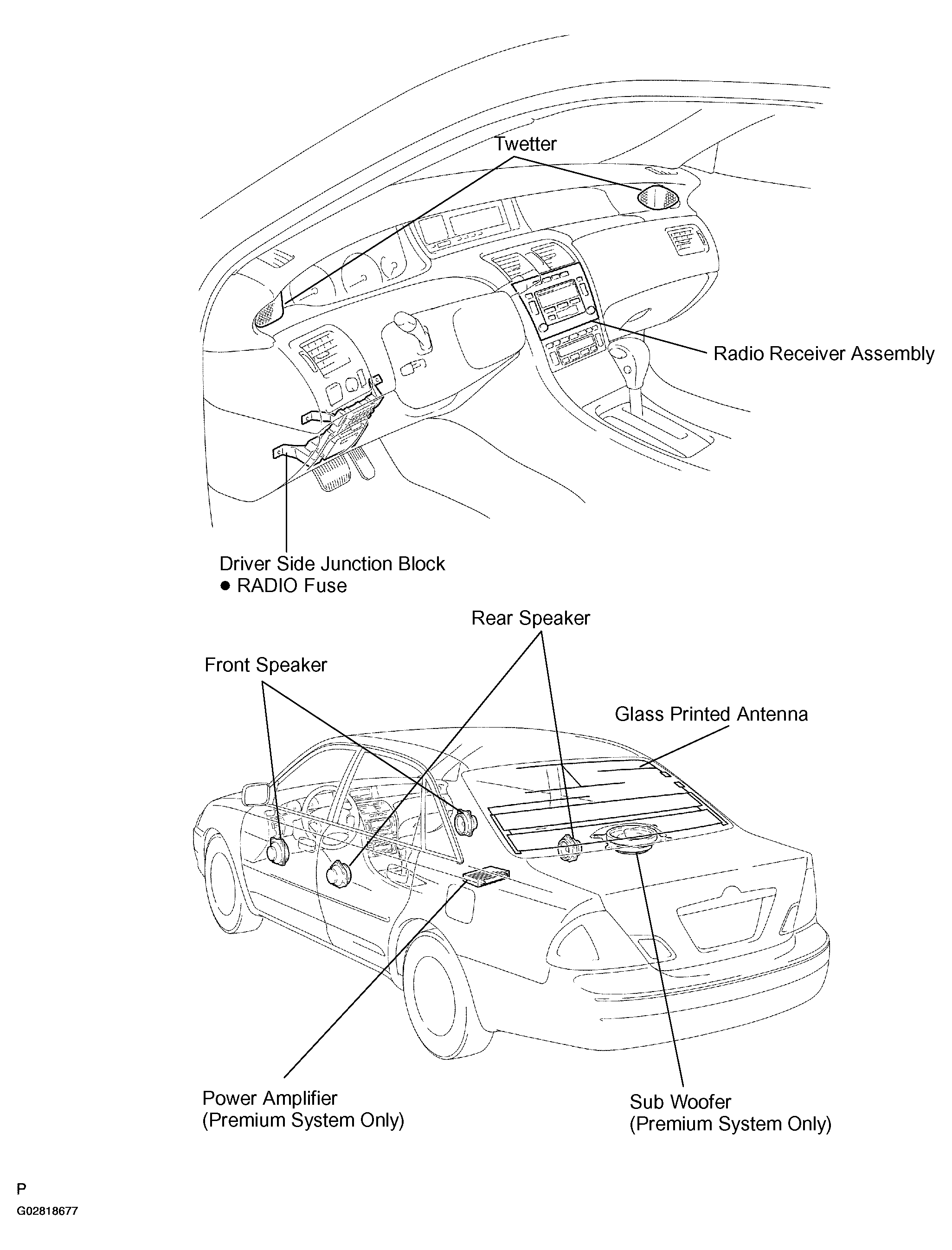

Fig 1: Identifying Audio System Components

G02818677

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
