Automatic Transmission Speed Sensor: 2UZ-FE: Replacement

  1. REMOVE SPEED SENSOR (SP2 and NT SENSOR)
    1. Disconnect the connector.
    2. Remove the bolt and speed sensor.

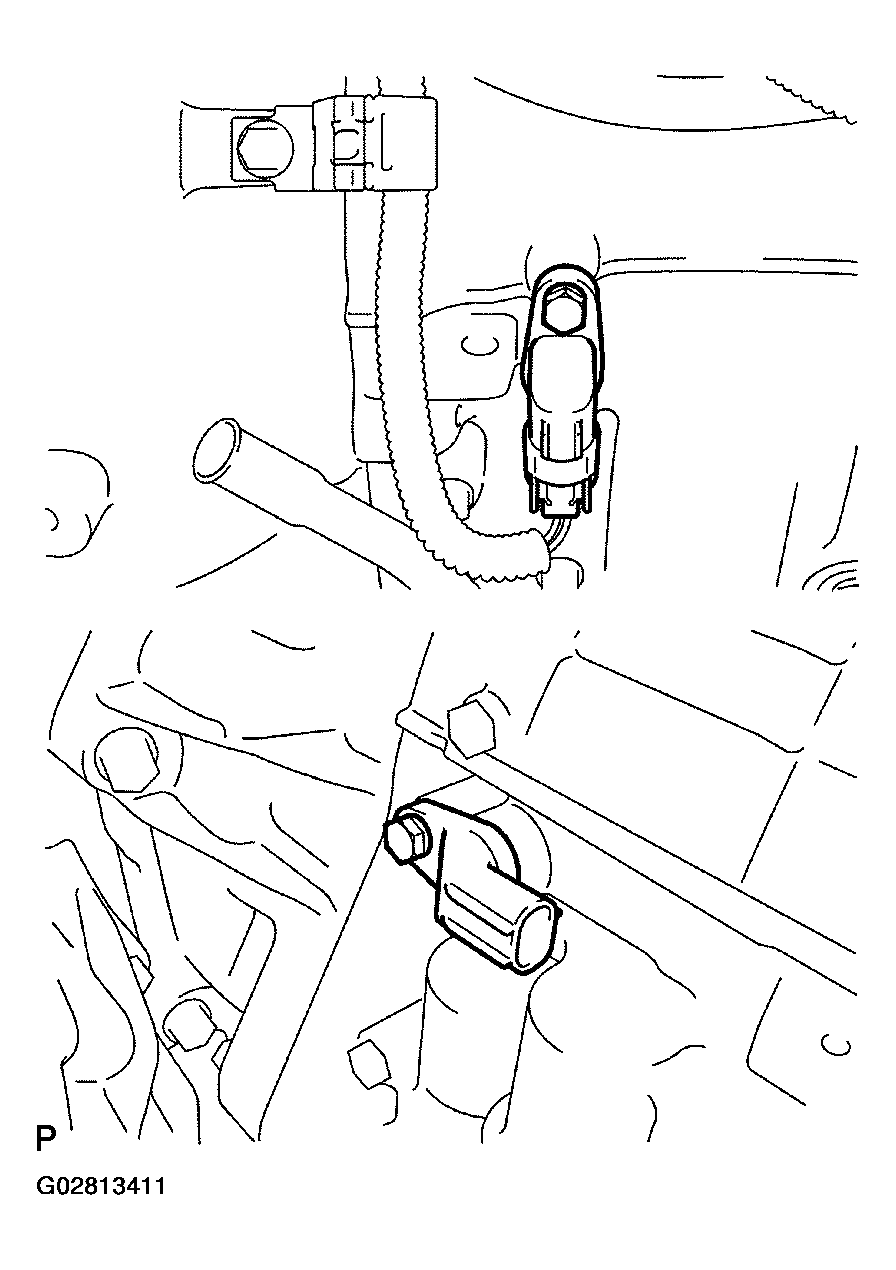

      Fig 1: Removing Speed Sensor (SP2 And NT Sensor)
      G02813411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL SPEED SENSOR (SP2 and NT SENSOR)
    1. Coat a new O-ring with ATF.
    2. Install the speed sensor with the bolt.
      Fig 2: Installing Speed Sensor (SP2 And NT Sensor)
      G02813412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.4 N.m (55 kgf.cm, 48 in..lbf)

    3. Connect the connector.
