Home >> Toyota >> 2003 >> 4Runner Limited, 4.7 T, AWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Windshield/Window Glass/Mirror >> Windshield Glass >> Components

Windshield Glass: Components

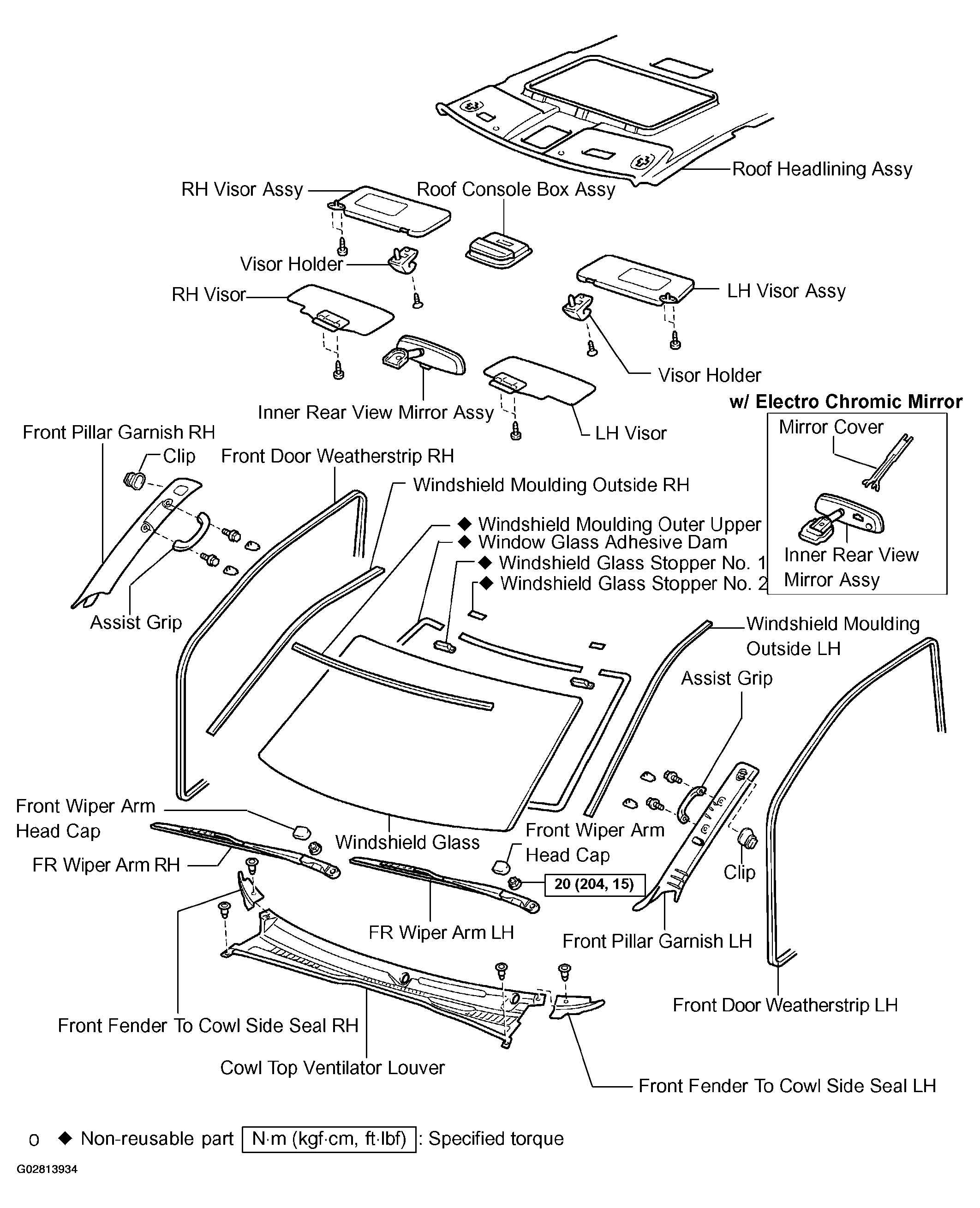

Fig 1: Locating Component Of Windshield Glass

G02813934

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
