Window Defogger System: Location

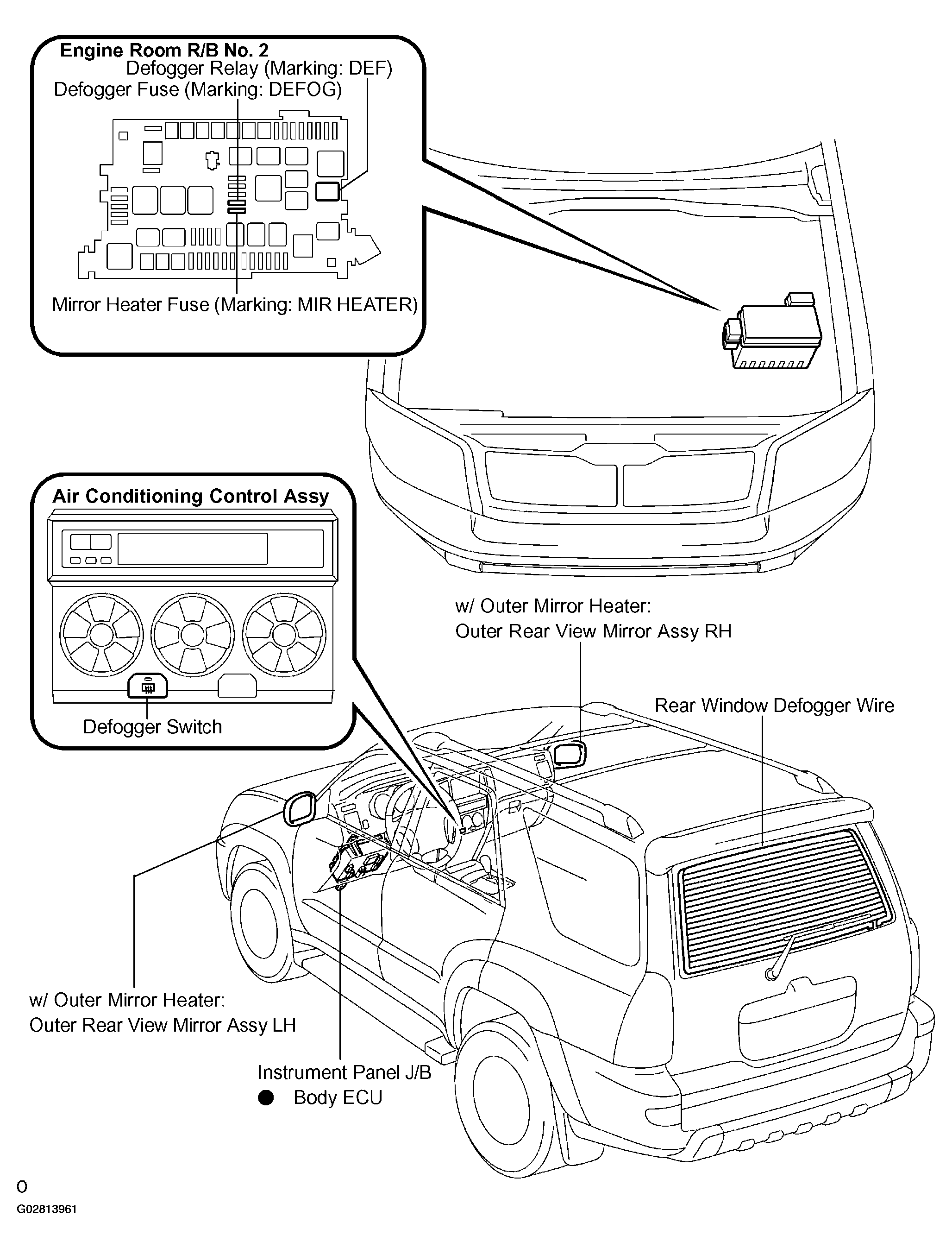

Fig 1: Locating Window Defogger System Component

G02813961

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
