Remote Up/Down Function Does Not Operate: Wiring Diagram

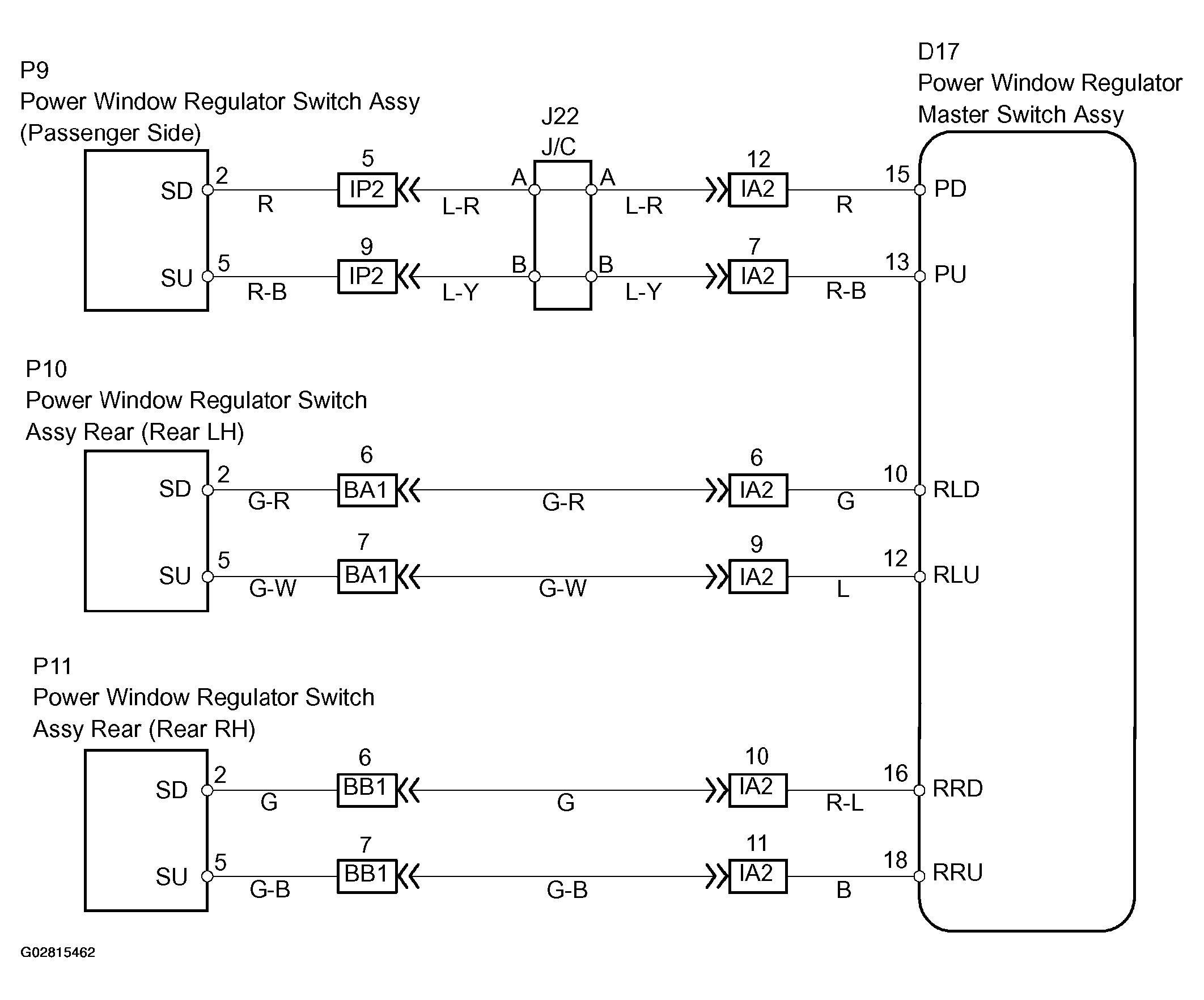

Fig 1: Power Window Regulator Switch Assy Switch

G02815462

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
