Manual Up/Down Function Does Not Operate: Wiring Diagram

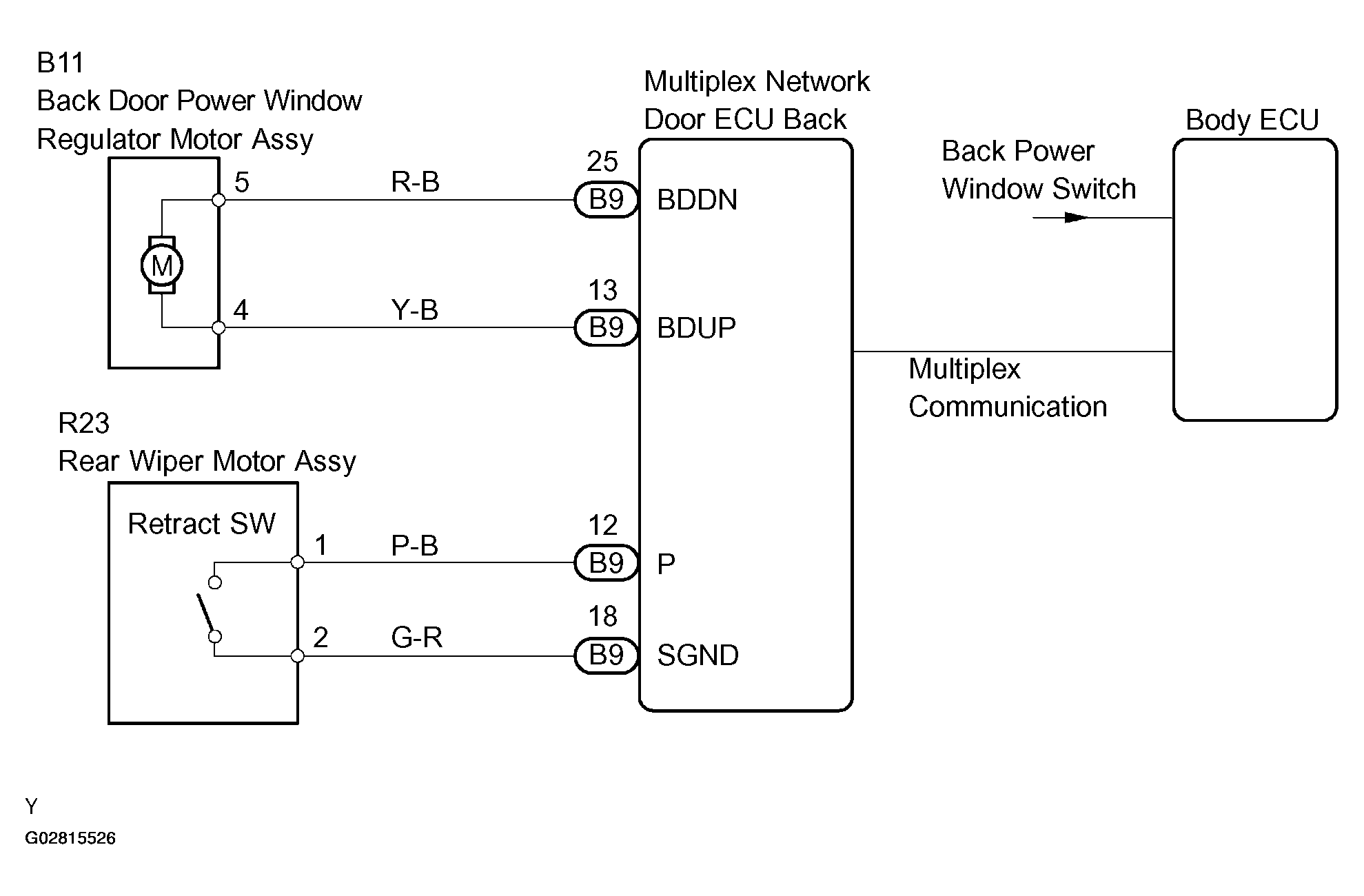

Fig 1: Back Door Power Window Control System Circuit

G02815526

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
