Home >> Toyota >> 2003 >> 4Runner Limited, 4.7 T, AWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Window Control System - Diagnostics >> Location

Power Window Control System - Diagnostics: Location

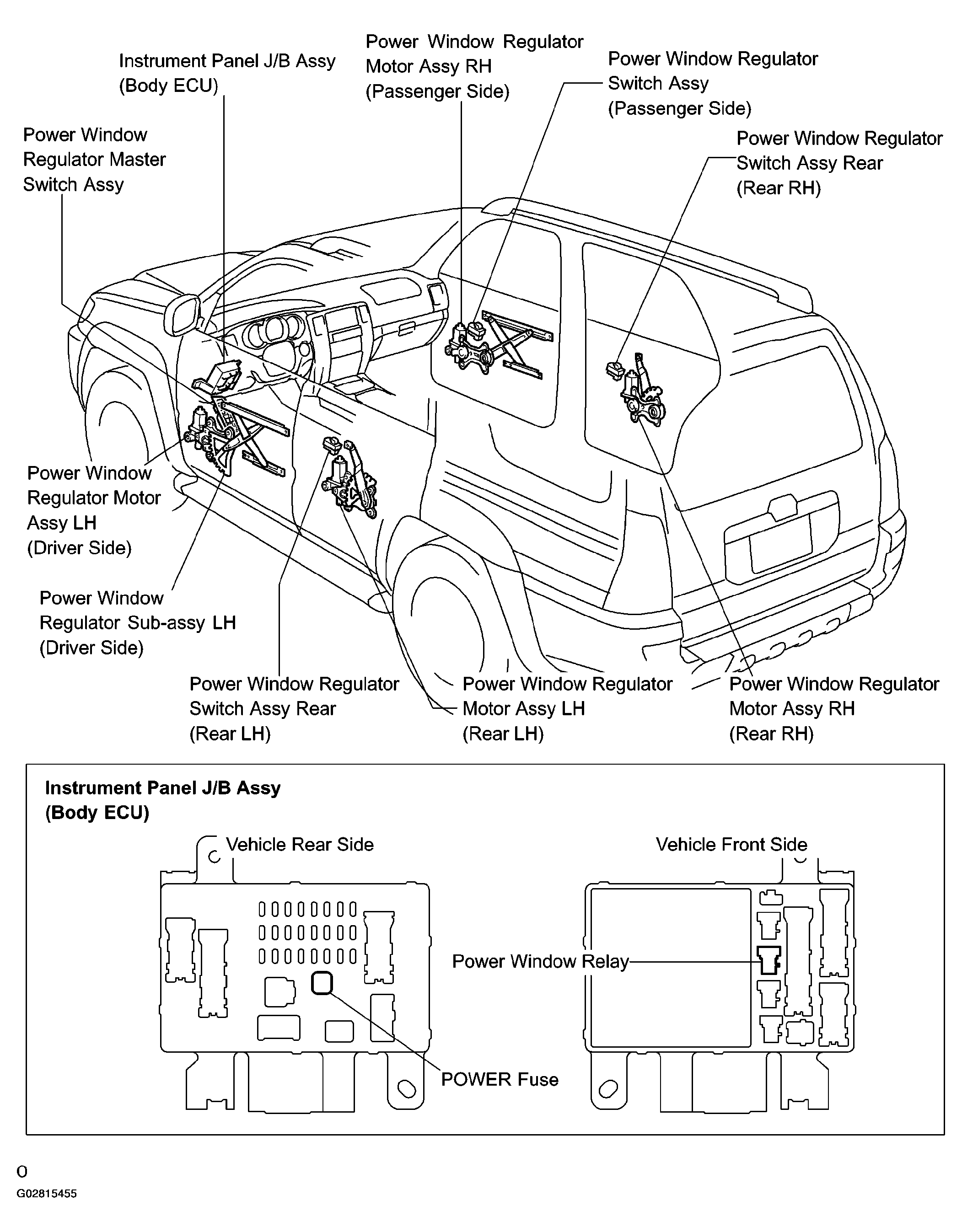

Fig 1: Locating Power Window Control System Components
G02815455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

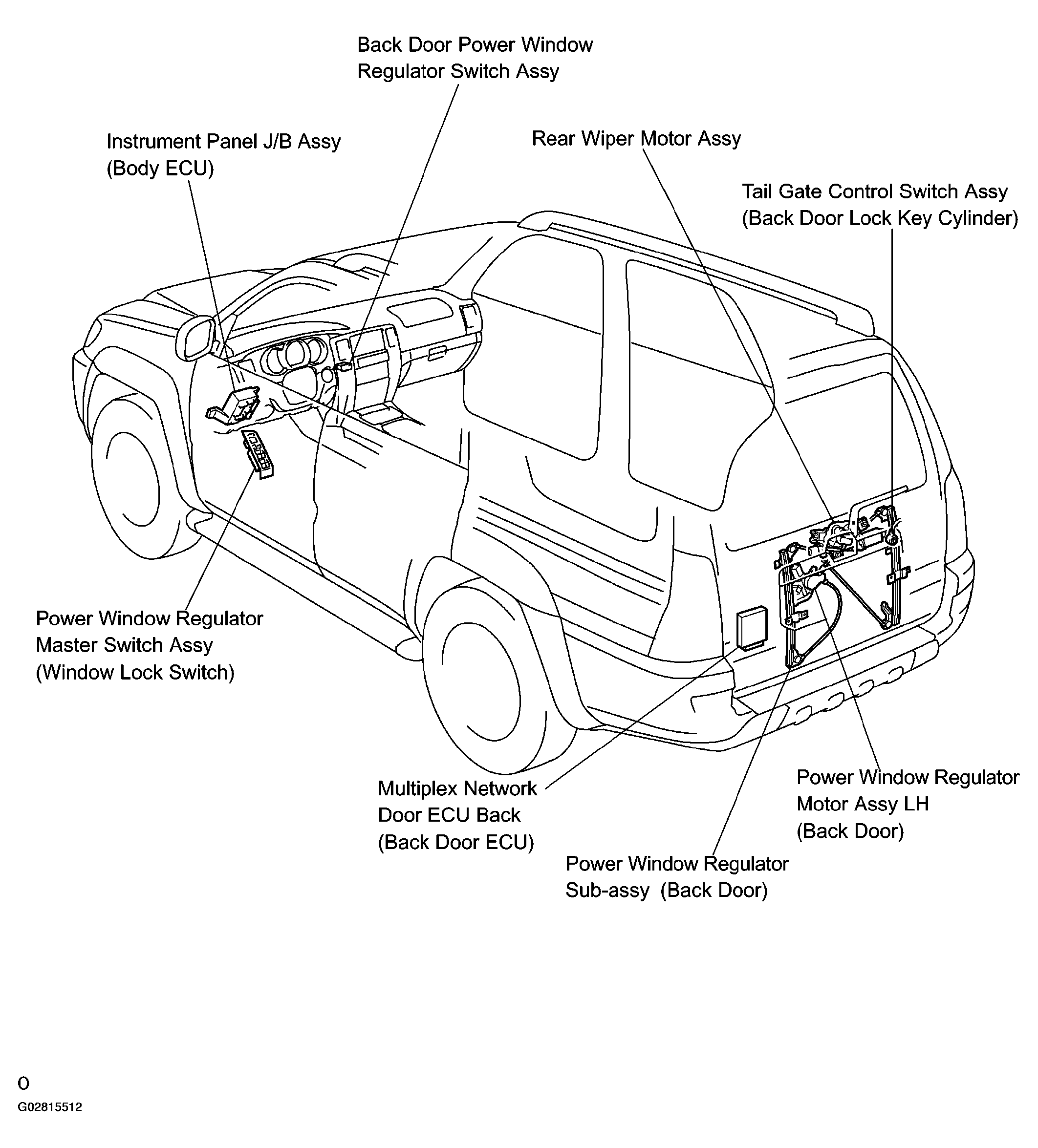

Fig 1: Locating Back Door Power Window Components
G02815512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
