Leaf Spring: Disassembly

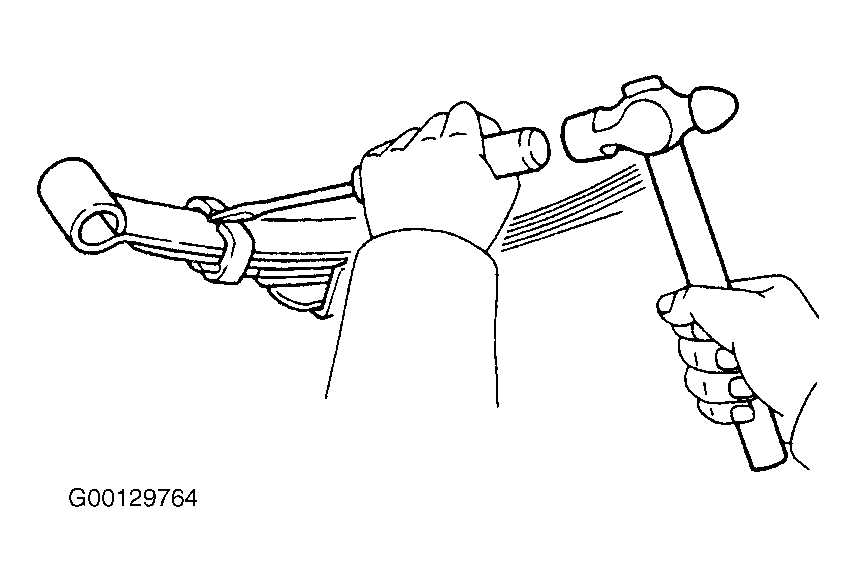

- Bend open the spring clips. Using a chisel and hammer, pry up the 2 spring clips.
- Remove the center bolt and nut. Hold the spring near the spring center bolt in a vise and remove the center bolt and nut.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
