Removal & Installation: 4.7L: Notes

NOTE: To assist in removal and installation of transmission, see Fig 1 and Fig 2 .

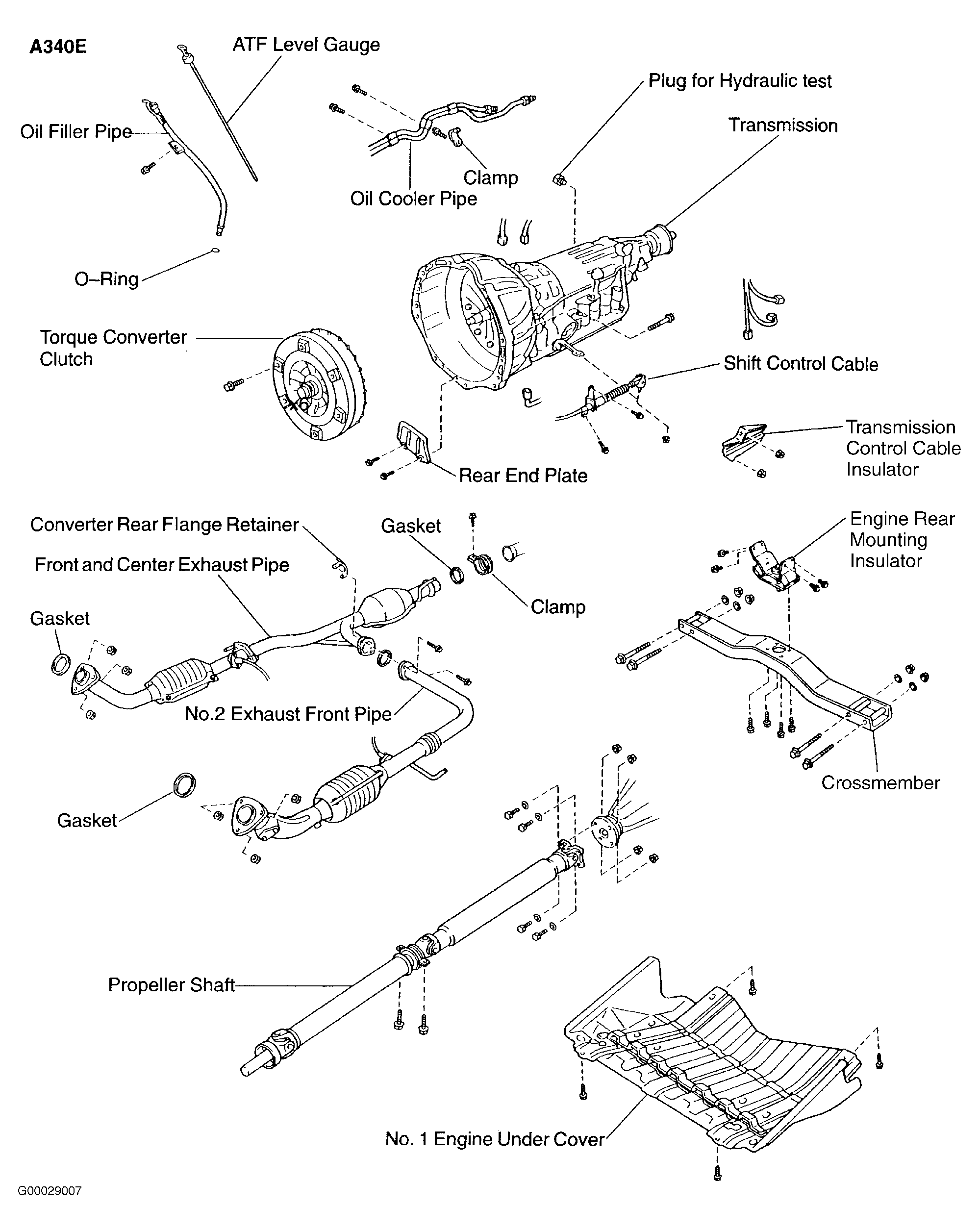

Fig 1: Exploded View Of Automatic Transmission External Components (4.7L - A340E)
G00029007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

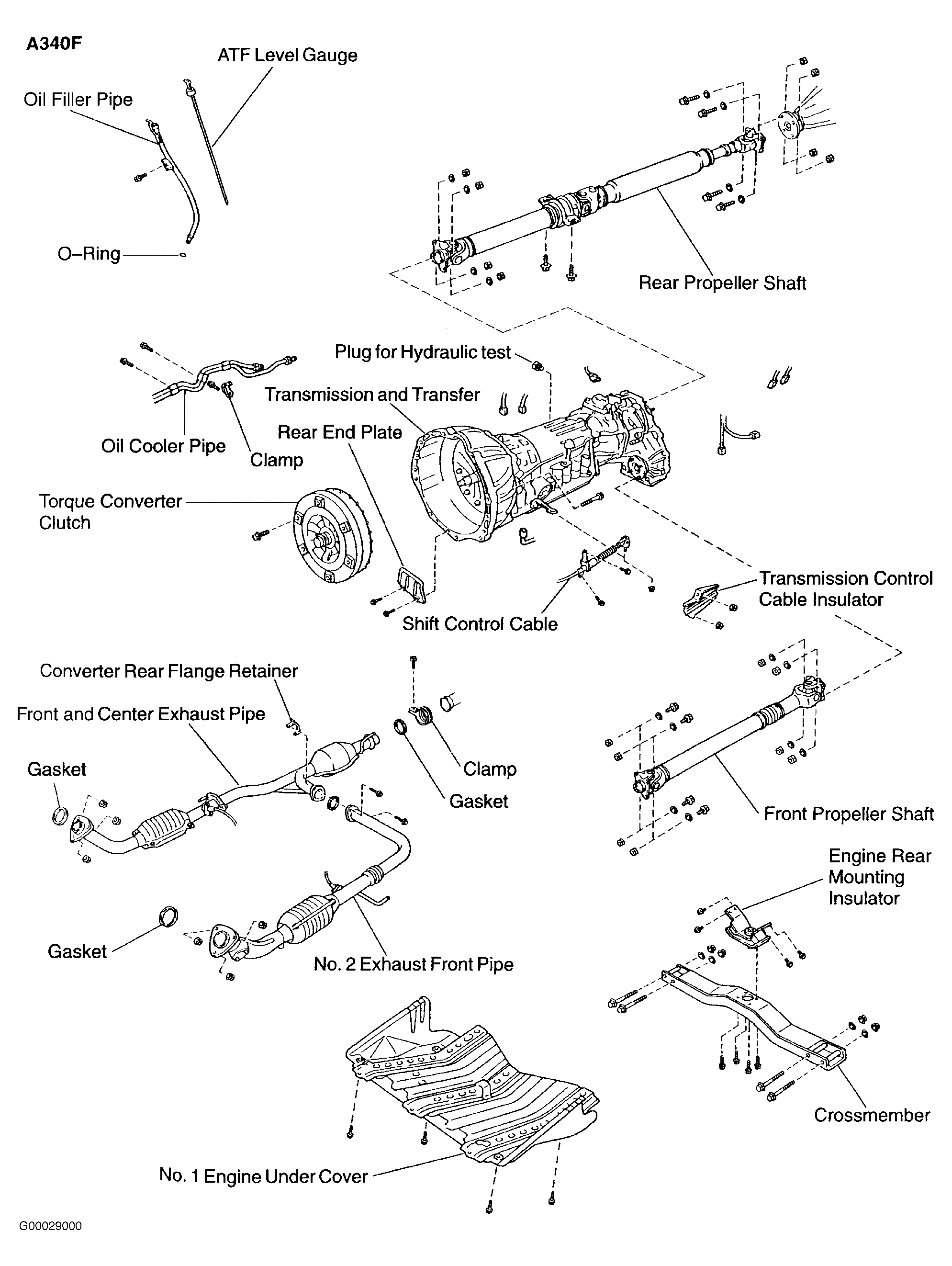

Fig 2: Exploded View Of Automatic Transmission External Components (4.7L - A340F)
G00029000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
