Removal & Installation: 3.4L: Notes

NOTE: To assist in removal and installation of transmission, see Fig 1 and Fig 2 .

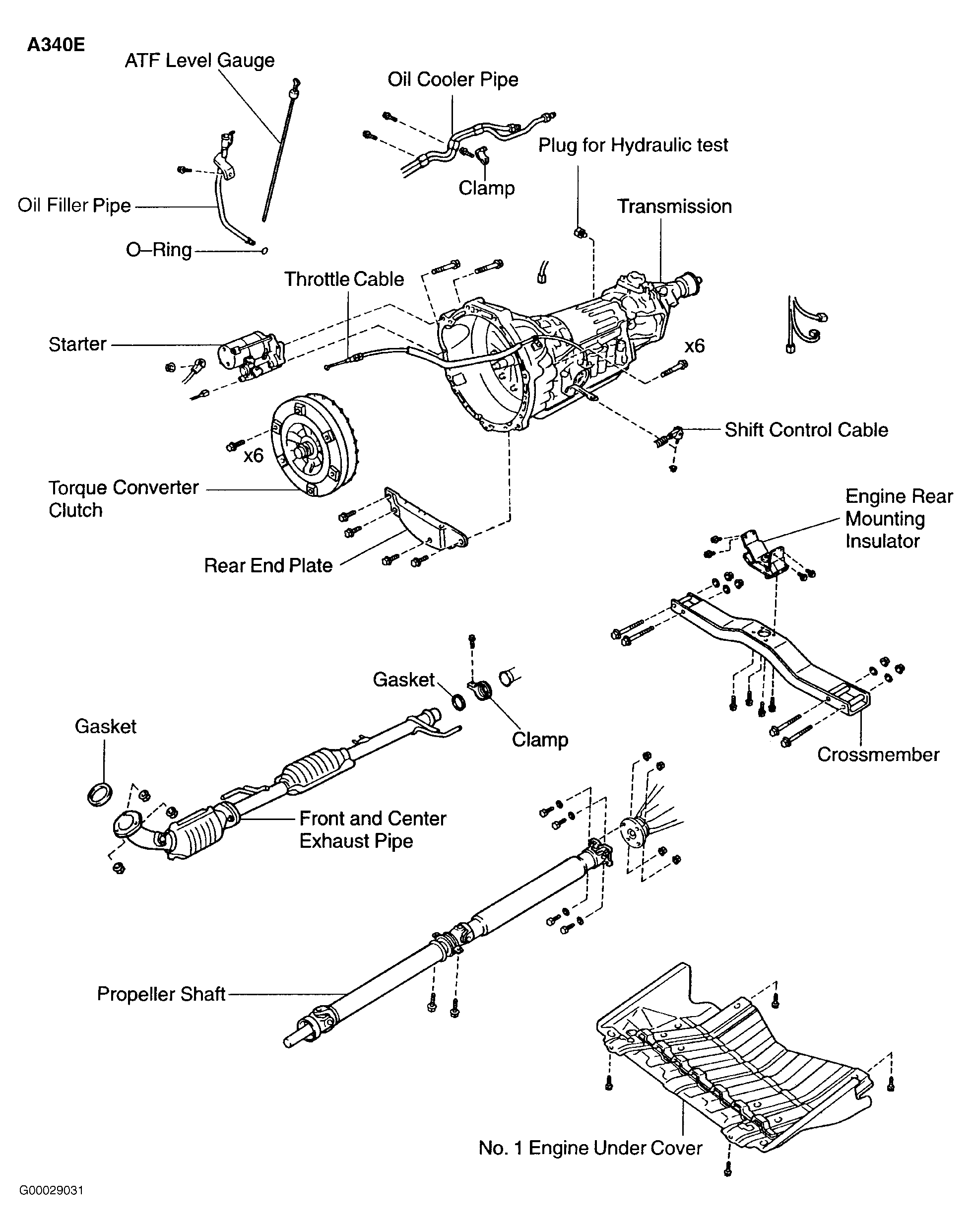

Fig 1: Exploded View Of Automatic Transmission External Components (3.4L - A340E)
G00029031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

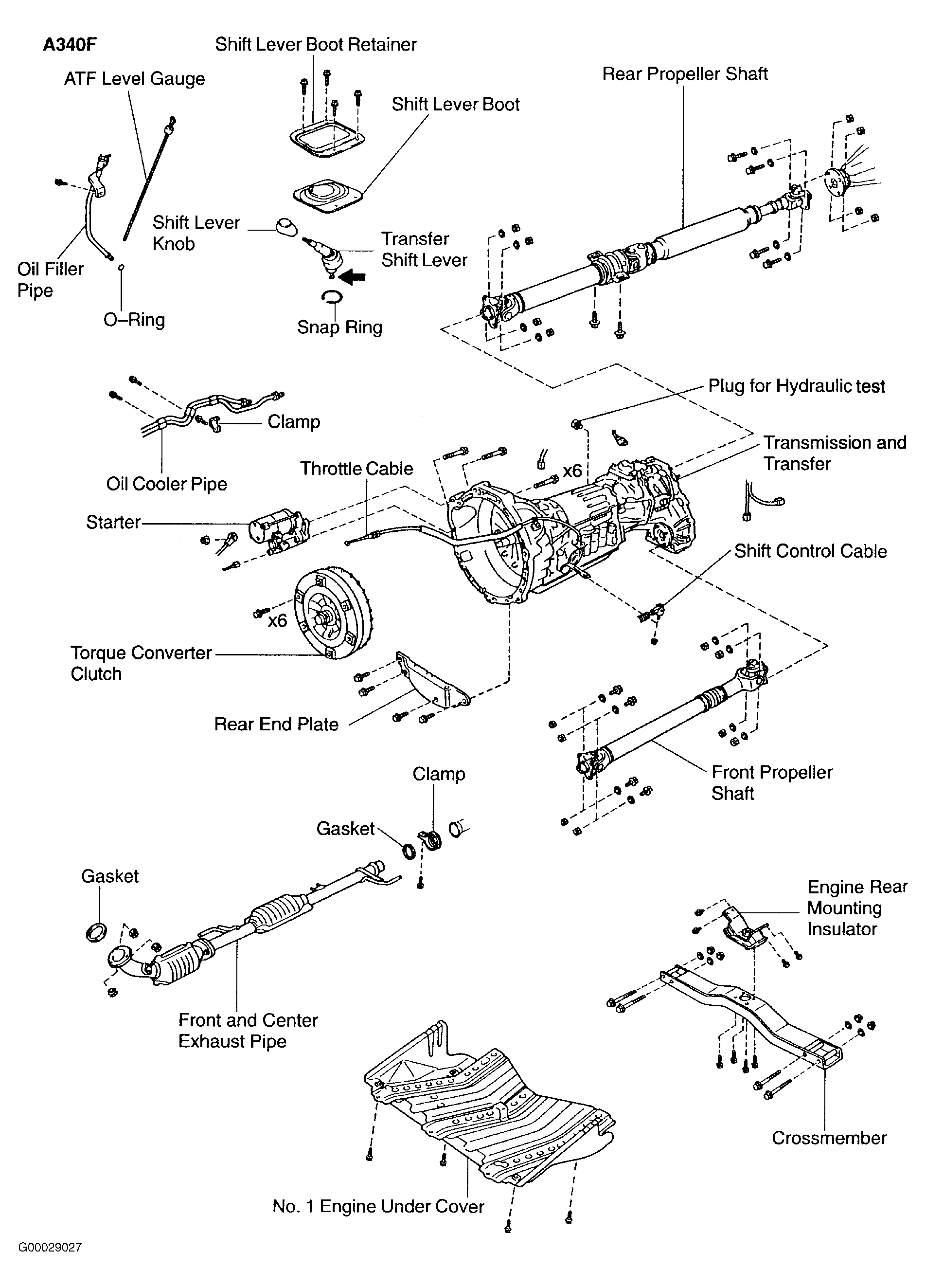

Fig 2: Exploded View Of Automatic Transmission External Components (3.4L - A340F)
G00029027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
