A.D.D. Control System: Location: Notes

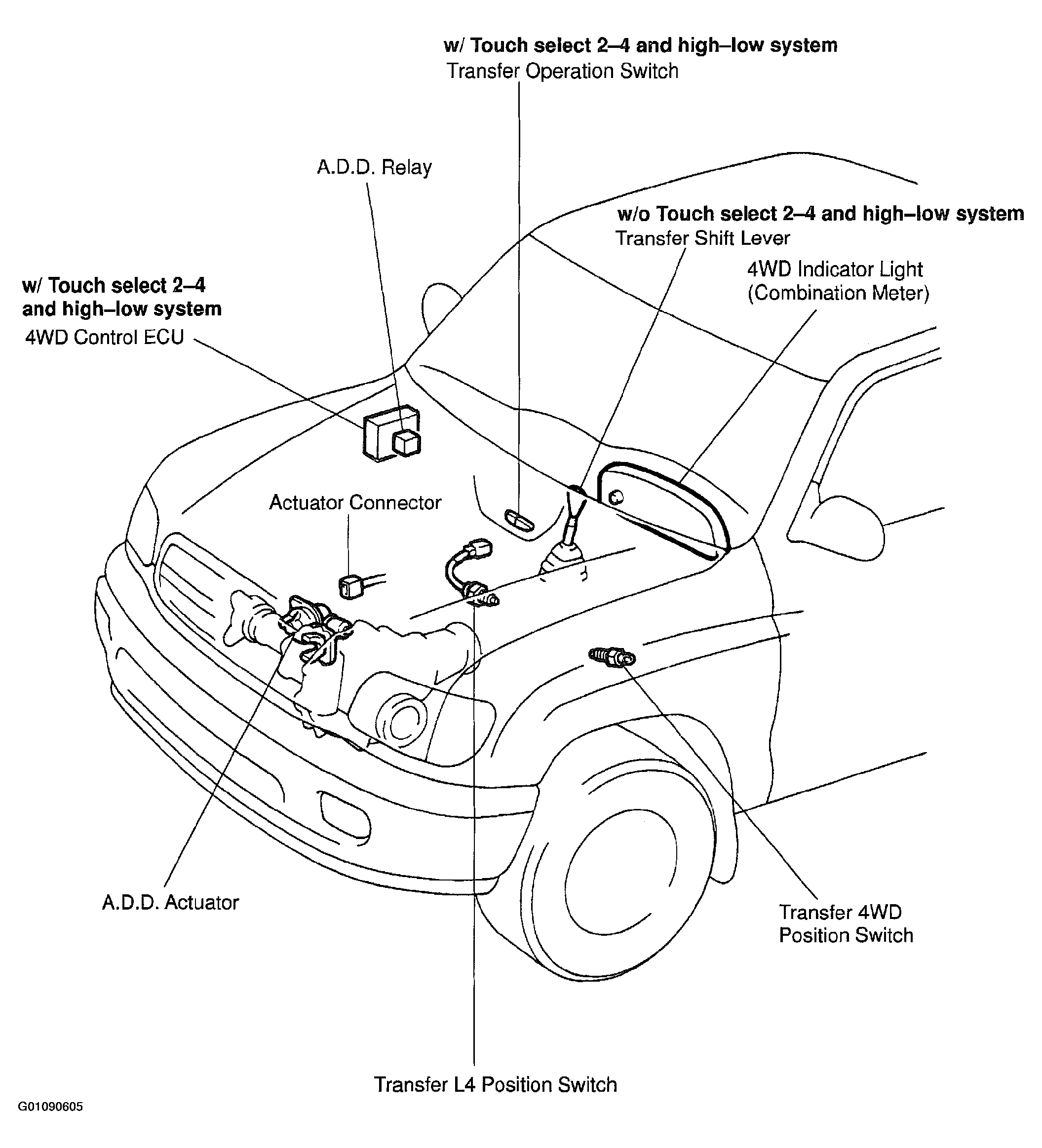

Fig 1: Locating Automatic Disconnecting Differential Control System Components

G01090605

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
