Power Mirror Control System: Inspection

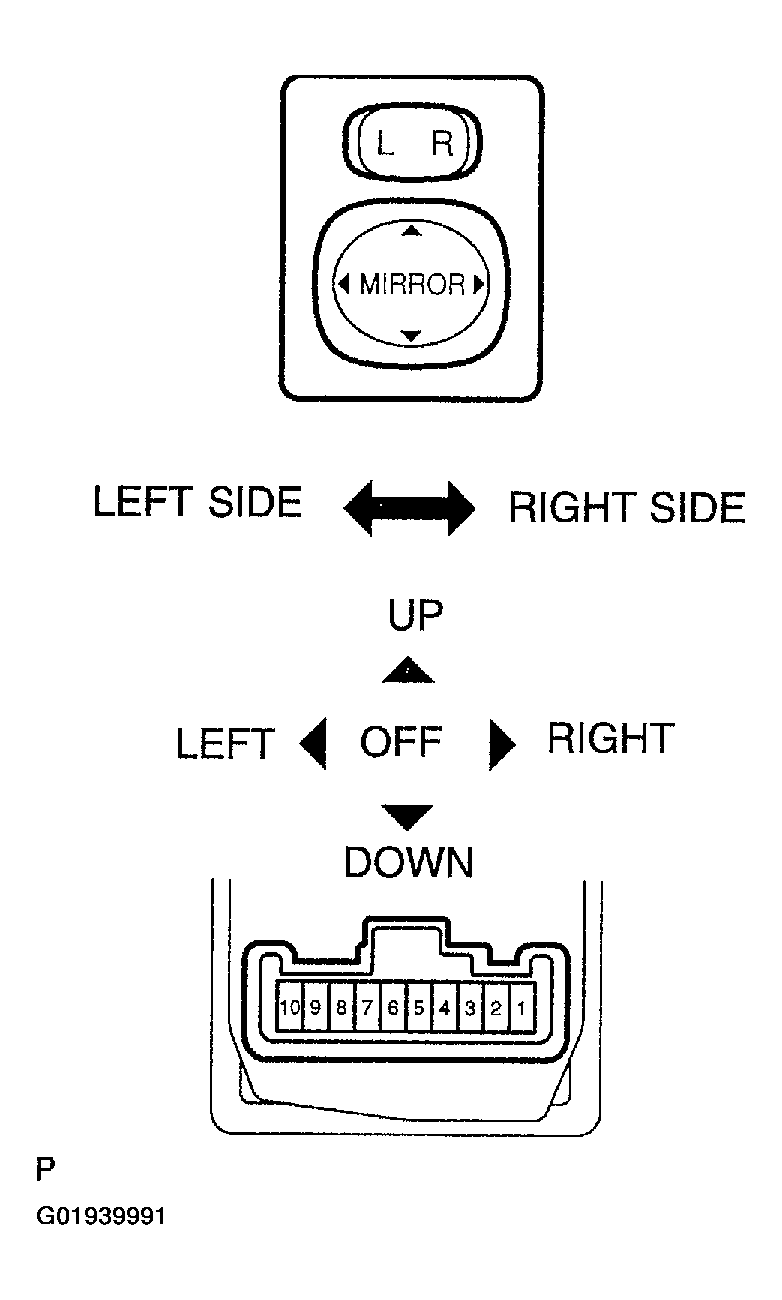

Fig 1: Identifying Mirror Switch Terminals

G01939991

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Left side:

Fig 2: Displaying Mirror Switch Specifications (Left Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Right side:

Fig 3: Displaying Mirror Switch Specifications (Right Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the switch.
Inspect mirror motor operation.
1. Connect the positive (+) lead from the battery to terminal 3 and negative (-) lead to terminal 1. Check that the mirror turns to left side.

  Fig 4: Checking That Mirrors Turn To Left Side
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Reverse the polarity and check that the mirror turns to right side.

  Fig 5: Checking That Mirrors Turn To Right Side
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1. Check that the mirror turns upward

  Fig 6: Checking That Mirrors Turn Upward
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Reverse the polarity, check that the mirror turns downward.

  Fig 7: Checking That Mirrors Turn Downward
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If operation is not as specified, replace the mirror assembly.
