Vehicle Lift And Support Locations

Lifting And Support Locations

• For 2WD (Except Pre Runner) and 4WD Vehicles, see Fig 1.
• For Prerunner, see Fig 2.

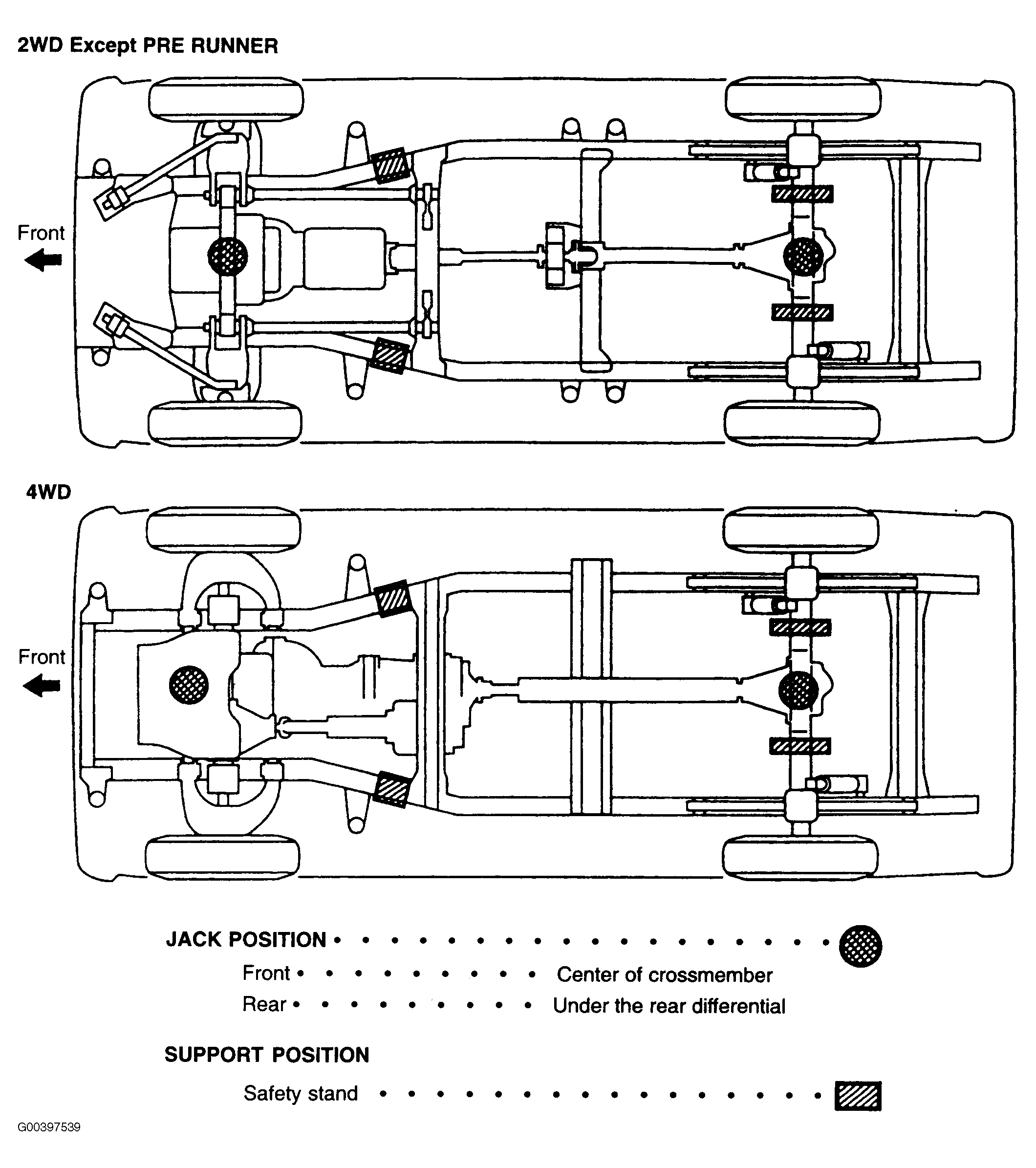

Fig 1: Identifying Vehicle Lifting & Support Points (2WD & 4WD Except Pre Runner)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

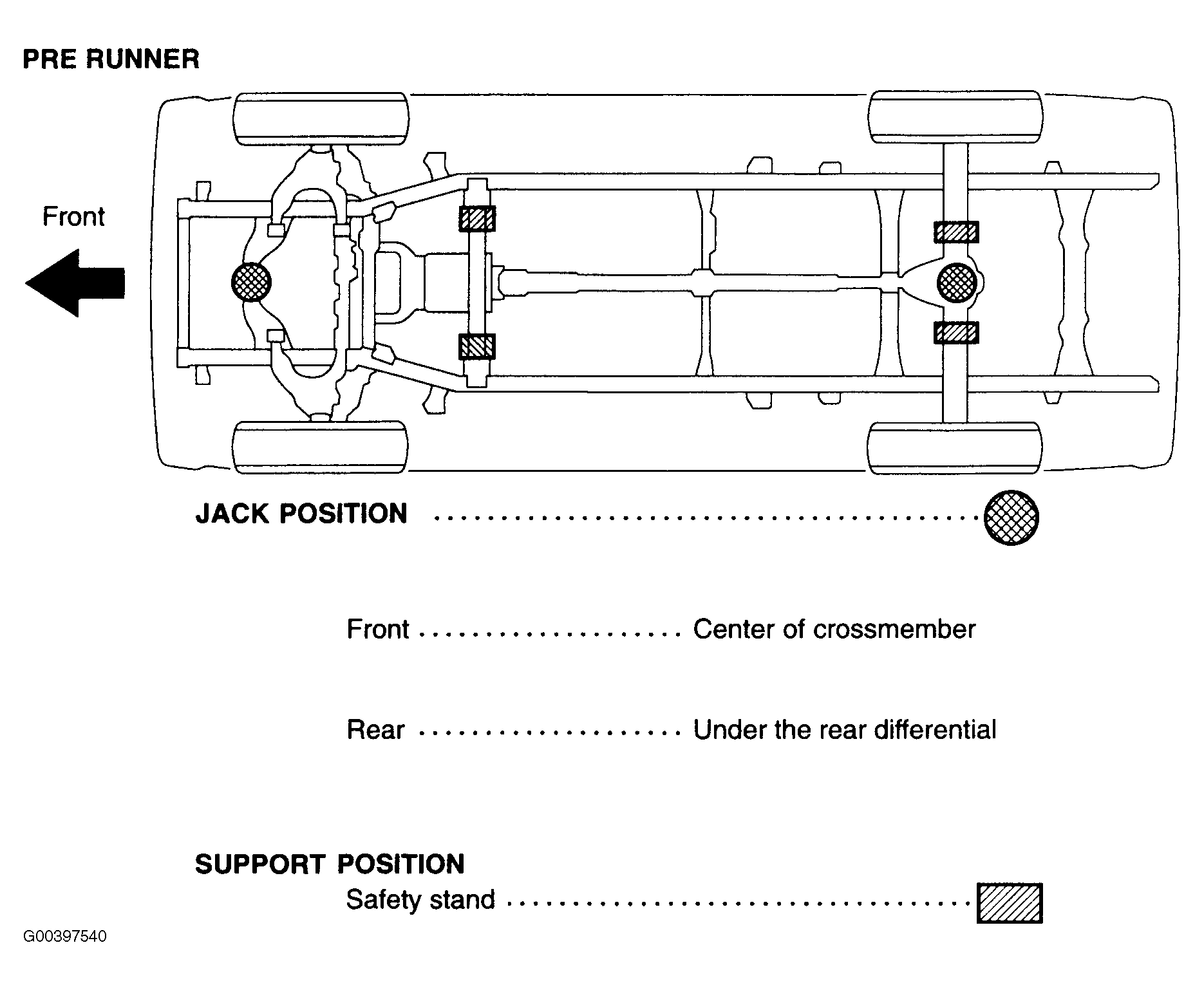

Fig 2: Identifying Vehicle Lifting & Support Points (Pre Runner)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
