Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Component Location |
|---|---|
| Blower Resistor | Below right side of dash, in blower housing. |
| Data Link Connector (DLC) No. 3 | Below left center of dash. |
| Diode (ABS) | Behind upper left side of dash. |
| Diode (A/T) | Behind top left side of dash, taped to harness. |
| Diode (Door Courtesy) | Behind top left side of dash, taped to harness. |
| Diode No. 1 (Daytime Running Light System) | Behind top left side of dash, taped to harness. |
| Diode No. 2 (Daytime Running Light System) | Behind top left center of dash, taped to harness. |
| Ignition Coil & Ignitor (4) (2.4L) | On top of cylinder head cover. |
| Ignition Coil & Ignitor (4) (2.7L) | On top of cylinder head cover. |
| Ignition Coil (3) (3.4L) | On top of cylinder head cover. |

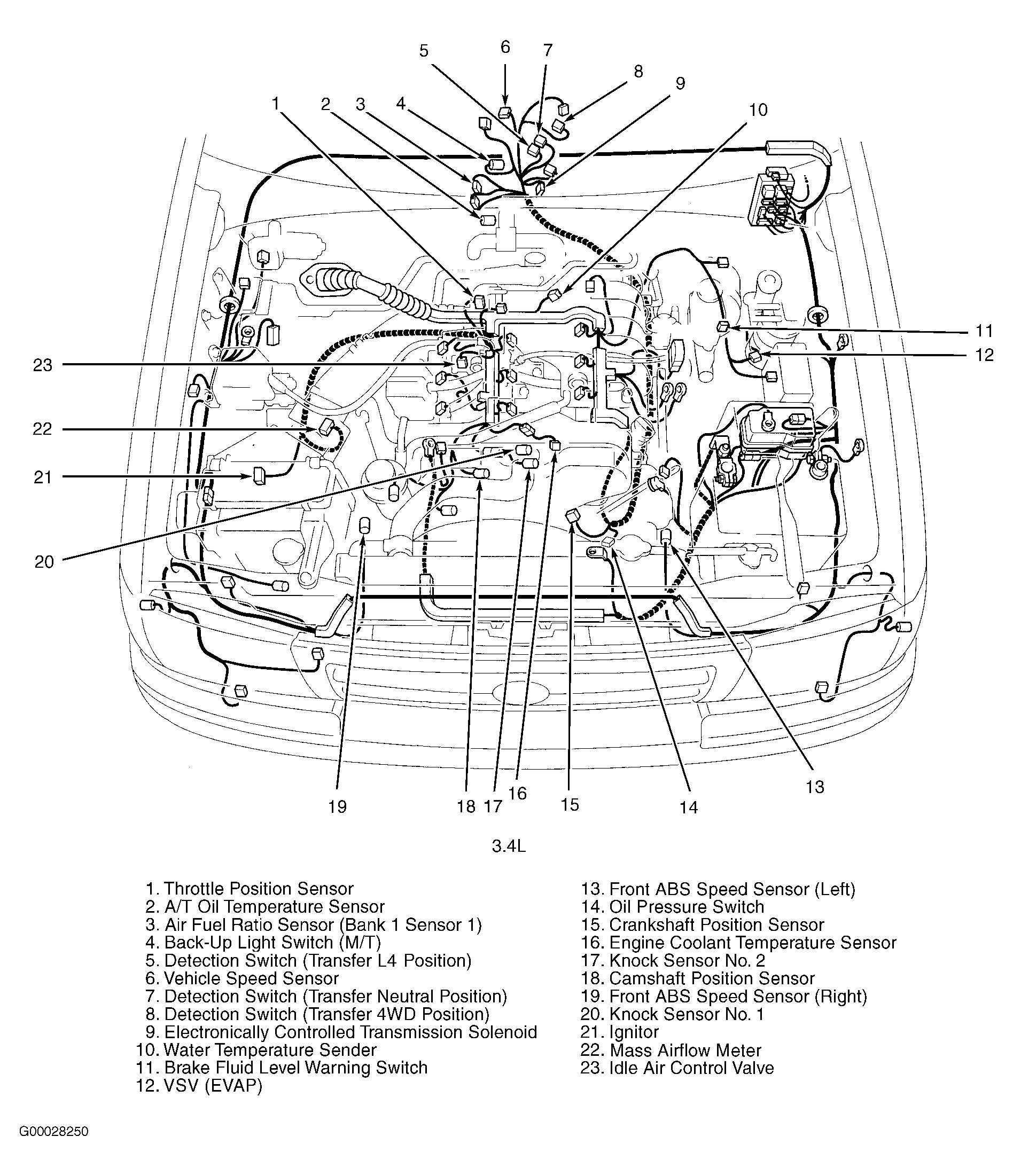

| Ignitor (3.4L) | On right side of engine compartment. See Figure. |
| Junction Connector No. 1 | Behind upper left side of dash. |
| Junction Connectors No. 9 & 10 | On left side of engine compartment, at R/B No. 2. |
| Junction Connectors No. 11 & 13 | Above glove box. |

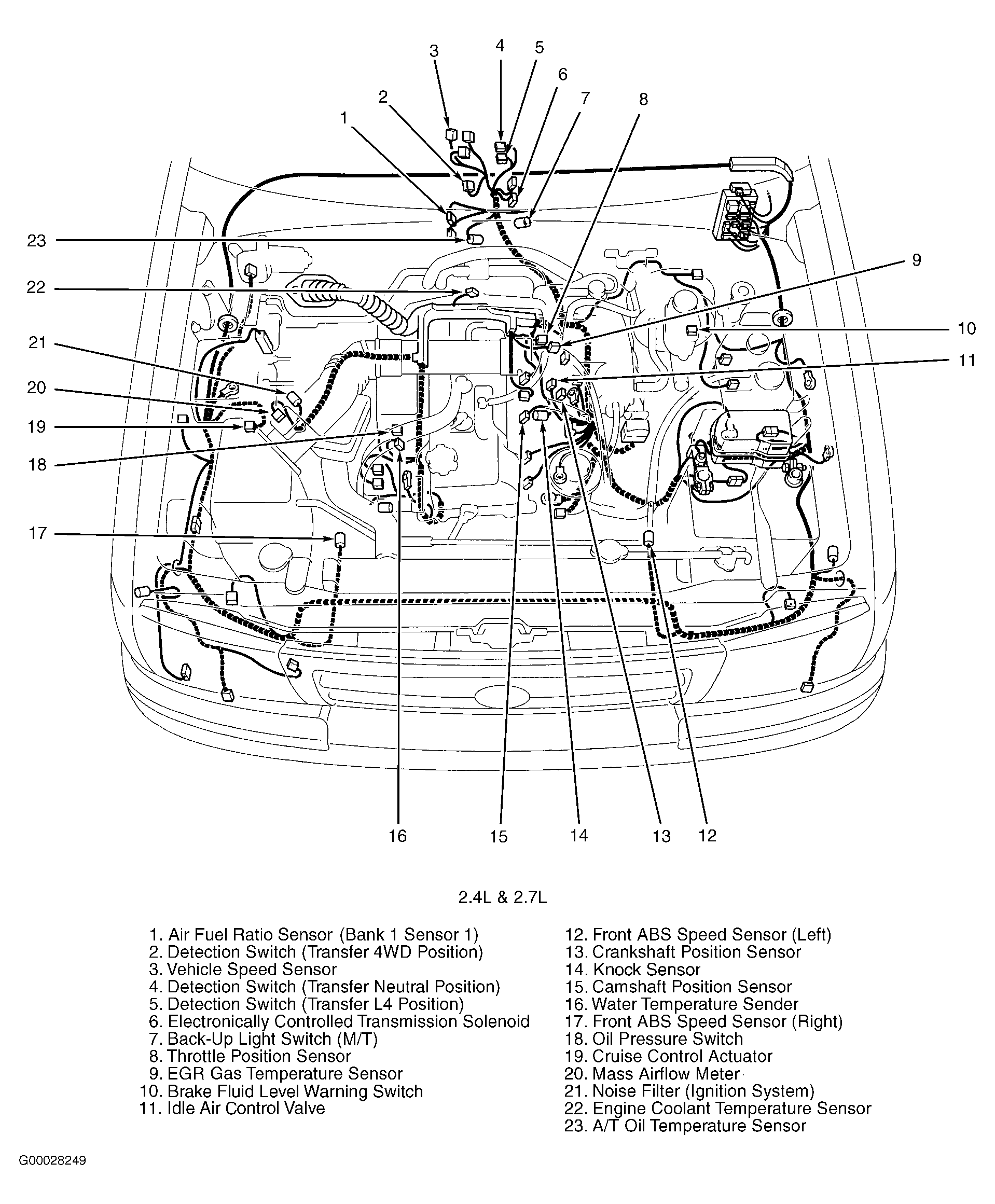

| Noise Filter (Ignition System) (2.4L) | On right side of engine compartment. See Figure. |
| Noise Filter (Ignition System) (2.7L) | On right side of engine compartment. See Figure. |
| Pretensioner (Left) | At base of left "B" pillar. |
| Pretensioner (Right) | At base of right "B" pillar. |
