Component Tests

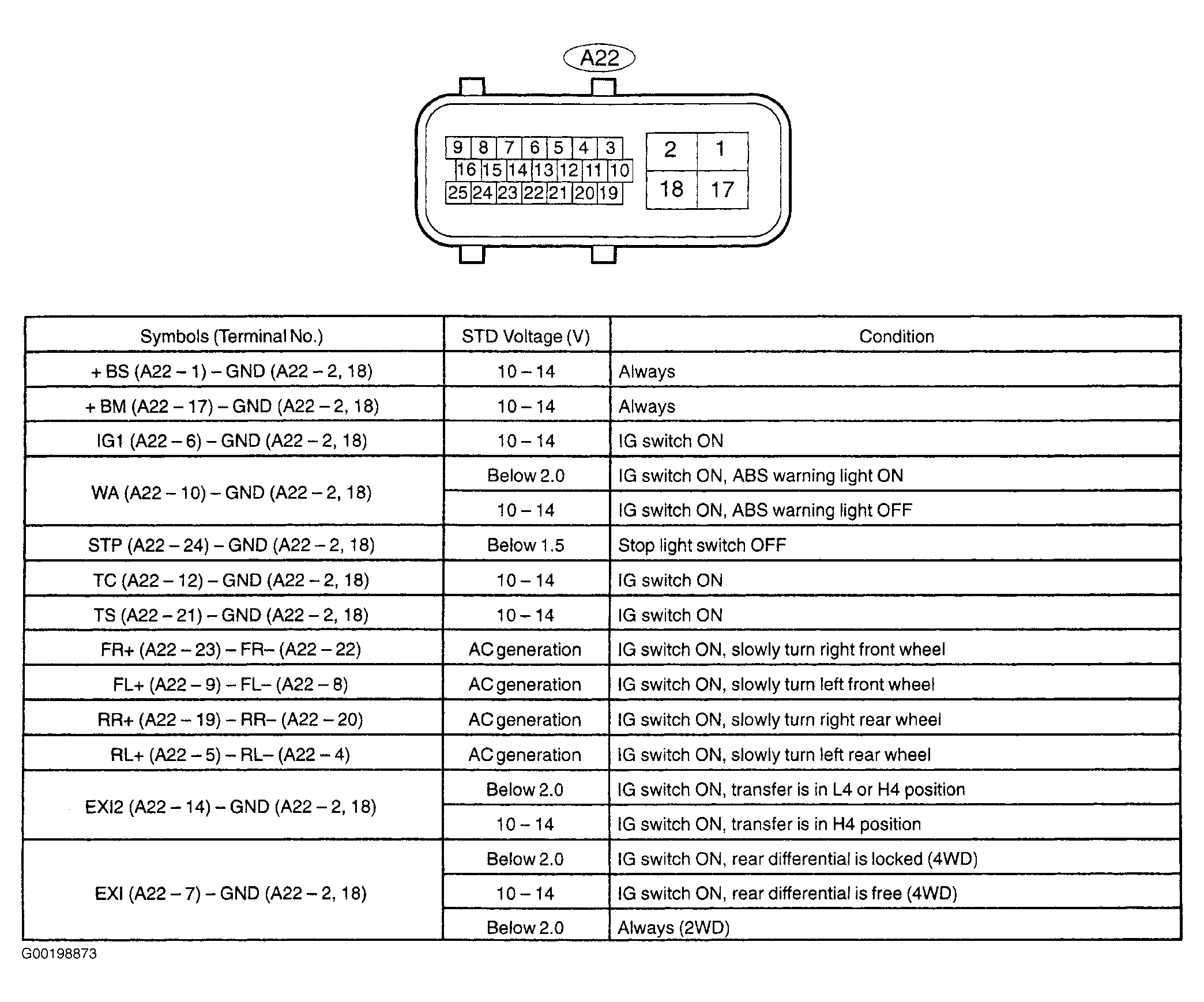

Components are tested with related circuit. See DIAGNOSTIC TESTS . ABS ECU values can be measured using Toyota hand-held tester and breakout box. ABS circuits and harness can also be tested by backprobing ABS ECU connectors and comparing measured voltages with ABS ECU standard values chart. See Figure.
