Power Door Lock Control System: Location

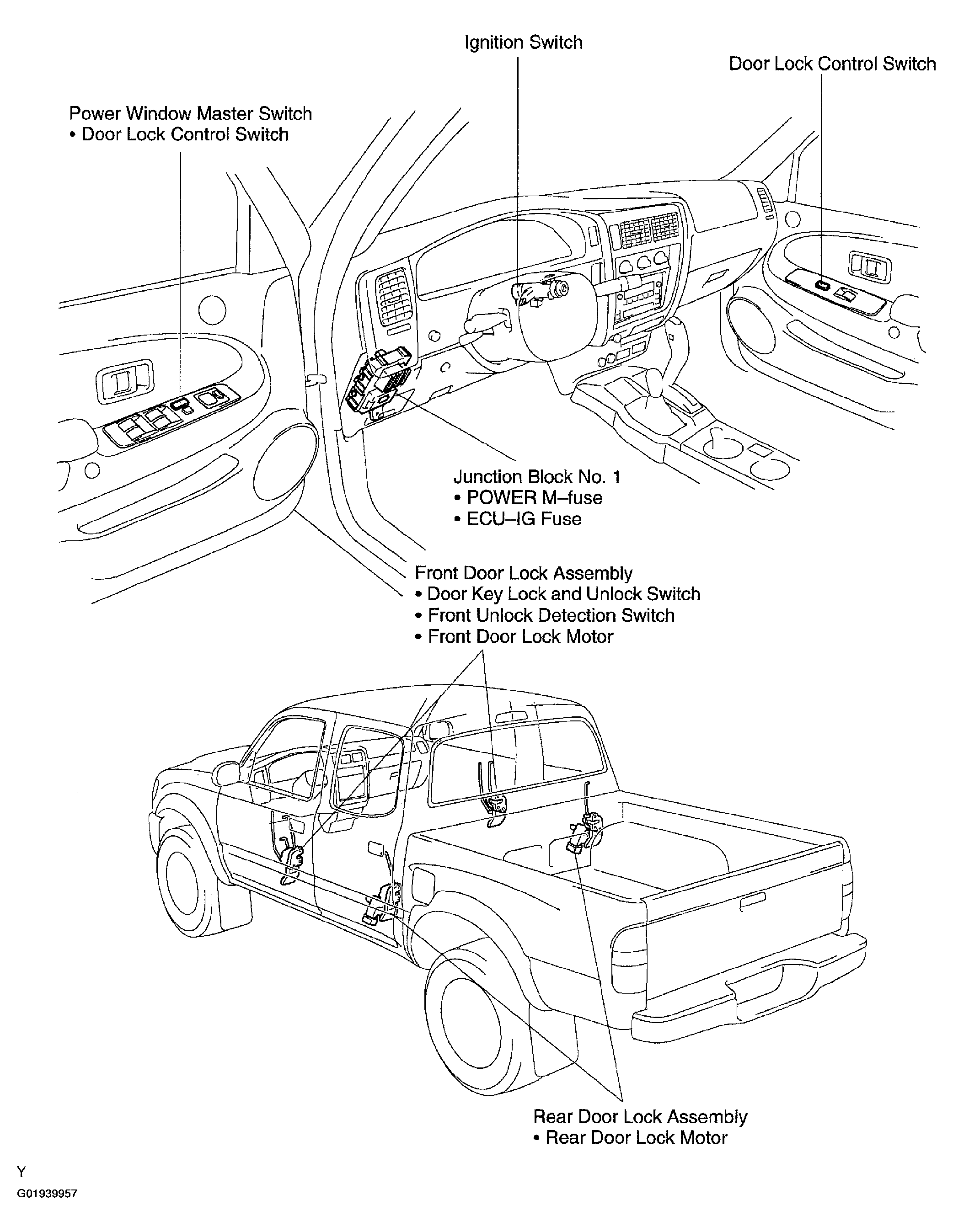

Fig 1: Locating Power Door Lock Control System

G01939957

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
