Engine Immobilizer System: Location

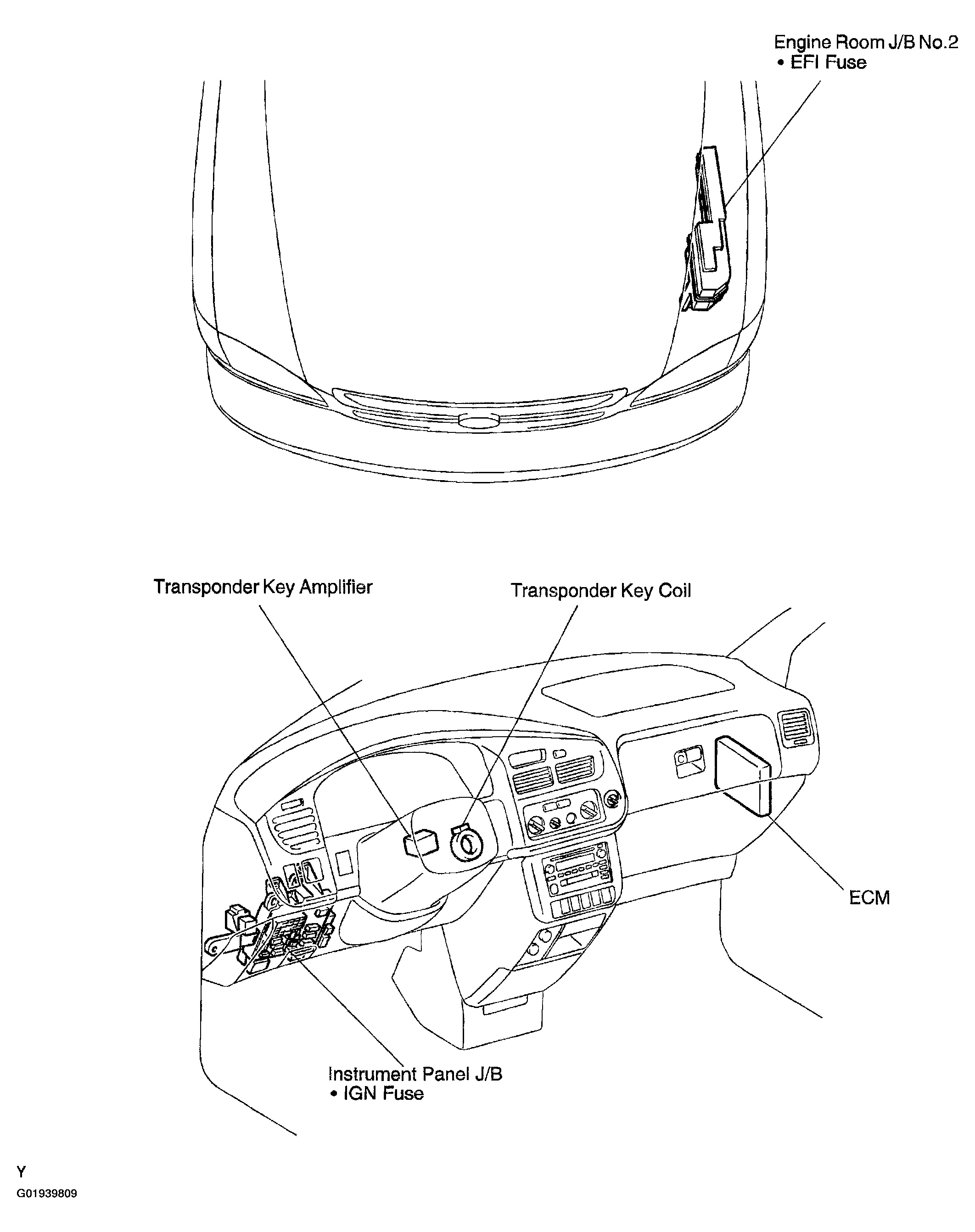

Fig 1: Locating Engine Immobilizer System Related Components

G01939809

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
