Problem Symptoms Tables

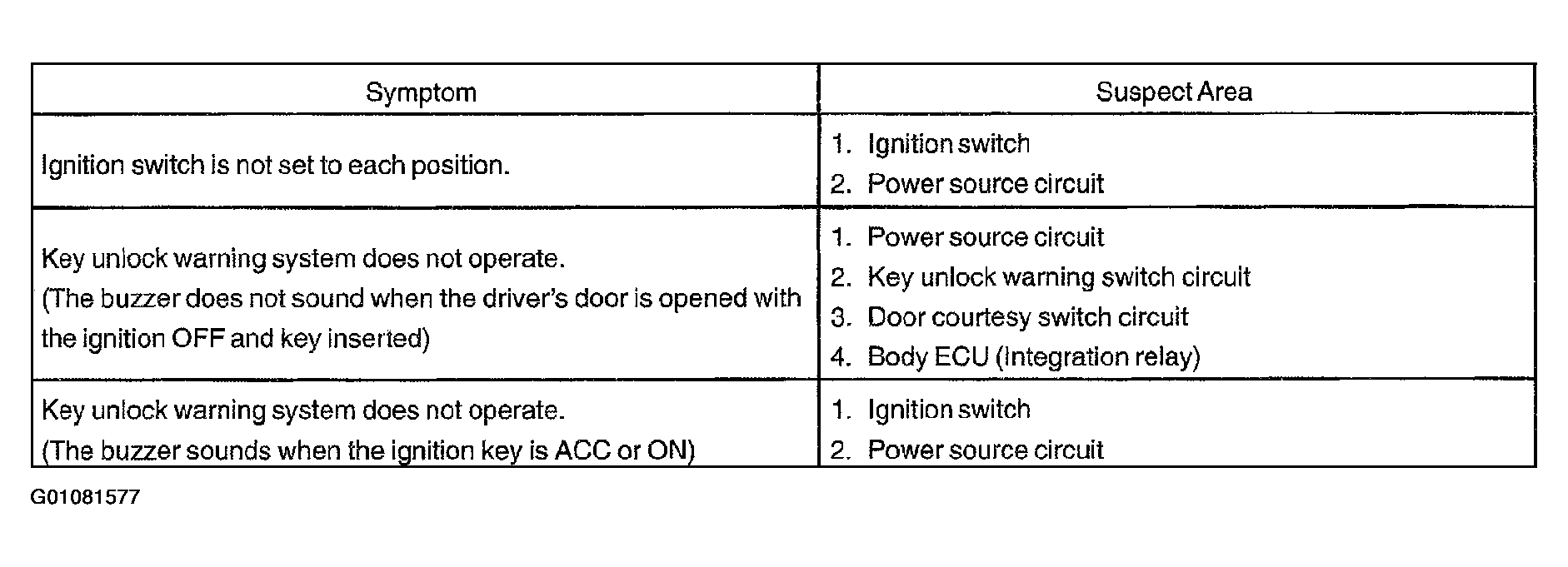

Fig 1: Isolating Ignition Switch And Key Unlock Warning Switch Symptoms

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

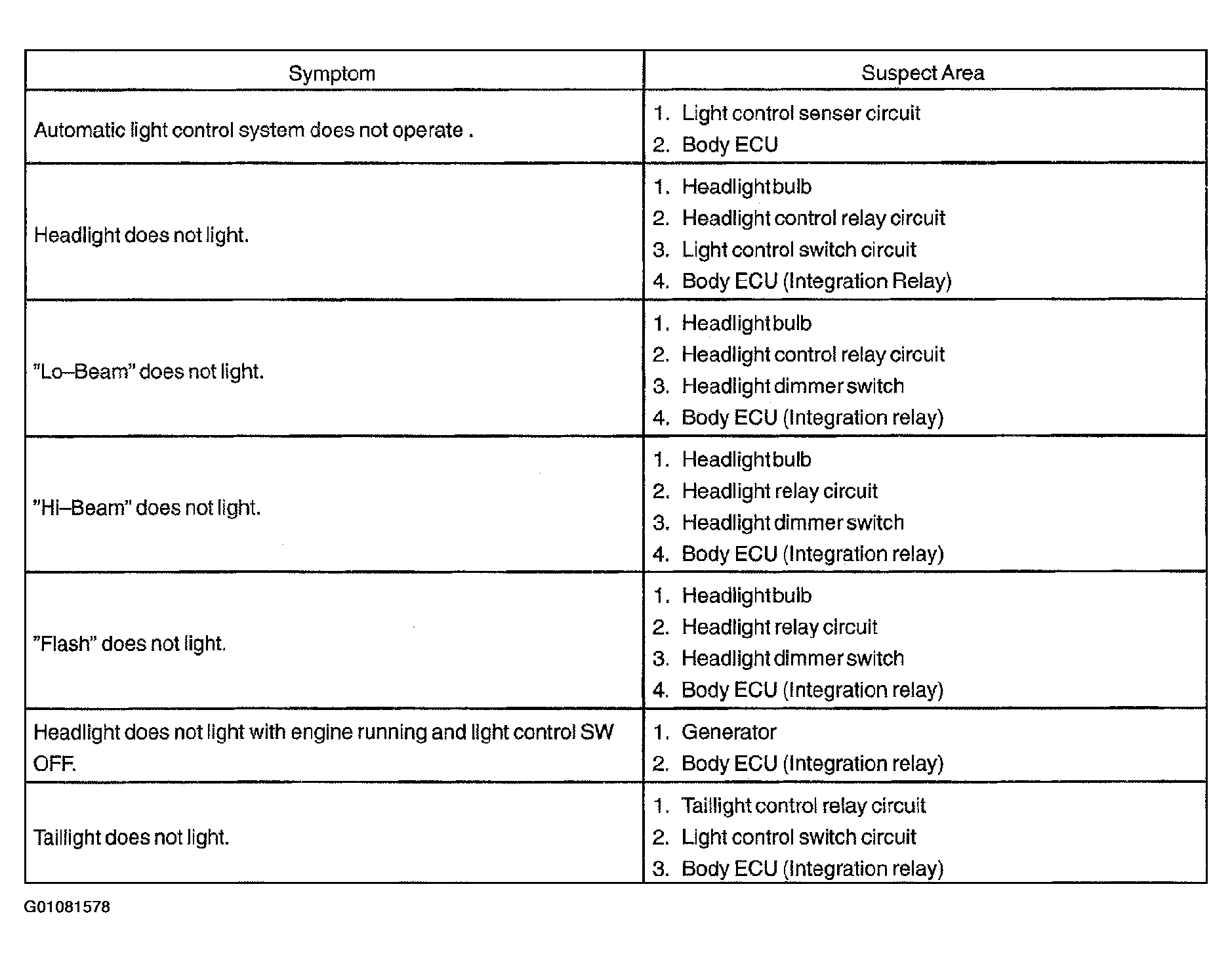

Fig 2: Isolating Headlight And Taillight System Symptoms

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Isolating Auto Turn Off System Symptoms

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

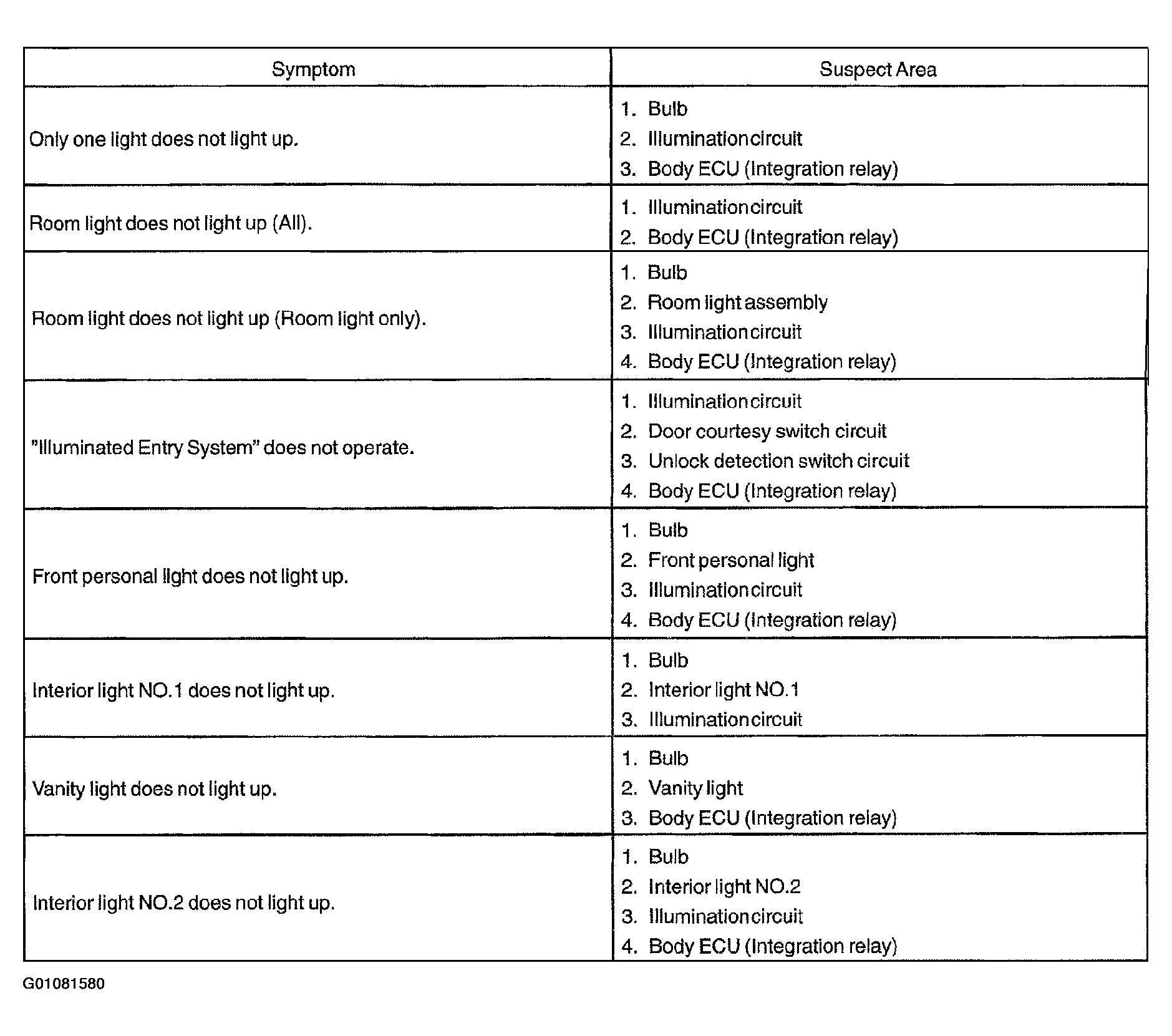

Fig 4: Isolating Interior Light System Symptoms

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

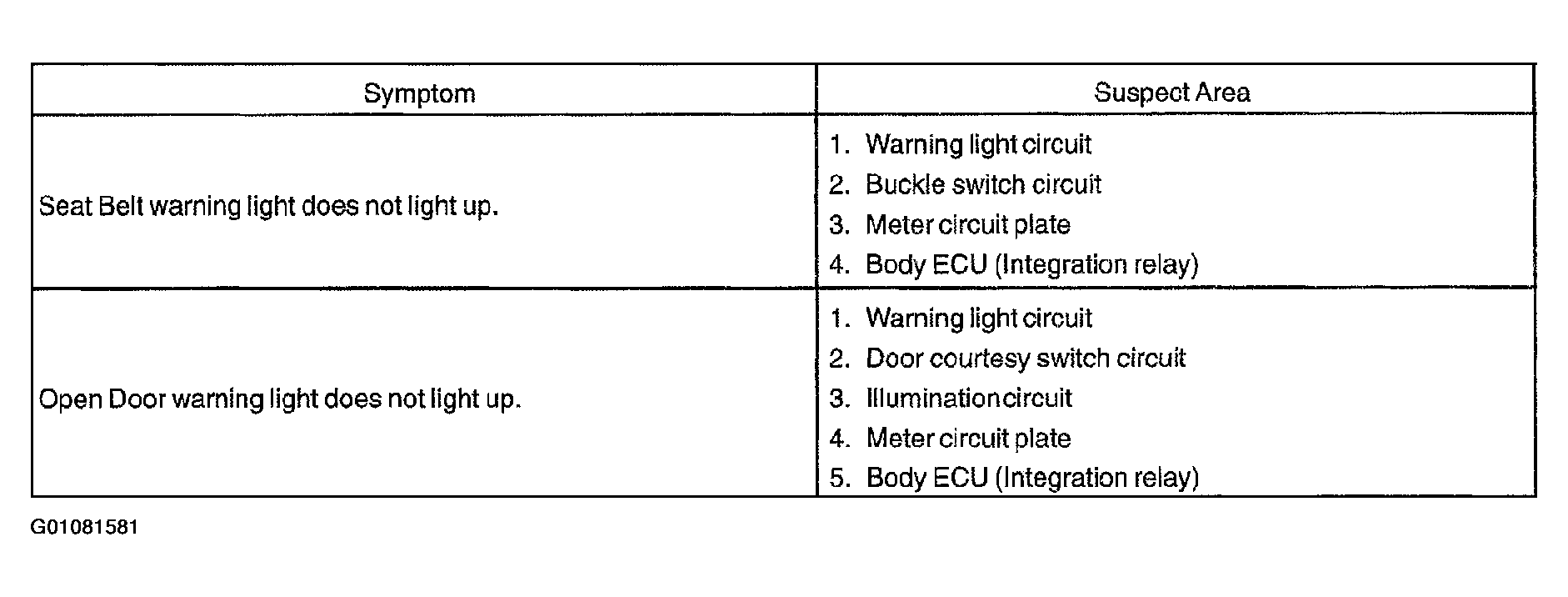

Fig 5: Isolating Combination Meter Symptoms

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

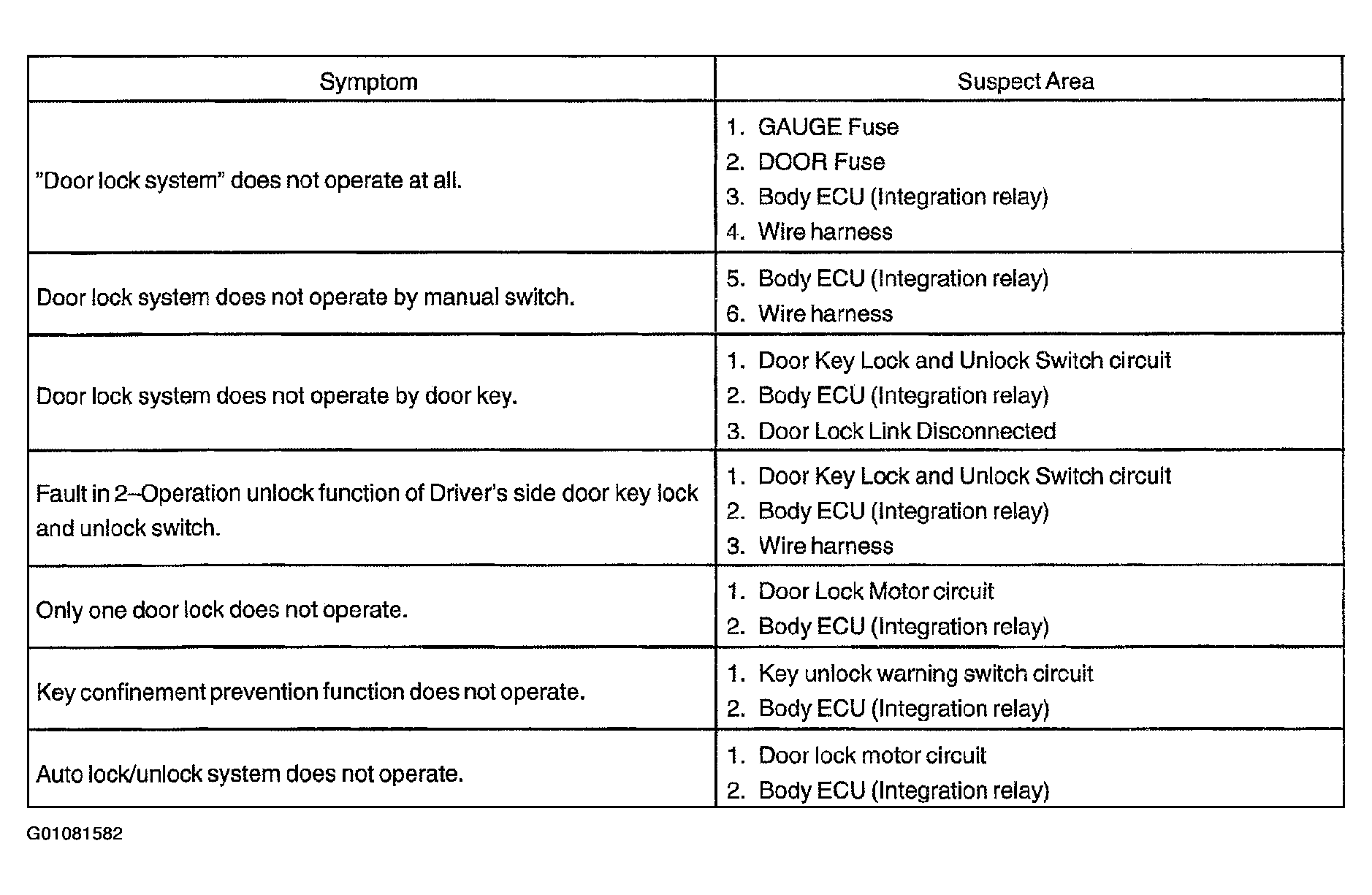

Fig 6: Isolating Power Door Lock Control System Symptoms

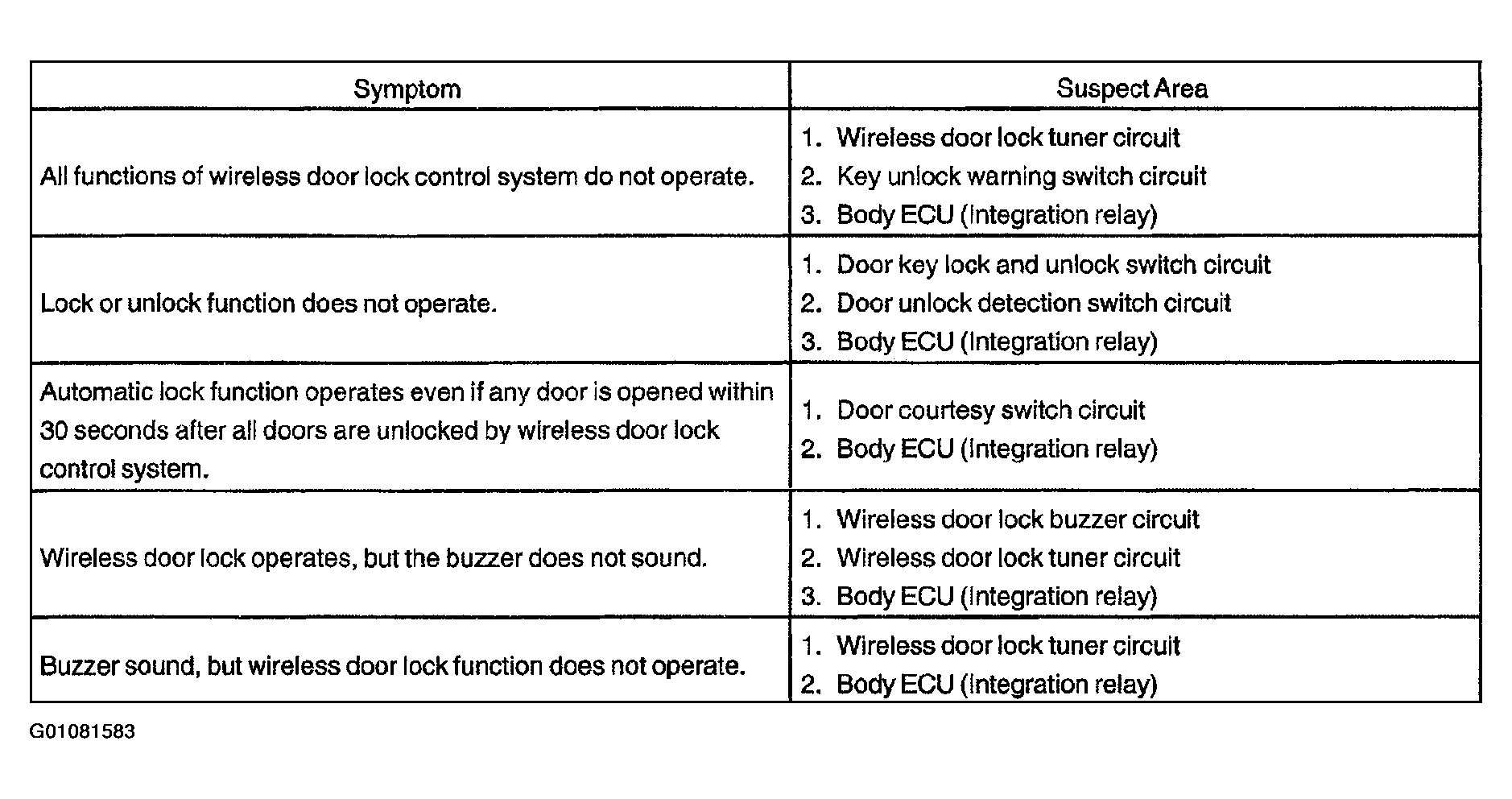

Fig 7: Isolating Wireless Door Lock Control System Symptoms

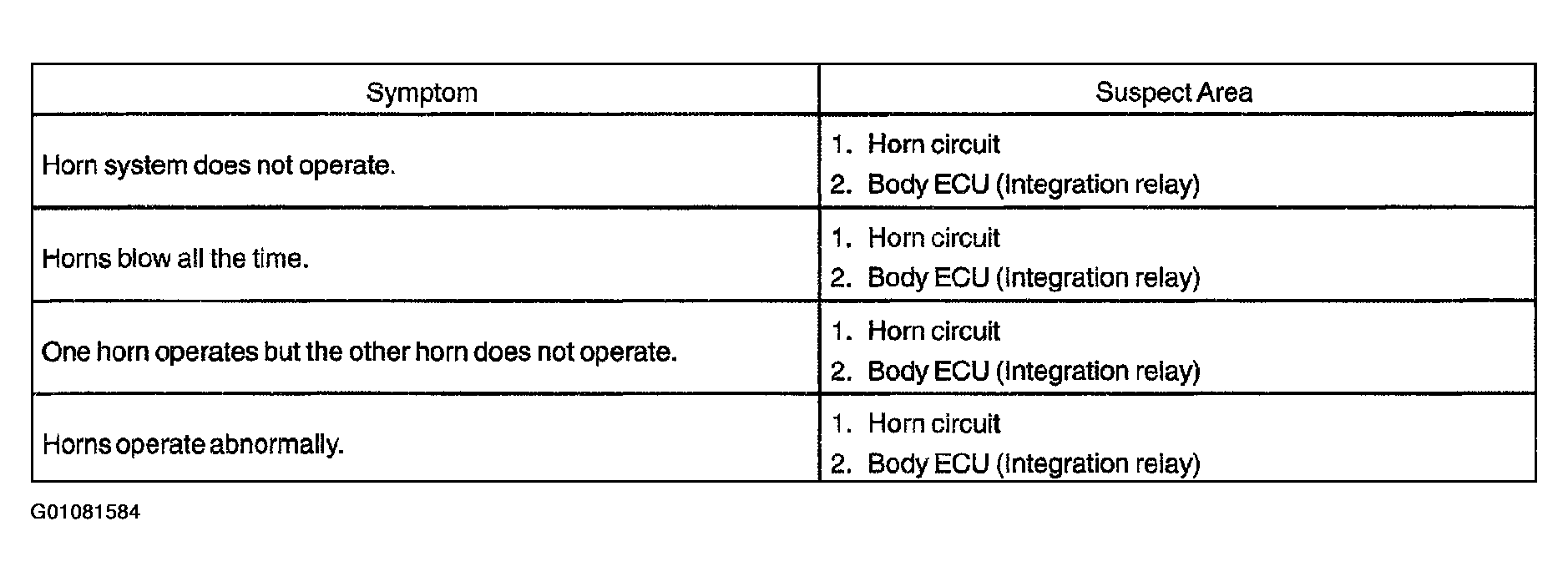

Fig 8: Isolating Horn System Symptoms
