Unlock Detection Switch Circuit: Wiring Diagram

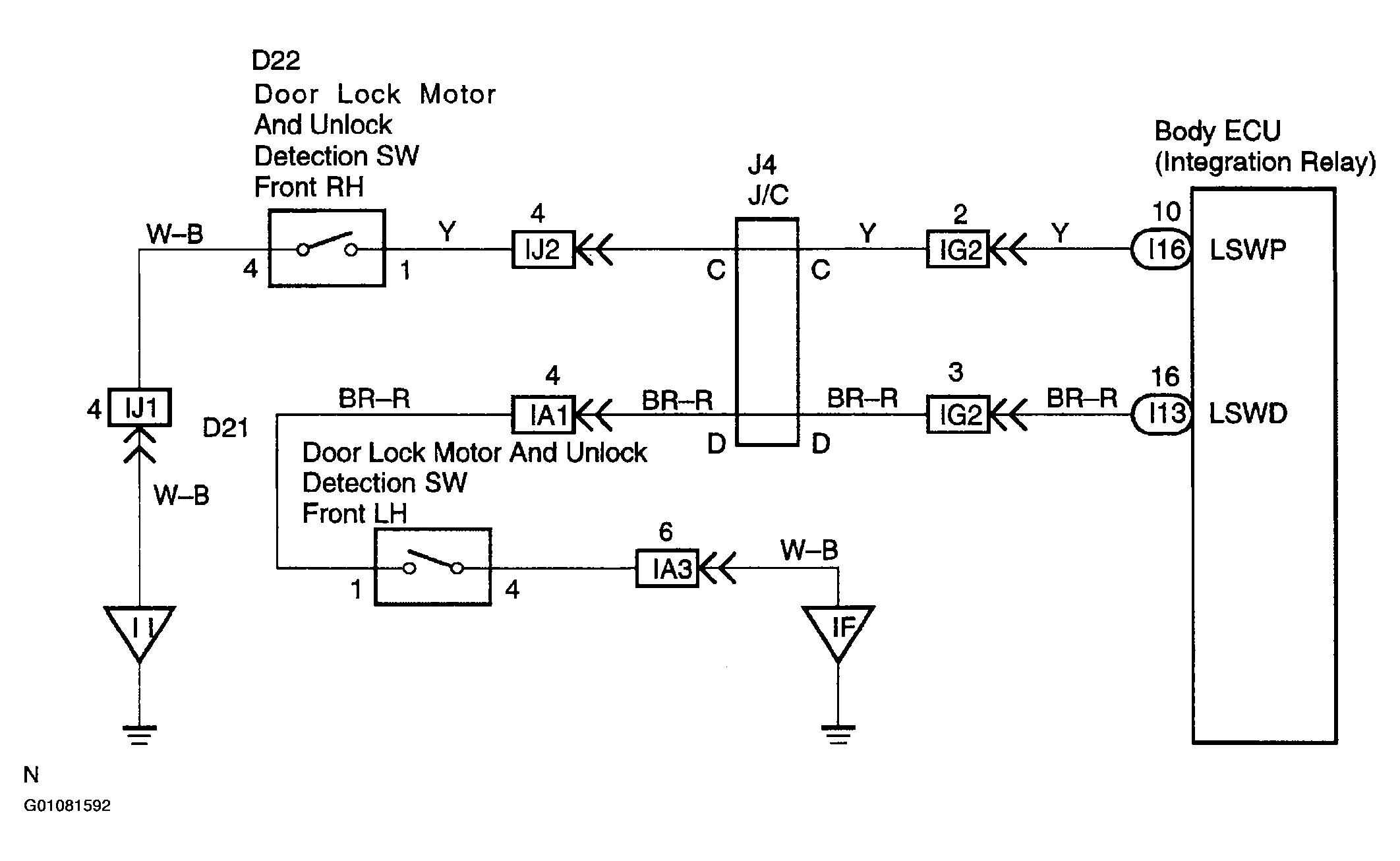

Fig 1: Unlock Detection Switch Circuit

G01081592

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
